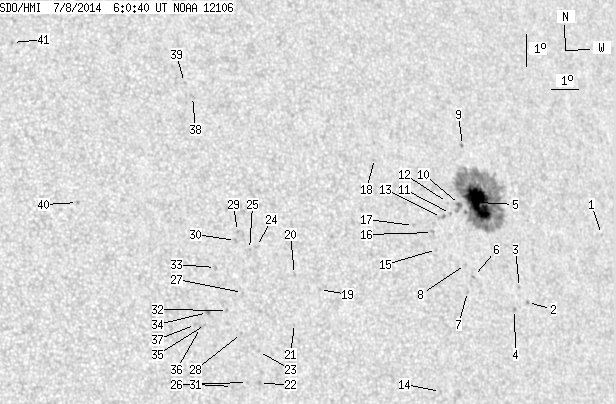

SDO HMI 2014-07-08 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.79 | 267.75 | 28.23 | 167.00 | 14.77 | 260.77 | 35.99 | 289.90 | 0.6057 | -359.8 | -225.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.55 | 13.86 | 266.59 | 41.80 | 286.62 | 0.6777 | -521.0 | -543.6 | |
| 0.00 | 1.54 | 0.00 | 0.98 | 11.89 | 263.17 | 38.38 | 284.49 | 0.6298 | -626.0 | -569.8 | |
| 0.00 | 0.64 | 0.00 | 0.40 | 12.37 | 262.93 | 38.15 | 285.30 | 0.6278 | -717.0 | -610.7 | |
| 0.00 | 1.54 | 0.00 | 0.98 | 11.70 | 262.62 | 37.84 | 284.32 | 0.6222 | -757.0 | -595.8 | |
| 43.97 | 212.60 | 27.72 | 134.34 | 15.05 | 261.81 | 37.03 | 289.88 | 0.6206 | -1115.2 | -297.6 | |
| 0.00 | 1.45 | 0.00 | 0.90 | 12.78 | 261.19 | 36.41 | 286.45 | 0.6057 | -847.0 | -589.2 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 12.32 | 260.88 | 36.10 | 285.80 | 0.6004 | -803.0 | -766.8 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 13.16 | 260.94 | 36.16 | 287.15 | 0.6035 | -674.0 | -570.2 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 16.85 | 261.57 | 36.78 | 292.78 | 0.6238 | -822.0 | -650.7 | |
| 0.82 | 5.91 | 0.51 | 3.68 | 15.02 | 261.06 | 36.27 | 290.11 | 0.6107 | -863.3 | -756.8 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 14.75 | 260.65 | 35.87 | 289.84 | 0.6046 | -739.0 | -643.0 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 15.10 | 260.60 | 35.82 | 290.41 | 0.6051 | -718.0 | -560.2 | |
| 0.00 | 3.27 | 0.00 | 2.02 | 14.64 | 260.28 | 35.50 | 289.80 | 0.5993 | -757.0 | -684.5 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 9.30 | 259.43 | 34.65 | 281.06 | 0.5739 | 560.0 | 446.0 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 13.66 | 259.91 | 35.13 | 288.33 | 0.5912 | -619.0 | -540.6 | |
| 0.00 | 2.18 | 0.00 | 1.34 | 14.19 | 259.85 | 35.07 | 289.23 | 0.5921 | -596.0 | -584.1 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 14.43 | 259.16 | 34.38 | 289.91 | 0.5838 | -667.0 | -611.5 | |
| 0.00 | 0.36 | 0.00 | 0.22 | 16.57 | 258.08 | 33.29 | 293.95 | 0.5779 | 507.0 | 560.0 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 12.58 | 255.38 | 30.59 | 288.27 | 0.5251 | 638.0 | 561.8 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 13.07 | 254.54 | 29.75 | 289.59 | 0.5151 | 659.0 | 530.4 | |
| 0.00 | 0.55 | 0.00 | 0.31 | 11.56 | 254.35 | 29.56 | 286.80 | 0.5069 | 516.0 | 478.8 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 9.76 | 252.91 | 28.13 | 283.79 | 0.4804 | 621.0 | 569.5 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 10.74 | 252.98 | 28.19 | 285.77 | 0.4843 | 695.0 | 530.4 | |
| 0.00 | 2.00 | 0.00 | 1.14 | 13.98 | 253.29 | 28.51 | 291.98 | 0.5015 | 711.0 | 623.2 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 13.89 | 253.03 | 28.25 | 291.97 | 0.4974 | 739.0 | 675.2 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 9.80 | 252.50 | 27.71 | 284.04 | 0.4743 | 690.0 | 547.4 | |
| 0.00 | 0.73 | 0.00 | 0.41 | 12.57 | 252.61 | 27.83 | 289.62 | 0.4857 | 610.0 | 466.5 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 11.31 | 252.44 | 27.65 | 287.17 | 0.4783 | 625.0 | 537.5 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 14.46 | 252.68 | 27.90 | 293.28 | 0.4952 | 670.0 | 601.9 | |
| 0.00 | 1.73 | 0.00 | 0.98 | 14.19 | 252.57 | 27.79 | 292.81 | 0.4923 | 721.0 | 610.7 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 9.70 | 251.96 | 27.18 | 284.02 | 0.4660 | 752.0 | 591.5 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 12.03 | 252.02 | 27.24 | 288.86 | 0.4750 | 698.0 | 416.5 | |
| 0.00 | 1.64 | 0.00 | 0.92 | 13.37 | 251.76 | 26.98 | 291.72 | 0.4770 | 696.0 | 530.3 | |
| 0.00 | 2.27 | 0.00 | 1.27 | 11.99 | 251.32 | 26.54 | 289.16 | 0.4645 | 933.0 | 805.7 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 11.63 | 251.21 | 26.43 | 288.45 | 0.4615 | 648.0 | 534.1 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 11.54 | 251.03 | 26.25 | 288.37 | 0.4584 | 804.0 | 688.8 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 11.64 | 250.86 | 26.08 | 288.66 | 0.4564 | 763.0 | 566.3 | |
| 0.00 | 1.91 | 0.00 | 1.10 | 18.72 | 251.73 | 26.95 | 301.86 | 0.5074 | 571.0 | 446.9 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 19.17 | 251.52 | 26.74 | 302.84 | 0.5078 | 556.0 | 538.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 15.51 | 247.23 | 22.45 | 299.77 | 0.4256 | 887.0 | 781.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 20.60 | 245.65 | 20.87 | 311.56 | 0.4474 | 758.0 | 630.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
