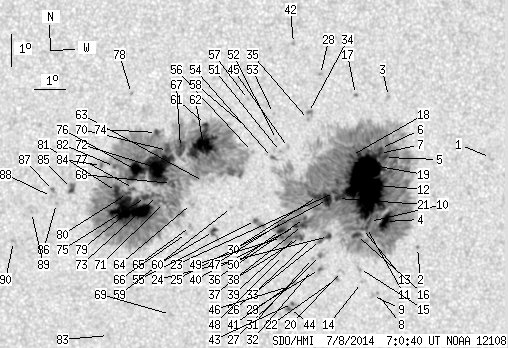

SDO HMI 2014-07-08 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 455.52 | 2484.82 | 238.75 | 1304.19 | -6.91 | 240.07 | 15.84 | 235.55 | 0.3283 | 72.4 | 92.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.82 | 0.00 | 1.54 | -6.16 | 247.28 | 23.05 | 247.00 | 0.4246 | 614.0 | 620.7 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -8.90 | 245.00 | 20.77 | 238.70 | 0.4117 | -702.0 | -638.3 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -4.20 | 243.86 | 19.63 | 248.39 | 0.3618 | -701.0 | -498.9 | |
| 13.45 | 1301.62 | 7.23 | 692.86 | -8.06 | 243.91 | 19.67 | 239.14 | 0.3899 | 1125.9 | 467.7 | |
| 2.36 | -4.00 | 1.26 | -4.00 | -6.07 | 243.79 | 19.55 | 243.61 | 0.3731 | 827.7 | 999999 | |
| 1.00 | -4.00 | 0.53 | -4.00 | -5.79 | 243.65 | 19.41 | 244.13 | 0.3691 | 1067.7 | 999999 | |
| 2.82 | -4.00 | 1.50 | -4.00 | -5.95 | 243.62 | 19.39 | 243.72 | 0.3698 | 1165.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -10.31 | 243.77 | 19.54 | 234.18 | 0.4075 | -840.0 | -698.9 | |
| 0.00 | 2.36 | 0.00 | 1.28 | -10.37 | 243.61 | 19.38 | 233.83 | 0.4059 | -863.0 | -721.2 | |
| 3.63 | -4.00 | 1.95 | -4.00 | -8.05 | 243.38 | 19.15 | 238.48 | 0.3826 | 915.6 | 999999 | |
| 1.27 | -4.00 | 0.68 | -4.00 | -8.23 | 243.29 | 19.06 | 237.95 | 0.3829 | 840.8 | 999999 | |
| 153.64 | -4.00 | 81.92 | -4.00 | -6.90 | 243.20 | 18.97 | 240.92 | 0.3708 | 1596.7 | 999999 | |
| 0.27 | -4.00 | 0.15 | -4.00 | -8.26 | 243.17 | 18.93 | 237.71 | 0.3814 | 885.0 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.34 | -9.95 | 243.22 | 18.99 | 234.15 | 0.3971 | 456.0 | 306.1 | |
| 0.00 | 2.36 | 0.00 | 1.27 | -9.51 | 243.13 | 18.90 | 234.94 | 0.3919 | 716.0 | 628.9 | |
| 4.27 | -4.00 | 2.29 | -4.00 | -8.48 | 242.98 | 18.75 | 236.98 | 0.3807 | 952.2 | 999999 | |
| 0.36 | 1.54 | 0.19 | 0.81 | -4.11 | 242.79 | 18.56 | 247.48 | 0.3451 | -588.2 | -421.2 | |
| 1.54 | -4.00 | 0.82 | -4.00 | -5.99 | 242.71 | 18.48 | 242.51 | 0.3569 | 1273.4 | 999999 | |
| 2.36 | -4.00 | 1.25 | -4.00 | -6.17 | 242.69 | 18.45 | 242.02 | 0.3579 | 1468.7 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.41 | -9.59 | 242.55 | 18.32 | 233.92 | 0.3850 | 595.0 | 532.2 | |
| 2.54 | -4.00 | 1.35 | -4.00 | -7.31 | 242.31 | 18.08 | 238.73 | 0.3616 | 1226.1 | 999999 | |
| 0.45 | 1.82 | 0.24 | 0.97 | -9.81 | 242.40 | 18.16 | 233.24 | 0.3851 | 913.2 | 736.5 | |
| 1.09 | -4.00 | 0.58 | -4.00 | -7.12 | 242.21 | 17.97 | 239.04 | 0.3586 | 1193.3 | 999999 | |
| 2.36 | -4.00 | 1.26 | -4.00 | -8.49 | 242.07 | 17.84 | 235.64 | 0.3686 | 912.4 | 999999 | |
| 9.81 | -4.00 | 5.20 | -4.00 | -7.34 | 241.99 | 17.75 | 238.21 | 0.3573 | 1352.2 | 999999 | |
| 1.27 | -4.00 | 0.68 | -4.00 | -8.61 | 241.82 | 17.58 | 234.99 | 0.3662 | 923.6 | 999999 | |
| 0.00 | 3.91 | 0.00 | 2.08 | -9.08 | 241.84 | 17.61 | 233.97 | 0.3709 | 1125.0 | 823.6 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -3.47 | 241.65 | 17.42 | 247.97 | 0.3237 | 875.0 | 699.4 | |
| 0.82 | 3.36 | 0.44 | 1.80 | -9.51 | 241.83 | 17.60 | 233.00 | 0.3749 | 844.1 | 696.8 | |
| 4.36 | -4.00 | 2.31 | -4.00 | -7.24 | 241.66 | 17.43 | 237.98 | 0.3520 | 1288.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -9.16 | 241.59 | 17.35 | 233.38 | 0.3684 | 889.0 | 735.4 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -9.51 | 241.60 | 17.37 | 232.65 | 0.3719 | 885.0 | 741.7 | |
| 0.00 | 2.27 | 0.00 | 1.21 | -8.54 | 241.56 | 17.32 | 234.74 | 0.3621 | 645.0 | 311.0 | |
| 0.55 | 3.54 | 0.29 | 1.86 | -4.63 | 241.29 | 17.06 | 244.23 | 0.3261 | -769.8 | -435.8 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -4.85 | 241.30 | 17.06 | 243.65 | 0.3277 | 312.0 | 164.9 | |
| 1.18 | -4.00 | 0.62 | -4.00 | -7.91 | 241.27 | 17.04 | 235.76 | 0.3525 | 965.9 | 999999 | |
| 2.09 | -4.00 | 1.11 | -4.00 | -8.13 | 241.22 | 16.98 | 235.16 | 0.3538 | -253.0 | 999999 | |
| 1.73 | -4.00 | 0.91 | -4.00 | -8.50 | 241.17 | 16.93 | 234.22 | 0.3566 | 1023.4 | 999999 | |
| 0.27 | -4.00 | 0.14 | -4.00 | -8.47 | 241.04 | 16.80 | 234.09 | 0.3546 | 979.3 | 999999 | |
| 1.73 | -4.00 | 0.91 | -4.00 | -8.15 | 240.99 | 16.76 | 234.74 | 0.3510 | -281.8 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.40 | -9.87 | 241.04 | 16.81 | 230.95 | 0.3683 | 943.0 | 818.1 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -2.50 | 240.78 | 16.54 | 249.84 | 0.3043 | 900.0 | 747.4 | |
| 0.64 | 6.00 | 0.34 | 3.20 | -10.56 | 241.01 | 16.78 | 229.46 | 0.3750 | 1115.1 | 769.2 | |
| 1.18 | -43.00 | 0.63 | -43.00 | -10.72 | 240.92 | 16.69 | 228.99 | 0.3755 | 875.5 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -5.70 | 240.68 | 16.45 | 240.45 | 0.3253 | 914.0 | 771.5 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -10.03 | 240.85 | 16.62 | 230.32 | 0.3675 | 871.0 | 687.3 | |
| 1.27 | -4.00 | 0.67 | -4.00 | -7.99 | 240.60 | 16.36 | 234.49 | 0.3442 | 934.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -9.05 | 240.65 | 16.41 | 232.10 | 0.3551 | 757.0 | 590.2 | |
| 1.45 | -4.00 | 0.77 | -4.00 | -8.49 | 240.56 | 16.32 | 233.24 | 0.3484 | -426.5 | 999999 | |
| 3.09 | -4.00 | 1.63 | -4.00 | -8.27 | 240.51 | 16.28 | 233.69 | 0.3458 | -512.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -5.82 | 240.43 | 16.19 | 239.74 | 0.3226 | 947.0 | 765.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -5.45 | 240.29 | 16.06 | 240.55 | 0.3176 | 669.0 | 486.2 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -4.64 | 240.18 | 15.94 | 242.64 | 0.3096 | 760.0 | 655.6 | |
| 0.82 | 3.09 | 0.43 | 1.62 | -6.00 | 240.18 | 15.94 | 238.86 | 0.3206 | -371.2 | -213.5 | |
| 1.27 | 7.81 | 0.67 | 4.11 | -7.94 | 239.70 | 15.47 | 233.07 | 0.3318 | -887.1 | -543.0 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -5.80 | 239.54 | 15.30 | 238.35 | 0.3098 | 207.0 | 204.6 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -4.20 | 239.37 | 15.14 | 242.75 | 0.2943 | 742.0 | 596.0 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -5.06 | 239.33 | 15.09 | 240.12 | 0.3005 | -625.0 | -414.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -7.52 | 238.92 | 14.69 | 232.68 | 0.3174 | -708.0 | -461.7 | |
| 2.45 | 7.27 | 1.28 | 3.80 | -8.26 | 238.37 | 14.14 | 229.79 | 0.3179 | -986.6 | -693.2 | |
| 2.54 | 1079.38 | 1.31 | 556.72 | -4.94 | 238.03 | 13.79 | 238.18 | 0.2808 | 661.5 | -382.0 | |
| 40.16 | -61.00 | 20.75 | -61.00 | -5.59 | 237.98 | 13.75 | 236.15 | 0.2860 | -1217.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -6.70 | 238.01 | 13.77 | 233.07 | 0.2971 | -27.0 | -6.7 | |
| 0.00 | 3.63 | 0.00 | 1.89 | -7.38 | 237.65 | 13.41 | 230.53 | 0.2993 | -541.0 | -528.9 | |
| 0.00 | 3.18 | 0.00 | 1.65 | -8.09 | 237.64 | 13.41 | 228.69 | 0.3069 | -729.0 | -493.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -8.31 | 237.52 | 13.29 | 227.91 | 0.3078 | -722.0 | -542.6 | |
| 11.99 | -61.00 | 6.18 | -61.00 | -5.64 | 237.26 | 13.02 | 234.55 | 0.2765 | -972.2 | 999999 | |
| 4.45 | -61.00 | 2.30 | -61.00 | -6.75 | 237.00 | 12.77 | 230.83 | 0.2843 | -752.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -10.84 | 237.11 | 12.87 | 221.37 | 0.3325 | -670.0 | -507.8 | |
| 3.27 | -61.00 | 1.68 | -61.00 | -5.73 | 236.85 | 12.62 | 233.43 | 0.2718 | -948.8 | 999999 | |
| 1.45 | -61.00 | 0.75 | -61.00 | -7.33 | 236.80 | 12.56 | 228.79 | 0.2880 | -688.9 | 999999 | |
| 53.51 | -61.00 | 27.56 | -61.00 | -6.28 | 236.58 | 12.35 | 231.21 | 0.2739 | -1242.6 | 999999 | |
| 1.18 | -61.00 | 0.61 | -61.00 | -7.11 | 236.57 | 12.34 | 228.86 | 0.2827 | -717.8 | 999999 | |
| 1.82 | -61.00 | 0.93 | -61.00 | -5.16 | 236.49 | 12.26 | 234.36 | 0.2614 | -857.9 | 999999 | |
| 3.54 | -61.00 | 1.83 | -61.00 | -7.17 | 236.19 | 11.96 | 227.83 | 0.2786 | -1111.2 | 999999 | |
| 20.08 | -61.00 | 10.32 | -61.00 | -6.33 | 235.89 | 11.66 | 229.45 | 0.2655 | -1455.0 | 999999 | |
| 0.91 | -61.00 | 0.47 | -61.00 | -6.89 | 235.81 | 11.58 | 227.68 | 0.2706 | -1173.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -3.95 | 235.69 | 11.46 | 236.56 | 0.2386 | -858.0 | -666.2 | |
| 69.05 | -61.00 | 35.59 | -61.00 | -7.54 | 235.73 | 11.50 | 225.74 | 0.2772 | -1373.5 | 999999 | |
| 1.64 | -61.00 | 0.84 | -61.00 | -7.04 | 235.63 | 11.39 | 226.80 | 0.2701 | -1253.3 | 999999 | |
| 6.27 | -61.00 | 3.22 | -61.00 | -6.97 | 235.28 | 11.05 | 226.10 | 0.2651 | -1353.0 | 999999 | |
| 0.82 | -61.00 | 0.42 | -61.00 | -6.20 | 235.20 | 10.97 | 228.10 | 0.2552 | -988.9 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -11.47 | 235.17 | 10.93 | 215.60 | 0.3207 | -718.0 | -567.5 | |
| 0.45 | -61.00 | 0.23 | -61.00 | -6.16 | 234.79 | 10.56 | 227.13 | 0.2497 | -1091.8 | 999999 | |
| 3.00 | 6.00 | 1.53 | 3.07 | -6.86 | 233.87 | 9.64 | 222.51 | 0.2471 | -1160.1 | -917.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -7.32 | 233.42 | 9.18 | 219.89 | 0.2479 | -917.0 | -766.2 | |
| 0.00 | 2.82 | 0.00 | 1.44 | -6.92 | 233.31 | 9.08 | 220.65 | 0.2415 | -1071.0 | -937.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -7.10 | 233.26 | 9.02 | 219.97 | 0.2433 | -985.0 | -740.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.59 | 232.64 | 8.41 | 216.75 | 0.2433 | -967.0 | -832.4 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -8.49 | 232.10 | 7.87 | 212.86 | 0.2506 | -786.0 | -748.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
