SDO HMI 2014-07-08 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.45 | 38.14 | 1.85 | 20.99 | -18.24 | 233.13 | 8.89 | 202.28 | 0.4268 | 20.8 | -43.9 | |
|
previous
or next observation for the same group /

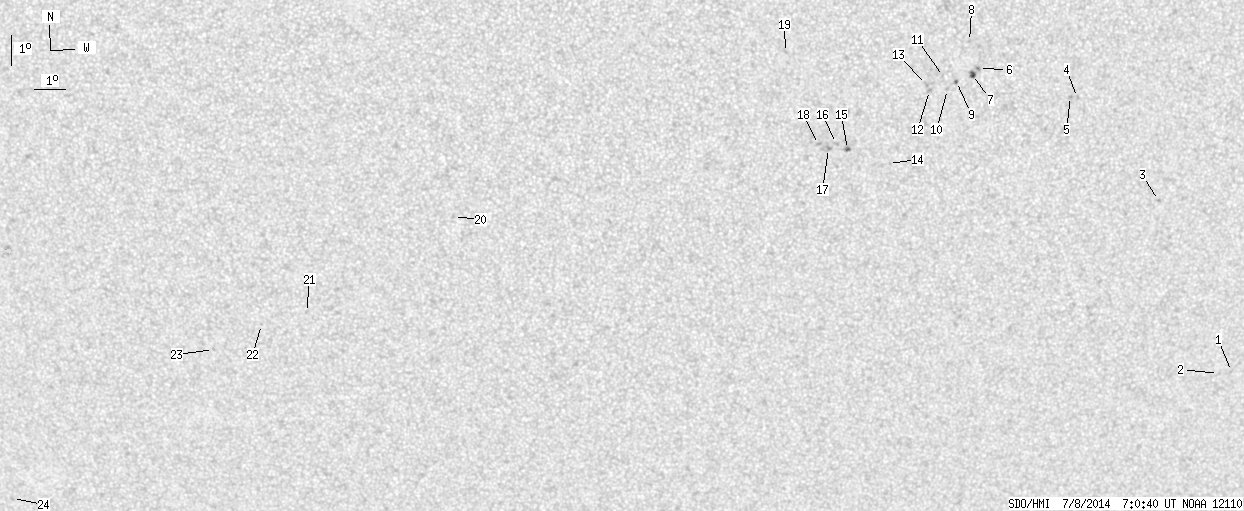

back to the solar disc SDO HMI 2014-07-08 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.84 | -25.37 | 247.22 | 22.98 | 216.30 | 0.5982 | -665.0 | -541.1 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -25.42 | 246.75 | 22.52 | 215.70 | 0.5950 | -335.0 | -424.1 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -19.47 | 243.69 | 19.45 | 218.90 | 0.5020 | 837.0 | 723.7 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -16.04 | 240.61 | 16.37 | 219.02 | 0.4320 | 655.0 | 476.4 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -16.00 | 240.37 | 16.14 | 218.68 | 0.4293 | 802.0 | 672.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -15.04 | 237.30 | 13.06 | 214.40 | 0.3879 | 1004.0 | 882.0 | |
| 2.09 | 3.73 | 1.12 | 2.00 | -15.23 | 237.11 | 12.88 | 213.74 | 0.3888 | 880.1 | 693.5 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -14.17 | 236.95 | 12.72 | 215.04 | 0.3733 | 765.0 | 692.3 | |
| 0.45 | 1.54 | 0.24 | 0.83 | -15.45 | 236.61 | 12.37 | 212.38 | 0.3872 | 794.4 | 694.1 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -15.70 | 236.33 | 12.10 | 211.45 | 0.3883 | 708.0 | 579.8 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -15.28 | 236.18 | 11.94 | 211.72 | 0.3813 | 558.0 | 435.5 | |
| 0.00 | 2.27 | 0.00 | 1.22 | -15.73 | 235.75 | 11.52 | 210.18 | 0.3838 | 765.0 | 540.4 | |
| 0.00 | 2.09 | 0.00 | 1.12 | -15.53 | 235.64 | 11.41 | 210.22 | 0.3803 | 768.0 | 628.6 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -18.09 | 234.56 | 10.32 | 204.76 | 0.4083 | 210.0 | 254.2 | |
| 0.91 | 2.27 | 0.49 | 1.22 | -17.61 | 233.20 | 8.96 | 202.32 | 0.3927 | -884.5 | -764.9 | |
| 0.00 | 2.36 | 0.00 | 1.27 | -17.41 | 232.83 | 8.60 | 201.70 | 0.3875 | -849.0 | -674.6 | |
| 0.00 | 3.18 | 0.00 | 1.71 | -17.57 | 232.58 | 8.35 | 200.96 | 0.3884 | -914.0 | -770.4 | |
| 0.00 | 2.18 | 0.00 | 1.17 | -17.44 | 232.25 | 8.02 | 200.33 | 0.3846 | -817.0 | -724.8 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -14.45 | 231.09 | 6.85 | 200.44 | 0.3323 | -840.0 | -663.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.77 | 220.51 | -3.73 | 171.25 | 0.4035 | -65.0 | -99.2 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -23.03 | 215.52 | -8.72 | 162.72 | 0.4713 | -731.0 | -589.2 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -23.46 | 213.97 | -10.26 | 160.23 | 0.4850 | -660.0 | -504.7 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -24.34 | 212.26 | -11.97 | 158.01 | 0.5066 | -740.0 | -650.0 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -29.76 | 204.29 | -19.95 | 151.58 | 0.6245 | -591.0 | -495.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
