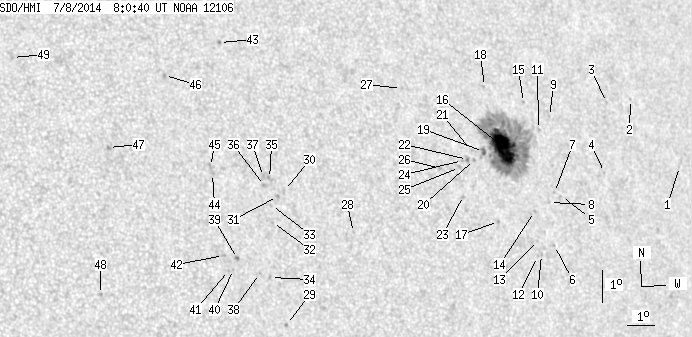

SDO HMI 2014-07-08 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.43 | 302.68 | 34.81 | 191.41 | 14.86 | 260.71 | 37.03 | 289.69 | 0.6193 | -415.1 | -159.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.26 | 14.15 | 269.09 | 45.40 | 286.20 | 0.7213 | 419.0 | 377.5 | |
| 0.00 | 0.82 | 0.00 | 0.57 | 16.32 | 267.49 | 43.81 | 289.58 | 0.7074 | -407.0 | -362.9 | |
| 0.00 | 1.09 | 0.00 | 0.75 | 16.27 | 266.43 | 42.74 | 289.81 | 0.6948 | -562.0 | -437.9 | |
| 0.00 | 0.73 | 0.00 | 0.49 | 14.10 | 265.80 | 42.11 | 286.89 | 0.6820 | -534.0 | -456.6 | |
| 0.00 | 0.55 | 0.00 | 0.36 | 13.44 | 263.86 | 40.17 | 286.40 | 0.6563 | -521.0 | -411.0 | |
| 0.00 | 1.18 | 0.00 | 0.76 | 11.94 | 263.29 | 39.60 | 284.27 | 0.6457 | -667.0 | -463.8 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 13.57 | 263.60 | 39.91 | 286.68 | 0.6533 | -533.0 | -425.1 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 13.27 | 263.33 | 39.65 | 286.29 | 0.6492 | -670.0 | -476.5 | |
| 0.00 | 0.82 | 0.00 | 0.54 | 15.93 | 263.92 | 40.23 | 290.10 | 0.6636 | -486.0 | -418.6 | |
| 0.00 | 1.36 | 0.00 | 0.87 | 11.69 | 262.72 | 39.03 | 284.01 | 0.6378 | -599.0 | -600.3 | |
| 0.00 | 1.64 | 0.00 | 1.07 | 15.55 | 263.37 | 39.68 | 289.71 | 0.6557 | 546.0 | 513.9 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 11.63 | 262.55 | 38.86 | 283.96 | 0.6355 | -594.0 | -561.8 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 12.12 | 262.63 | 38.94 | 284.70 | 0.6376 | -780.0 | -615.7 | |
| 0.00 | 1.27 | 0.00 | 0.82 | 13.02 | 262.67 | 38.99 | 286.08 | 0.6402 | -618.0 | -571.2 | |
| 0.00 | 0.82 | 0.00 | 0.53 | 16.41 | 262.96 | 39.27 | 291.14 | 0.6533 | 479.0 | 469.7 | |
| 52.70 | 234.23 | 33.72 | 150.22 | 15.05 | 261.83 | 38.15 | 289.46 | 0.6349 | -1088.4 | -243.0 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 12.77 | 261.19 | 37.50 | 286.10 | 0.6202 | -795.0 | -673.2 | |
| 0.00 | 0.45 | 0.00 | 0.29 | 16.97 | 261.50 | 37.82 | 292.53 | 0.6371 | -877.0 | -765.2 | |
| 1.73 | 5.27 | 1.09 | 3.33 | 14.95 | 261.01 | 37.33 | 289.61 | 0.6241 | -885.4 | -754.8 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 14.72 | 260.61 | 36.92 | 289.38 | 0.6182 | -824.0 | -695.8 | |
| 0.00 | 0.82 | 0.00 | 0.51 | 15.00 | 260.55 | 36.86 | 289.85 | 0.6183 | -512.0 | -493.3 | |
| 0.00 | 2.45 | 0.00 | 1.54 | 14.73 | 260.34 | 36.65 | 289.50 | 0.6146 | -935.0 | -755.1 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 13.62 | 259.97 | 36.28 | 287.85 | 0.6064 | -717.0 | -631.4 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 14.71 | 260.13 | 36.45 | 289.54 | 0.6119 | -693.0 | -554.6 | |
| 0.00 | 1.73 | 0.00 | 1.08 | 14.49 | 259.98 | 36.29 | 289.26 | 0.6092 | -714.0 | -557.2 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 14.49 | 259.23 | 35.55 | 289.53 | 0.5994 | -828.0 | -665.5 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 17.03 | 258.23 | 34.54 | 294.08 | 0.5960 | 647.0 | 547.9 | |
| 0.00 | 0.73 | 0.00 | 0.43 | 12.63 | 255.64 | 31.95 | 287.78 | 0.5444 | 517.0 | 447.0 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 9.89 | 252.89 | 29.20 | 283.64 | 0.4966 | 775.0 | 658.6 | |
| 0.00 | 1.64 | 0.00 | 0.95 | 14.01 | 253.32 | 29.63 | 291.40 | 0.5172 | 630.0 | 520.3 | |
| 0.00 | 1.82 | 0.00 | 1.05 | 13.83 | 253.04 | 29.35 | 291.22 | 0.5126 | 710.0 | 582.6 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 13.03 | 252.75 | 29.06 | 289.86 | 0.5052 | 670.0 | 470.9 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 13.56 | 252.79 | 29.10 | 290.84 | 0.5079 | 683.0 | 488.6 | |
| 0.00 | 1.64 | 0.00 | 0.93 | 11.34 | 252.48 | 28.79 | 286.70 | 0.4949 | 673.0 | 519.8 | |
| 0.00 | 2.73 | 0.00 | 1.57 | 14.40 | 252.83 | 29.14 | 292.39 | 0.5122 | 649.0 | 530.2 | |
| 0.00 | 2.73 | 0.00 | 1.57 | 14.19 | 252.62 | 28.93 | 292.12 | 0.5083 | 794.0 | 654.6 | |
| 0.00 | 3.36 | 0.00 | 1.93 | 14.47 | 252.63 | 28.94 | 292.64 | 0.5097 | 747.0 | 383.6 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 11.48 | 252.10 | 28.41 | 287.14 | 0.4899 | 631.0 | 510.1 | |
| 0.00 | 1.91 | 0.00 | 1.08 | 11.96 | 251.38 | 27.69 | 288.47 | 0.4812 | 860.0 | 787.0 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 11.63 | 251.20 | 27.51 | 287.88 | 0.4773 | 832.0 | 645.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 11.60 | 251.02 | 27.33 | 287.92 | 0.4746 | 872.0 | 741.2 | |
| 0.00 | 1.64 | 0.00 | 0.92 | 12.07 | 250.90 | 27.21 | 288.94 | 0.4746 | 857.0 | 721.4 | |
| 0.00 | 1.64 | 0.00 | 0.95 | 18.70 | 251.72 | 28.04 | 300.93 | 0.5211 | 670.0 | 564.9 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 14.61 | 250.82 | 27.14 | 294.06 | 0.4853 | 195.0 | 300.6 | |
| 0.00 | 2.27 | 0.00 | 1.29 | 14.83 | 250.78 | 27.10 | 294.51 | 0.4859 | 770.0 | 585.2 | |
| 0.00 | 1.82 | 0.00 | 1.03 | 17.72 | 249.57 | 25.89 | 300.93 | 0.4868 | 656.0 | 572.5 | |
| 0.00 | 2.09 | 0.00 | 1.15 | 15.52 | 247.30 | 23.62 | 298.66 | 0.4417 | 930.0 | 726.7 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 10.99 | 246.56 | 22.88 | 289.18 | 0.4057 | 707.0 | 582.0 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 18.42 | 244.36 | 20.67 | 307.70 | 0.4251 | 656.0 | 490.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
