SDO HMI 2014-07-08 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.36 | 145.89 | 35.90 | 139.46 | 9.24 | 164.81 | -58.88 | 81.39 | 0.8563 | -262.1 | -32.5 | |
|
previous
or next observation for the same group /

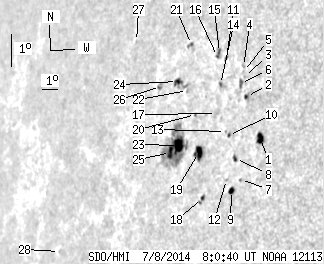

back to the solar disc SDO HMI 2014-07-08 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.63 | 7.90 | 4.85 | 6.80 | 9.31 | 168.76 | -54.93 | 81.18 | 0.8195 | -656.5 | -381.0 | |
| 0.91 | 2.91 | 0.80 | 2.57 | 10.55 | 167.67 | -56.01 | 79.73 | 0.8306 | -537.2 | -480.0 | |
| 0.00 | 0.91 | 0.00 | 0.81 | 11.15 | 167.39 | -56.30 | 79.02 | 0.8336 | -603.0 | -496.6 | |
| 0.00 | 1.36 | 0.00 | 1.22 | 11.45 | 167.24 | -56.45 | 78.67 | 0.8351 | -538.0 | -418.1 | |
| 0.00 | 0.27 | 0.00 | 0.24 | 11.30 | 167.29 | -56.40 | 78.84 | 0.8346 | -429.0 | -417.7 | |
| 0.00 | 3.45 | 0.00 | 3.09 | 10.93 | 167.23 | -56.46 | 79.30 | 0.8350 | -449.0 | -341.0 | |
| 0.00 | 1.18 | 0.00 | 1.04 | 8.00 | 167.95 | -55.74 | 82.79 | 0.8271 | 477.0 | 399.3 | |
| 1.09 | 2.54 | 0.97 | 2.26 | 8.63 | 167.54 | -56.15 | 82.05 | 0.8312 | -290.5 | -244.4 | |
| 2.63 | 4.45 | 2.33 | 3.94 | 7.64 | 167.53 | -56.16 | 83.24 | 0.8311 | 579.3 | 354.6 | |
| 0.55 | 1.64 | 0.49 | 1.47 | 9.31 | 166.98 | -56.70 | 81.25 | 0.8366 | -344.0 | -316.6 | |
| 0.55 | 1.73 | 0.50 | 1.59 | 11.68 | 166.19 | -57.49 | 78.47 | 0.8450 | -379.3 | -412.8 | |
| 0.00 | 1.27 | 0.00 | 1.14 | 7.96 | 167.18 | -56.51 | 82.86 | 0.8345 | 254.0 | 159.0 | |
| 0.00 | 0.73 | 0.00 | 0.66 | 9.42 | 166.79 | -56.90 | 81.12 | 0.8386 | -273.0 | -207.2 | |
| 0.00 | 1.45 | 0.00 | 1.34 | 10.84 | 166.11 | -57.58 | 79.47 | 0.8454 | 502.0 | 479.8 | |
| 0.55 | 4.18 | 0.51 | 3.90 | 11.81 | 165.74 | -57.95 | 78.34 | 0.8492 | -379.7 | -317.4 | |
| 0.55 | -15.00 | 0.51 | -15.00 | 11.68 | 165.66 | -58.03 | 78.49 | 0.8498 | -382.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.42 | 9.94 | 166.13 | -57.56 | 80.53 | 0.8448 | 280.0 | 231.8 | |
| 1.00 | 3.54 | 0.92 | 3.28 | 7.31 | 165.94 | -57.74 | 83.65 | 0.8460 | 591.3 | 386.8 | |
| 8.09 | 11.90 | 7.58 | 11.16 | 8.70 | 165.40 | -58.29 | 82.02 | 0.8512 | -622.4 | -311.0 | |
| 0.00 | 0.91 | 0.00 | 0.86 | 9.85 | 164.92 | -58.77 | 80.68 | 0.8558 | 550.0 | 565.6 | |
| 0.45 | 2.54 | 0.44 | 2.50 | 11.96 | 163.98 | -59.70 | 78.26 | 0.8647 | 511.6 | 478.7 | |
| 0.00 | 1.45 | 0.00 | 1.41 | 10.55 | 164.22 | -59.47 | 79.89 | 0.8622 | 643.0 | 526.7 | |
| 9.27 | 73.41 | 9.01 | 71.84 | 8.85 | 164.16 | -59.53 | 81.87 | 0.8623 | -786.2 | -130.0 | |
| 1.91 | 9.09 | 1.89 | 8.96 | 10.79 | 163.52 | -60.17 | 79.64 | 0.8683 | 622.2 | 529.2 | |
| 5.18 | -23.00 | 5.10 | -23.00 | 8.61 | 163.73 | -59.96 | 82.15 | 0.8660 | -376.0 | 999999 | |
| 0.00 | 3.54 | 0.00 | 3.63 | 10.58 | 162.50 | -61.19 | 79.92 | 0.8767 | 662.0 | 489.3 | |
| 0.00 | 1.09 | 0.00 | 1.19 | 11.86 | 160.40 | -63.29 | 78.54 | 0.8938 | -164.0 | -121.0 | |
| 0.00 | 0.91 | 0.00 | 1.14 | 5.19 | 156.85 | -66.84 | 85.92 | 0.9196 | 385.0 | 359.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
