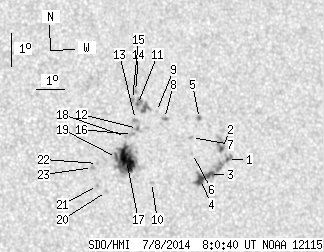

SDO HMI 2014-07-08 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.52 | 136.20 | 23.38 | 76.94 | 7.11 | 252.22 | 28.53 | 278.20 | 0.4808 | 440.3 | 89.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.64 | 29.53 | 0.37 | 16.98 | 6.82 | 254.76 | 31.08 | 277.17 | 0.5186 | -906.9 | -750.6 | |
| 1.27 | 9.45 | 0.73 | 5.46 | 7.16 | 254.58 | 30.89 | 277.86 | 0.5162 | -1082.2 | -761.9 | |
| 3.45 | -1.00 | 1.98 | -1.00 | 6.39 | 254.09 | 30.40 | 276.41 | 0.5081 | -934.1 | 999999 | |
| 5.72 | -1.00 | 3.28 | -1.00 | 6.24 | 253.76 | 30.07 | 276.17 | 0.5030 | -1007.7 | 999999 | |
| 0.45 | 2.09 | 0.26 | 1.20 | 8.11 | 253.86 | 30.18 | 279.84 | 0.5071 | -946.6 | -801.2 | |
| 0.00 | 0.64 | 0.00 | 0.36 | 7.05 | 253.53 | 29.85 | 277.80 | 0.5005 | -769.0 | -625.3 | |
| 0.00 | 1.64 | 0.00 | 0.94 | 7.53 | 253.53 | 29.85 | 278.78 | 0.5012 | -713.0 | -556.3 | |
| 0.00 | 2.36 | 0.00 | 1.34 | 8.15 | 252.63 | 28.94 | 280.22 | 0.4887 | 696.0 | 512.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 8.37 | 252.36 | 28.68 | 280.74 | 0.4852 | 516.0 | 451.7 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 6.21 | 252.03 | 28.35 | 276.32 | 0.4768 | 722.0 | 455.6 | |
| 0.64 | 13.63 | 0.36 | 7.68 | 8.60 | 251.72 | 28.03 | 281.41 | 0.4759 | 1089.7 | 747.0 | |
| 0.00 | 3.27 | 0.00 | 1.84 | 7.87 | 251.66 | 27.97 | 279.89 | 0.4735 | 858.0 | 650.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 8.15 | 251.61 | 27.92 | 280.49 | 0.4733 | 995.0 | 751.3 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 9.00 | 251.68 | 27.99 | 282.26 | 0.4763 | 816.0 | 701.9 | |
| 0.00 | 1.91 | 0.00 | 1.07 | 8.76 | 251.55 | 27.87 | 281.79 | 0.4738 | 1015.0 | 866.1 | |
| 0.00 | 2.27 | 0.00 | 1.27 | 7.69 | 251.47 | 27.78 | 279.56 | 0.4704 | 781.0 | 764.4 | |
| 27.71 | 57.79 | 15.49 | 32.30 | 6.90 | 251.21 | 27.52 | 277.94 | 0.4651 | 959.6 | 303.5 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 7.64 | 251.22 | 27.54 | 279.51 | 0.4665 | 833.0 | 779.6 | |
| 1.64 | -17.00 | 0.91 | -17.00 | 7.01 | 250.87 | 27.18 | 278.23 | 0.4600 | 1200.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 5.98 | 250.46 | 26.78 | 276.05 | 0.4524 | 775.0 | 628.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 6.17 | 250.16 | 26.48 | 276.53 | 0.4480 | 830.0 | 656.7 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 6.84 | 250.20 | 26.52 | 278.02 | 0.4495 | 812.0 | 707.8 | |
| 0.00 | 2.45 | 0.00 | 1.36 | 6.73 | 250.03 | 26.34 | 277.79 | 0.4466 | 992.0 | 815.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
