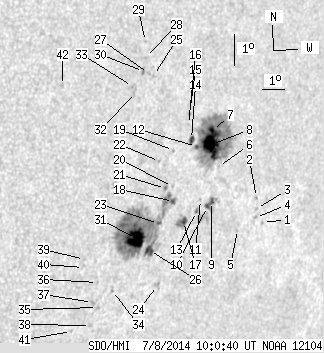

SDO HMI 2014-07-08 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.95 | 407.65 | 53.99 | 300.60 | -12.11 | 267.96 | 45.37 | 249.99 | 0.7430 | 146.9 | -46.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.96 | -13.16 | 272.41 | 49.82 | 250.25 | 0.7926 | 614.0 | 468.9 | |
| 0.00 | 1.09 | 0.00 | 0.87 | -12.34 | 271.90 | 49.31 | 251.09 | 0.7852 | 564.0 | 537.4 | |
| 0.00 | 1.45 | 0.00 | 1.16 | -12.69 | 271.99 | 49.40 | 250.68 | 0.7871 | 650.0 | 564.2 | |
| 0.00 | 1.18 | 0.00 | 0.95 | -12.98 | 272.02 | 49.43 | 250.34 | 0.7882 | 590.0 | 482.7 | |
| 0.00 | 0.55 | 0.00 | 0.43 | -13.32 | 271.25 | 48.65 | 249.66 | 0.7814 | 664.0 | 599.7 | |
| 0.00 | 0.91 | 0.00 | 0.69 | -11.26 | 269.86 | 47.27 | 251.77 | 0.7607 | -147.0 | -132.3 | |
| 3.45 | 146.91 | 2.58 | 110.43 | -10.11 | 269.35 | 46.76 | 253.09 | 0.7519 | 1028.1 | 231.3 | |
| 24.98 | -7.00 | 18.75 | -7.00 | -10.55 | 269.39 | 46.80 | 252.53 | 0.7536 | 1014.4 | 999999 | |
| 1.91 | 11.81 | 1.46 | 9.03 | -12.36 | 269.78 | 47.19 | 250.35 | 0.7632 | 720.0 | 282.4 | |
| 1.91 | -9.00 | 1.45 | -9.00 | -12.51 | 269.64 | 47.04 | 250.11 | 0.7621 | 611.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -12.27 | 269.26 | 46.67 | 250.28 | 0.7573 | 697.0 | 596.3 | |
| 1.09 | -7.00 | 0.81 | -7.00 | -10.58 | 268.72 | 46.13 | 252.27 | 0.7462 | 781.0 | 999999 | |
| 0.64 | 2.09 | 0.48 | 1.58 | -12.65 | 269.16 | 46.57 | 249.77 | 0.7575 | 564.4 | 477.8 | |
| 2.54 | 4.54 | 1.88 | 3.35 | -10.34 | 268.45 | 45.86 | 252.48 | 0.7426 | 903.4 | 681.7 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -9.52 | 268.21 | 45.62 | 253.49 | 0.7375 | 495.0 | 465.0 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -9.86 | 268.23 | 45.64 | 253.04 | 0.7387 | 131.0 | 182.3 | |
| 3.27 | 10.45 | 2.45 | 7.82 | -12.94 | 268.64 | 46.05 | 249.20 | 0.7528 | 762.1 | 551.6 | |
| 1.73 | 192.33 | 1.27 | 139.60 | -12.28 | 268.04 | 45.45 | 249.83 | 0.7441 | 173.9 | -359.9 | |
| 0.00 | 1.00 | 0.00 | 0.73 | -10.65 | 267.71 | 45.12 | 251.82 | 0.7352 | 653.0 | 532.8 | |
| 0.00 | 1.18 | 0.00 | 0.87 | -11.80 | 267.89 | 45.30 | 250.40 | 0.7409 | 250.0 | 227.9 | |
| 0.00 | 1.82 | 0.00 | 1.33 | -11.84 | 267.59 | 45.00 | 250.22 | 0.7377 | 651.0 | 482.1 | |
| 0.00 | 0.73 | 0.00 | 0.52 | -10.97 | 267.15 | 44.56 | 251.20 | 0.7300 | 484.0 | 465.5 | |
| 1.00 | -18.00 | 0.73 | -18.00 | -12.95 | 267.52 | 44.93 | 248.76 | 0.7408 | -409.2 | 999999 | |
| 0.00 | 3.63 | 0.00 | 2.72 | -14.95 | 267.98 | 45.39 | 246.40 | 0.7529 | -490.0 | -458.9 | |
| 0.00 | 1.45 | 0.00 | 1.02 | -8.25 | 266.45 | 43.86 | 254.62 | 0.7134 | 691.0 | 601.2 | |
| 5.72 | -18.00 | 4.21 | -18.00 | -13.80 | 267.32 | 44.73 | 247.59 | 0.7416 | -678.4 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.02 | -8.18 | 266.22 | 43.63 | 254.64 | 0.7106 | 592.0 | 572.6 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -7.67 | 266.03 | 43.44 | 255.28 | 0.7068 | 639.0 | 568.2 | |
| 0.00 | 0.64 | 0.00 | 0.44 | -7.18 | 265.97 | 43.38 | 255.95 | 0.7047 | 553.0 | 447.1 | |
| 0.00 | 2.36 | 0.00 | 1.65 | -8.11 | 266.00 | 43.41 | 254.67 | 0.7077 | 828.0 | 676.6 | |
| 24.71 | -18.00 | 17.92 | -18.00 | -13.38 | 266.61 | 44.02 | 247.83 | 0.7323 | -1056.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -8.75 | 265.75 | 43.16 | 253.70 | 0.7066 | 605.0 | 585.3 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -8.56 | 265.59 | 43.00 | 253.91 | 0.7042 | 607.0 | 519.9 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -15.01 | 266.00 | 43.41 | 245.45 | 0.7320 | -559.0 | -469.8 | |
| 0.00 | 1.64 | 0.00 | 1.18 | -15.53 | 265.48 | 42.89 | 244.54 | 0.7285 | -558.0 | -516.2 | |
| 0.00 | 1.09 | 0.00 | 0.78 | -14.72 | 265.28 | 42.69 | 245.50 | 0.7229 | -497.0 | -433.8 | |
| 0.00 | 1.91 | 0.00 | 1.37 | -15.36 | 265.22 | 42.63 | 244.64 | 0.7250 | -641.0 | -514.9 | |
| 0.00 | 1.54 | 0.00 | 1.11 | -16.11 | 265.33 | 42.74 | 243.73 | 0.7294 | -311.0 | -266.4 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -13.95 | 264.54 | 41.95 | 246.17 | 0.7116 | -632.0 | -530.0 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -14.21 | 264.56 | 41.97 | 245.84 | 0.7128 | -459.0 | -477.2 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -16.27 | 264.55 | 41.96 | 243.15 | 0.7217 | -444.0 | -349.5 | |
| 0.00 | 2.18 | 0.00 | 1.45 | -8.40 | 262.68 | 40.09 | 253.07 | 0.6682 | -520.0 | -363.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
