SDO HMI 2014-07-08 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 301.71 | 1868.16 | 152.69 | 946.22 | -7.83 | 220.76 | -1.83 | 171.31 | 0.2061 | 700.1 | 226.4 | |
|
previous
or next observation for the same group /

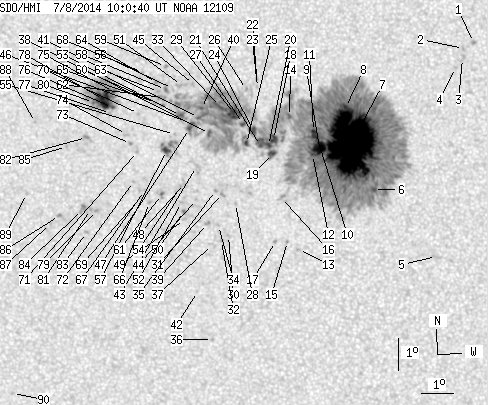

back to the solar disc SDO HMI 2014-07-08 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 1.09 | -4.82 | 225.82 | 3.23 | 200.89 | 0.1583 | 1007.0 | 851.8 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -5.01 | 225.52 | 2.93 | 198.69 | 0.1595 | 939.0 | 766.2 | |
| 0.00 | 3.72 | 0.00 | 1.87 | -5.31 | 225.49 | 2.90 | 197.91 | 0.1644 | 648.0 | 602.0 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -5.59 | 225.27 | 2.68 | 196.19 | 0.1679 | 925.0 | 732.8 | |
| 0.00 | 3.82 | 0.00 | 1.96 | -11.49 | 224.72 | 2.13 | 187.93 | 0.2647 | 623.0 | 432.5 | |
| 3.09 | 1638.42 | 1.57 | 829.15 | -9.37 | 222.76 | 0.17 | 180.74 | 0.2264 | 433.5 | 344.1 | |
| 203.87 | -6.00 | 103.11 | -6.00 | -7.91 | 222.08 | -0.51 | 177.50 | 0.2014 | 1759.9 | 999999 | |
| 1.82 | -6.00 | 0.92 | -6.00 | -6.82 | 221.90 | -0.69 | 176.24 | 0.1829 | 1504.8 | 999999 | |
| 11.99 | -6.00 | 6.07 | -6.00 | -8.06 | 221.10 | -1.49 | 172.76 | 0.2055 | 1298.5 | 999999 | |
| 1.91 | -6.00 | 0.96 | -6.00 | -7.78 | 221.04 | -1.55 | 172.29 | 0.2009 | 1195.1 | 999999 | |
| 1.91 | -6.00 | 0.96 | -6.00 | -7.57 | 220.92 | -1.67 | 171.53 | 0.1975 | 1131.7 | 999999 | |
| 1.09 | -6.00 | 0.55 | -6.00 | -8.28 | 220.88 | -1.71 | 171.87 | 0.2097 | 1046.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -11.26 | 220.43 | -2.16 | 171.81 | 0.2610 | -822.0 | -679.5 | |
| 1.54 | -6.00 | 0.78 | -6.00 | -7.10 | 220.18 | -2.41 | 167.39 | 0.1919 | 1015.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -11.01 | 220.09 | -2.50 | 170.38 | 0.2577 | -795.0 | -618.3 | |
| 0.00 | 3.18 | 0.00 | 1.62 | -9.63 | 219.91 | -2.68 | 168.66 | 0.2352 | 727.0 | 461.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -11.01 | 219.71 | -2.88 | 168.98 | 0.2588 | -947.0 | -810.1 | |
| 4.82 | -6.00 | 2.44 | -6.00 | -7.82 | 219.68 | -2.91 | 165.81 | 0.2059 | 1232.4 | 999999 | |
| 3.18 | -6.00 | 1.61 | -6.00 | -8.25 | 219.65 | -2.94 | 166.16 | 0.2132 | 1096.6 | 999999 | |
| 2.45 | -6.00 | 1.24 | -6.00 | -8.00 | 219.53 | -3.06 | 165.31 | 0.2096 | 1235.5 | 999999 | |
| 1.36 | -6.00 | 0.69 | -6.00 | -8.00 | 219.28 | -3.31 | 164.19 | 0.2107 | 1065.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -6.20 | 219.20 | -3.39 | 161.05 | 0.1816 | -499.0 | -379.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -5.93 | 219.18 | -3.41 | 160.38 | 0.1773 | -857.0 | -714.2 | |
| 3.72 | -6.00 | 1.88 | -6.00 | -7.54 | 219.07 | -3.52 | 162.57 | 0.2041 | 1046.4 | 999999 | |
| 2.00 | -6.00 | 1.01 | -6.00 | -7.94 | 218.85 | -3.74 | 162.16 | 0.2119 | 958.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -6.27 | 218.87 | -3.72 | 159.43 | 0.1846 | -490.0 | -381.2 | |
| 2.18 | -6.00 | 1.10 | -6.00 | -7.32 | 218.76 | -3.83 | 160.81 | 0.2023 | 1130.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -9.82 | 218.49 | -4.10 | 163.15 | 0.2442 | -711.0 | -525.4 | |
| 11.81 | -6.00 | 5.97 | -6.00 | -7.01 | 218.49 | -4.10 | 158.99 | 0.1989 | 1169.2 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -10.82 | 218.26 | -4.34 | 163.44 | 0.2617 | -758.0 | -552.0 | |
| 0.00 | 2.82 | 0.00 | 1.44 | -9.51 | 218.09 | -4.50 | 161.20 | 0.2413 | -810.0 | -711.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -10.98 | 218.04 | -4.56 | 162.83 | 0.2653 | -1024.0 | -873.5 | |
| 5.72 | -6.00 | 2.89 | -6.00 | -6.80 | 218.06 | -4.53 | 156.59 | 0.1982 | 705.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.51 | 217.95 | -4.64 | 161.97 | 0.2582 | -794.0 | -653.3 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -9.41 | 217.87 | -4.72 | 160.24 | 0.2410 | -883.0 | -686.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -14.13 | 217.69 | -4.90 | 164.81 | 0.3175 | -706.0 | -591.0 | |
| 0.00 | 3.09 | 0.00 | 1.59 | -11.11 | 217.75 | -4.84 | 161.99 | 0.2688 | -107.0 | -260.2 | |
| 1.82 | -6.00 | 0.92 | -6.00 | -7.64 | 217.71 | -4.88 | 156.67 | 0.2138 | -903.8 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.35 | -10.45 | 217.61 | -4.98 | 160.66 | 0.2590 | -781.0 | -706.4 | |
| 1.18 | -6.00 | 0.60 | -6.00 | -6.86 | 217.48 | -5.12 | 154.08 | 0.2034 | -498.2 | 999999 | |
| 1.00 | -6.00 | 0.51 | -6.00 | -7.14 | 217.38 | -5.21 | 154.26 | 0.2085 | -755.8 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.33 | -12.60 | 217.25 | -5.34 | 162.01 | 0.2952 | -688.0 | -488.7 | |
| 0.00 | 7.72 | 0.00 | 3.93 | -8.67 | 217.30 | -5.29 | 156.82 | 0.2327 | -732.0 | -570.0 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -9.70 | 217.28 | -5.31 | 158.41 | 0.2491 | -863.0 | -717.1 | |
| 0.00 | 2.09 | 0.00 | 1.06 | -6.12 | 217.24 | -5.35 | 151.29 | 0.1940 | -919.0 | -765.8 | |
| 1.18 | -6.00 | 0.60 | -6.00 | -7.33 | 217.16 | -5.43 | 153.73 | 0.2130 | -1141.2 | 999999 | |
| 1.73 | -6.00 | 0.88 | -6.00 | -7.48 | 217.10 | -5.49 | 153.79 | 0.2158 | -983.2 | 999999 | |
| 0.00 | 4.09 | 0.00 | 2.09 | -9.20 | 216.92 | -5.67 | 156.27 | 0.2436 | -761.0 | -582.7 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -10.33 | 216.89 | -5.70 | 157.96 | 0.2614 | -835.0 | -615.9 | |
| 0.00 | 2.27 | 0.00 | 1.16 | -10.08 | 216.87 | -5.72 | 157.50 | 0.2576 | -1010.0 | -852.1 | |
| 0.00 | 5.27 | 0.00 | 2.66 | -6.15 | 216.87 | -5.72 | 149.74 | 0.1976 | -805.0 | -787.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -9.79 | 216.81 | -5.78 | 156.86 | 0.2536 | -951.0 | -768.1 | |
| 2.27 | -6.00 | 1.15 | -6.00 | -7.08 | 216.83 | -5.77 | 151.79 | 0.2119 | -1022.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.29 | 216.79 | -5.80 | 155.96 | 0.2460 | -938.0 | -757.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -7.67 | 216.63 | -5.96 | 152.30 | 0.2223 | -1083.0 | -817.1 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -6.25 | 216.59 | -6.00 | 148.78 | 0.2014 | -684.0 | -656.9 | |
| 3.63 | 18.81 | 1.85 | 9.57 | -8.17 | 216.38 | -6.22 | 152.34 | 0.2319 | -1022.6 | -774.7 | |
| 0.55 | 3.72 | 0.28 | 1.88 | -6.28 | 216.37 | -6.22 | 147.96 | 0.2038 | -1266.8 | -971.3 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -5.57 | 216.38 | -6.21 | 146.03 | 0.1935 | -980.0 | -803.1 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -6.77 | 216.27 | -6.32 | 148.82 | 0.2120 | -905.0 | -753.8 | |
| 0.45 | 2.54 | 0.23 | 1.30 | -9.55 | 216.19 | -6.40 | 154.26 | 0.2541 | -1076.8 | -814.7 | |
| 0.00 | 4.91 | 0.00 | 2.48 | -6.53 | 216.25 | -6.34 | 148.08 | 0.2086 | -1199.0 | -1035.8 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -6.34 | 216.16 | -6.43 | 147.24 | 0.2067 | -983.0 | -861.4 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -6.06 | 216.10 | -6.49 | 146.25 | 0.2033 | -1135.0 | -970.5 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -6.68 | 216.06 | -6.53 | 147.73 | 0.2126 | -892.0 | -727.1 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -9.80 | 215.82 | -6.77 | 153.40 | 0.2608 | -813.0 | -621.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -9.42 | 215.67 | -6.92 | 152.22 | 0.2563 | -964.0 | -799.1 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -5.76 | 215.67 | -6.92 | 143.66 | 0.2032 | -947.0 | -710.3 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -9.64 | 215.54 | -7.05 | 152.19 | 0.2606 | -747.0 | -544.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -7.03 | 215.53 | -7.06 | 146.56 | 0.2224 | -935.0 | -732.5 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -8.21 | 215.48 | -7.11 | 149.12 | 0.2399 | -903.0 | -673.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.15 | 215.33 | -7.26 | 150.55 | 0.2548 | -857.0 | -696.4 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -7.96 | 215.26 | -7.33 | 147.82 | 0.2382 | -1163.0 | -959.5 | |
| 0.00 | 2.45 | 0.00 | 1.25 | -7.68 | 215.14 | -7.45 | 146.76 | 0.2353 | -908.0 | -749.7 | |
| 1.64 | 87.40 | 0.83 | 44.44 | -6.35 | 214.77 | -7.82 | 141.98 | 0.2207 | -1017.9 | -532.7 | |
| 1.45 | -75.00 | 0.74 | -75.00 | -6.85 | 214.73 | -7.86 | 143.19 | 0.2278 | -944.0 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -7.03 | 214.66 | -7.93 | 143.46 | 0.2310 | -744.0 | -586.2 | |
| 19.35 | -75.00 | 9.84 | -75.00 | -6.60 | 214.45 | -8.14 | 141.58 | 0.2273 | -1289.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -10.06 | 214.16 | -8.44 | 148.57 | 0.2782 | -932.0 | -798.1 | |
| 1.00 | -75.00 | 0.51 | -75.00 | -6.70 | 214.14 | -8.45 | 140.79 | 0.2319 | -863.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -10.03 | 213.97 | -8.62 | 147.95 | 0.2794 | -1005.0 | -812.1 | |
| 0.00 | 3.27 | 0.00 | 1.67 | -7.79 | 213.90 | -8.69 | 142.84 | 0.2489 | -1136.0 | -856.2 | |
| 0.00 | 1.91 | 0.00 | 0.99 | -10.76 | 213.82 | -8.77 | 148.88 | 0.2910 | -876.0 | -638.2 | |
| 0.00 | 4.91 | 0.00 | 2.53 | -10.04 | 213.72 | -8.87 | 147.21 | 0.2817 | -856.0 | -844.1 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -8.07 | 213.27 | -9.32 | 141.60 | 0.2593 | -837.0 | -648.9 | |
| 0.00 | 2.09 | 0.00 | 1.08 | -10.23 | 212.99 | -9.60 | 145.52 | 0.2912 | -1040.0 | -874.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -10.48 | 212.70 | -9.89 | 145.22 | 0.2974 | -643.0 | -556.0 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -7.33 | 212.32 | -10.27 | 136.98 | 0.2603 | -764.0 | -618.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.55 | 211.97 | -10.62 | 141.36 | 0.2922 | -825.0 | -593.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -15.92 | 211.24 | -11.35 | 150.44 | 0.3853 | -807.0 | -605.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
