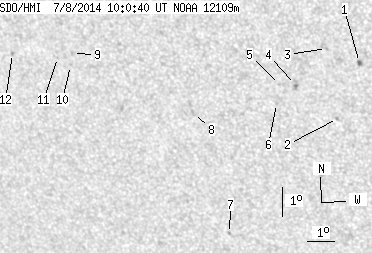

SDO HMI 2014-07-08 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.91 | 18.80 | 0.52 | 11.16 | -21.96 | 201.10 | -21.49 | 141.92 | 0.5502 | -17.7 | 147.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.91 | 2.54 | 0.52 | 1.45 | -20.94 | 205.77 | -16.82 | 146.83 | 0.4960 | 988.3 | 797.3 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -22.85 | 204.77 | -17.82 | 147.53 | 0.5275 | -840.0 | -697.8 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -20.49 | 204.69 | -17.90 | 144.66 | 0.4997 | 842.0 | 701.0 | |
| 0.00 | 4.00 | 0.00 | 2.32 | -21.72 | 203.46 | -19.13 | 144.40 | 0.5250 | 752.0 | 706.2 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -21.73 | 202.91 | -19.69 | 143.65 | 0.5300 | 667.0 | 536.6 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -22.38 | 202.70 | -19.89 | 144.15 | 0.5391 | 563.0 | 446.6 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -26.94 | 200.19 | -22.40 | 146.05 | 0.6105 | -667.0 | -560.9 | |
| 0.00 | 2.00 | 0.00 | 1.20 | -22.79 | 199.69 | -22.90 | 140.85 | 0.5703 | 592.0 | 542.7 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -20.88 | 195.66 | -26.93 | 134.00 | 0.5904 | -663.0 | -510.0 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -21.28 | 195.51 | -27.08 | 134.37 | 0.5957 | -711.0 | -601.0 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -21.03 | 195.08 | -27.51 | 133.61 | 0.5977 | -486.0 | -428.6 | |
| 0.00 | 1.45 | 0.00 | 0.91 | -20.94 | 193.43 | -29.16 | 131.92 | 0.6139 | -767.0 | -566.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
