SDO HMI 2014-07-08 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.45 | 28.90 | 0.79 | 15.95 | -18.08 | 232.96 | 10.37 | 205.64 | 0.4363 | -180.6 | -159.6 | |
|
previous
or next observation for the same group /

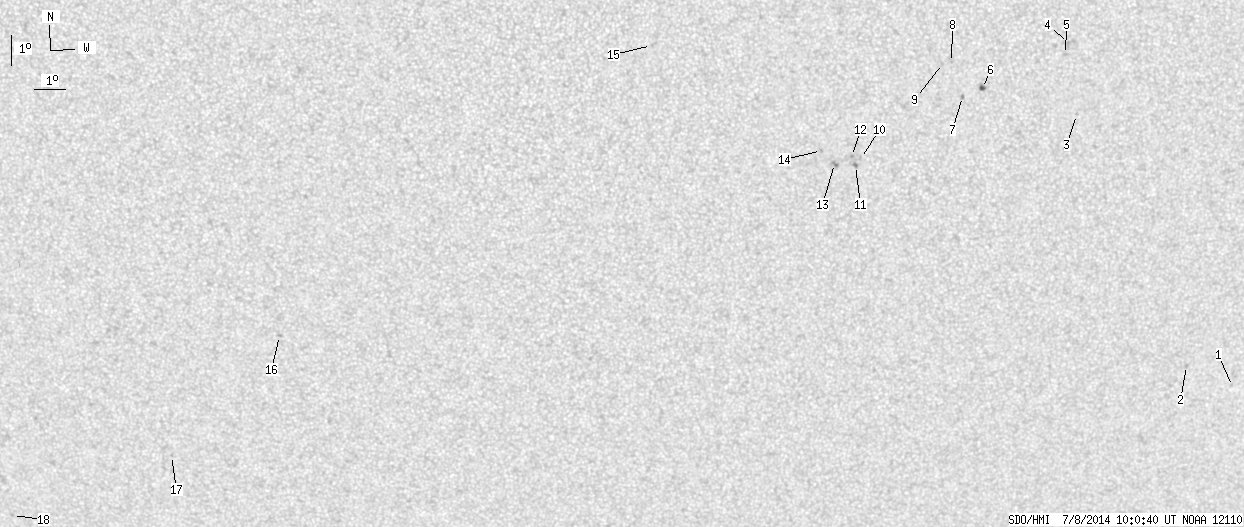

back to the solar disc SDO HMI 2014-07-08 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.45 | -25.37 | 247.24 | 24.65 | 218.14 | 0.6124 | -645.0 | -548.2 | |
| 0.00 | 1.64 | 0.00 | 1.00 | -24.59 | 245.39 | 22.80 | 216.93 | 0.5885 | -760.0 | -553.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -16.09 | 240.40 | 17.81 | 221.26 | 0.4473 | 658.0 | 532.2 | |
| 0.00 | 2.09 | 0.00 | 1.14 | -13.80 | 239.94 | 17.35 | 224.27 | 0.4166 | 794.0 | 661.2 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -14.15 | 239.87 | 17.28 | 223.55 | 0.4197 | 852.0 | 564.9 | |
| 1.45 | 3.27 | 0.79 | 1.77 | -15.19 | 237.22 | 14.63 | 217.22 | 0.4047 | 935.3 | 717.9 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -15.44 | 236.59 | 14.00 | 215.64 | 0.4018 | 876.0 | 680.7 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -14.34 | 236.16 | 13.57 | 216.51 | 0.3837 | 669.0 | 558.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -14.37 | 235.87 | 13.28 | 215.88 | 0.3813 | 762.0 | 666.1 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -17.40 | 233.39 | 10.80 | 206.54 | 0.4020 | -703.0 | -582.6 | |
| 0.00 | 2.09 | 0.00 | 1.13 | -17.63 | 233.24 | 10.65 | 205.96 | 0.4041 | -867.0 | -762.2 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -17.33 | 233.10 | 10.51 | 205.99 | 0.3989 | -877.0 | -760.1 | |
| 0.00 | 3.18 | 0.00 | 1.72 | -17.55 | 232.56 | 9.97 | 204.58 | 0.3984 | -953.0 | -810.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -17.12 | 232.11 | 9.52 | 204.08 | 0.3892 | -880.0 | -724.1 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -13.69 | 226.59 | 4.00 | 192.81 | 0.3067 | -801.0 | -720.3 | |
| 0.00 | 1.73 | 0.00 | 0.97 | -23.26 | 214.43 | -8.16 | 163.91 | 0.4723 | -805.0 | -603.0 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -27.49 | 210.36 | -12.23 | 159.98 | 0.5511 | -697.0 | -570.2 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -29.76 | 204.28 | -18.31 | 153.54 | 0.6141 | -575.0 | -444.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
