SDO HMI 2014-07-08 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.26 | 0.00 | 6.29 | 17.84 | 198.81 | -23.78 | 56.85 | 0.4595 | -574.0 | -547.2 | |
|
previous
or next observation for the same group /

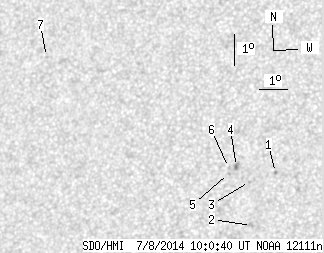

back to the solar disc SDO HMI 2014-07-08 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.55 | 17.78 | 200.76 | -21.83 | 54.93 | 0.4344 | -842.0 | -738.4 | |
| 0.00 | 2.45 | 0.00 | 1.34 | 16.11 | 200.14 | -22.45 | 59.01 | 0.4297 | -777.0 | -635.0 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 17.48 | 199.90 | -22.69 | 56.47 | 0.4431 | -752.0 | -599.9 | |
| 0.00 | 3.27 | 0.00 | 1.82 | 17.94 | 199.39 | -23.20 | 56.11 | 0.4534 | -939.0 | -766.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 17.71 | 199.14 | -23.45 | 56.80 | 0.4549 | -723.0 | -646.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 17.90 | 199.12 | -23.48 | 56.46 | 0.4566 | -596.0 | -522.4 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 21.24 | 191.88 | -30.71 | 56.88 | 0.5705 | 611.0 | 427.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
