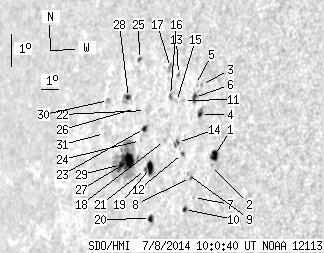

SDO HMI 2014-07-08 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.44 | 147.92 | 35.67 | 136.17 | 9.31 | 165.11 | -57.48 | 81.26 | 0.8437 | -228.3 | -66.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.63 | 7.90 | 4.71 | 6.61 | 9.24 | 168.85 | -53.74 | 81.20 | 0.8075 | -650.2 | -412.4 | |
| 0.00 | 1.18 | 0.00 | 0.99 | 8.93 | 168.76 | -53.83 | 81.59 | 0.8083 | -544.0 | -462.8 | |
| 0.00 | 1.09 | 0.00 | 0.94 | 11.37 | 167.62 | -54.97 | 78.66 | 0.8209 | -506.0 | -469.7 | |
| 1.91 | 5.09 | 1.64 | 4.36 | 10.46 | 167.81 | -54.78 | 79.77 | 0.8185 | -590.1 | -490.1 | |
| 0.00 | 0.36 | 0.00 | 0.32 | 11.36 | 167.29 | -55.30 | 78.70 | 0.8241 | -370.0 | -463.0 | |
| 2.27 | 4.72 | 1.97 | 4.10 | 10.96 | 167.35 | -55.24 | 79.18 | 0.8233 | -499.8 | -347.6 | |
| 0.00 | 0.82 | 0.00 | 0.70 | 7.91 | 168.02 | -54.57 | 82.88 | 0.8156 | 455.0 | 407.3 | |
| 0.36 | 1.54 | 0.31 | 1.32 | 8.51 | 167.73 | -54.86 | 82.15 | 0.8185 | -307.5 | -295.4 | |
| 0.00 | 1.00 | 0.00 | 0.86 | 8.59 | 167.55 | -55.04 | 82.06 | 0.8203 | -529.0 | -409.9 | |
| 1.36 | 2.82 | 1.17 | 2.42 | 7.52 | 167.61 | -54.98 | 83.37 | 0.8196 | 413.9 | 326.0 | |
| 0.00 | 1.27 | 0.00 | 1.12 | 10.84 | 166.78 | -55.81 | 79.37 | 0.8288 | 295.0 | 246.6 | |
| 0.64 | 1.91 | 0.55 | 1.66 | 9.22 | 167.14 | -55.45 | 81.31 | 0.8246 | -562.7 | -405.5 | |
| 0.00 | 1.73 | 0.00 | 1.54 | 11.62 | 166.27 | -56.32 | 78.46 | 0.8340 | -522.0 | -448.2 | |
| 0.91 | 3.91 | 0.80 | 3.44 | 9.54 | 166.79 | -55.80 | 80.94 | 0.8281 | -161.1 | -112.5 | |
| 0.00 | 0.73 | 0.00 | 0.65 | 10.79 | 166.40 | -56.19 | 79.45 | 0.8323 | 354.0 | 336.5 | |
| 0.00 | 3.00 | 0.00 | 2.69 | 10.95 | 166.01 | -56.58 | 79.28 | 0.8361 | 470.0 | 445.0 | |
| 0.00 | 3.72 | 0.00 | 3.37 | 11.81 | 165.75 | -56.84 | 78.27 | 0.8390 | -381.0 | -353.0 | |
| 0.00 | 1.27 | 0.00 | 1.14 | 9.56 | 166.05 | -56.54 | 80.94 | 0.8351 | 275.0 | 227.1 | |
| 6.09 | 10.27 | 5.53 | 9.34 | 8.70 | 165.47 | -57.12 | 81.99 | 0.8404 | -562.4 | -391.5 | |
| 2.54 | 5.00 | 2.29 | 4.49 | 7.15 | 165.80 | -56.79 | 83.84 | 0.8371 | 463.9 | 239.4 | |
| 0.55 | -19.00 | 0.50 | -19.00 | 8.63 | 165.20 | -57.39 | 82.09 | 0.8429 | -538.3 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.67 | 10.42 | 164.73 | -57.86 | 79.98 | 0.8478 | 192.0 | 197.5 | |
| 2.00 | 3.09 | 1.85 | 2.86 | 9.87 | 164.82 | -57.77 | 80.62 | 0.8467 | 522.5 | 435.1 | |
| 0.00 | 0.55 | 0.00 | 0.51 | 9.49 | 164.69 | -57.90 | 81.07 | 0.8478 | 592.0 | 479.2 | |
| 0.82 | 2.00 | 0.78 | 1.90 | 11.96 | 163.88 | -58.71 | 78.22 | 0.8561 | 547.7 | 473.8 | |
| 0.00 | 0.36 | 0.00 | 0.34 | 10.45 | 164.13 | -58.47 | 79.97 | 0.8532 | 519.0 | 564.0 | |
| 9.63 | 70.50 | 9.06 | 66.80 | 8.85 | 164.21 | -58.38 | 81.84 | 0.8521 | -792.2 | -136.1 | |
| 2.00 | 7.27 | 1.92 | 6.98 | 10.76 | 163.61 | -58.98 | 79.62 | 0.8580 | 688.1 | 475.7 | |
| 2.73 | -27.00 | 2.59 | -27.00 | 8.70 | 163.77 | -58.82 | 82.03 | 0.8560 | -431.9 | 999999 | |
| 0.00 | 3.18 | 0.00 | 3.15 | 10.61 | 162.42 | -60.17 | 79.85 | 0.8682 | 619.0 | 532.3 | |
| 0.00 | 0.91 | 0.00 | 0.90 | 9.59 | 162.49 | -60.10 | 81.02 | 0.8674 | 635.0 | 509.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
