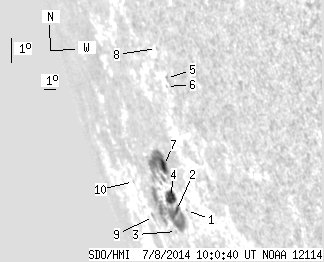

SDO HMI 2014-07-08 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.08 | 117.66 | 34.65 | 236.68 | -19.32 | 149.83 | -72.76 | 111.11 | 0.9672 | 290.8 | -129.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 1.80 | -19.98 | 151.03 | -71.56 | 111.99 | 0.9627 | 272.0 | 254.5 | |
| 2.91 | 69.14 | 5.60 | 141.49 | -20.06 | 149.88 | -72.71 | 111.87 | 0.9676 | 88.2 | -198.3 | |
| 0.00 | 1.73 | 0.00 | 3.55 | -20.81 | 148.93 | -73.66 | 112.48 | 0.9719 | -364.0 | -284.4 | |
| 9.63 | -2.00 | 18.68 | -2.00 | -19.64 | 149.70 | -72.89 | 111.42 | 0.9680 | 314.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.96 | -15.57 | 153.15 | -69.44 | 107.79 | 0.9486 | 429.0 | 365.9 | |
| 0.00 | 0.27 | 0.00 | 0.43 | -15.84 | 152.95 | -69.65 | 108.04 | 0.9499 | 218.0 | 226.0 | |
| 5.54 | 41.16 | 10.37 | 80.29 | -18.57 | 150.14 | -72.45 | 110.39 | 0.9654 | 588.5 | -8.7 | |
| 0.00 | 0.55 | 0.00 | 0.85 | -14.63 | 152.93 | -69.66 | 106.77 | 0.9489 | -219.0 | -237.7 | |
| 0.00 | 2.27 | 0.00 | 5.58 | -20.47 | 146.49 | -76.10 | 111.77 | 0.9802 | -415.0 | -385.4 | |
| 0.00 | 0.27 | 0.00 | 0.73 | -19.39 | 145.29 | -77.30 | 110.53 | 0.9834 | -280.0 | -285.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
