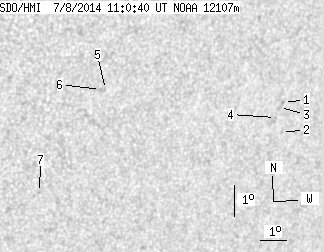

SDO HMI 2014-07-08 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.19 | 0.00 | 4.61 | -12.99 | 258.06 | 36.02 | 244.21 | 0.6374 | 370.1 | 346.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.90 | -12.56 | 260.51 | 38.47 | 246.36 | 0.6650 | 588.0 | 492.9 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -13.52 | 260.60 | 38.56 | 245.07 | 0.6706 | 442.0 | 363.7 | |
| 0.00 | 1.82 | 0.00 | 1.20 | -12.72 | 260.37 | 38.33 | 246.08 | 0.6641 | 536.0 | 477.7 | |
| 0.00 | 0.73 | 0.00 | 0.48 | -13.03 | 260.27 | 38.23 | 245.58 | 0.6644 | 235.0 | 283.0 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -11.88 | 253.60 | 31.56 | 243.21 | 0.5760 | 664.0 | 536.1 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -11.88 | 253.42 | 31.38 | 243.09 | 0.5736 | 776.0 | 684.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -15.10 | 251.65 | 29.61 | 236.70 | 0.5729 | -650.0 | -468.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
