SDO HMI 2014-07-08 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.82 | 17.73 | 0.46 | 10.57 | -21.37 | 199.66 | -22.38 | 140.57 | 0.5566 | 80.3 | 50.0 | |
|
previous
or next observation for the same group /

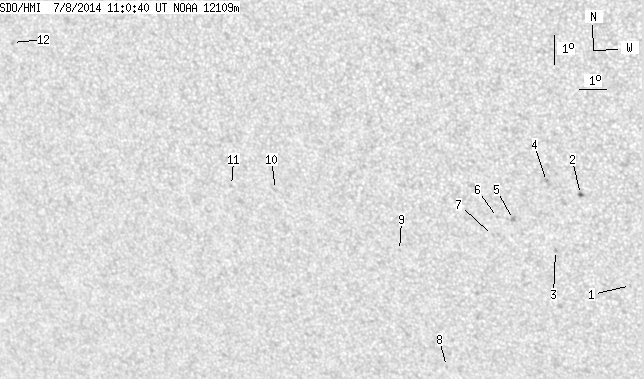

back to the solar disc SDO HMI 2014-07-08 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.42 | -23.99 | 207.19 | -14.85 | 153.12 | 0.5200 | -586.0 | -506.2 | |
| 0.82 | 1.82 | 0.46 | 1.03 | -20.92 | 205.83 | -16.21 | 147.77 | 0.4908 | 926.9 | 787.5 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -22.83 | 204.74 | -17.30 | 148.27 | 0.5232 | -829.0 | -724.4 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -20.51 | 204.72 | -17.32 | 145.56 | 0.4949 | 813.0 | 675.4 | |
| 0.00 | 2.73 | 0.00 | 1.58 | -21.81 | 203.42 | -18.62 | 145.22 | 0.5216 | 855.0 | 759.4 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -21.75 | 202.88 | -19.16 | 144.39 | 0.5257 | 583.0 | 432.8 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -22.37 | 202.61 | -19.43 | 144.75 | 0.5351 | 613.0 | 454.3 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -26.96 | 200.16 | -21.88 | 146.66 | 0.6068 | -671.0 | -576.8 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -22.96 | 199.22 | -22.82 | 141.14 | 0.5714 | 496.0 | 375.4 | |
| 0.00 | 2.09 | 0.00 | 1.28 | -21.01 | 195.09 | -26.95 | 134.15 | 0.5919 | -510.0 | -419.7 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -20.92 | 193.48 | -28.56 | 132.46 | 0.6075 | -532.0 | -476.6 | |
| 0.00 | 2.00 | 0.00 | 1.31 | -16.47 | 186.08 | -35.96 | 120.55 | 0.6562 | -585.0 | -332.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
