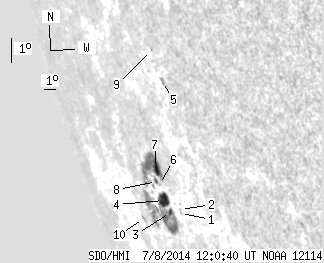

SDO HMI 2014-07-08 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.71 | 112.09 | 39.01 | 208.96 | -19.22 | 149.88 | -71.61 | 111.19 | 0.9622 | 382.1 | -129.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.46 | -20.01 | 151.03 | -70.46 | 112.21 | 0.9577 | 308.0 | 302.0 | |
| 0.00 | 0.27 | 0.00 | 0.46 | -19.87 | 151.18 | -70.31 | 112.09 | 0.9569 | 313.0 | 353.3 | |
| 1.82 | 63.77 | 3.26 | 121.10 | -20.04 | 149.99 | -71.50 | 112.06 | 0.9625 | 323.6 | -189.5 | |
| 10.99 | -3.00 | 20.01 | -3.00 | -19.67 | 149.67 | -71.82 | 111.62 | 0.9635 | 326.2 | 999999 | |
| 0.00 | 2.36 | 0.00 | 3.46 | -15.60 | 153.21 | -68.28 | 108.02 | 0.9424 | 460.0 | 365.7 | |
| 0.00 | 0.27 | 0.00 | 0.49 | -19.13 | 149.83 | -71.66 | 111.10 | 0.9624 | 516.0 | 494.7 | |
| 7.54 | 40.15 | 13.26 | 73.58 | -18.60 | 150.08 | -71.41 | 110.59 | 0.9609 | 600.2 | -72.3 | |
| 1.36 | 2.73 | 2.48 | 4.96 | -19.05 | 149.61 | -71.88 | 110.98 | 0.9633 | 311.1 | 221.2 | |
| 0.00 | 0.91 | 0.00 | 1.34 | -14.62 | 152.93 | -68.56 | 106.95 | 0.9430 | -273.0 | -216.0 | |
| 0.00 | 1.36 | 0.00 | 3.11 | -20.47 | 146.35 | -75.14 | 111.91 | 0.9770 | -438.0 | -362.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
