SDO HMI 2014-07-08 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.07 | 139.07 | 24.92 | 80.44 | 7.14 | 252.48 | 30.99 | 277.81 | 0.5176 | 337.5 | 145.8 | |
|
previous
or next observation for the same group /

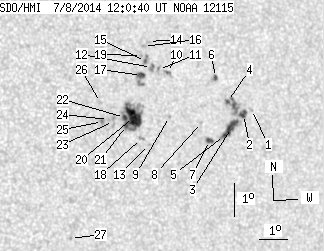

back to the solar disc SDO HMI 2014-07-08 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 1.08 | 7.03 | 255.39 | 33.90 | 277.18 | 0.5601 | -503.0 | -398.5 | |
| 3.18 | 22.07 | 1.89 | 13.09 | 6.89 | 255.08 | 33.59 | 276.96 | 0.5555 | -777.9 | -811.6 | |
| 8.08 | 17.53 | 4.78 | 10.36 | 6.51 | 254.61 | 33.12 | 276.32 | 0.5483 | -915.8 | -617.3 | |
| 1.00 | -2.00 | 0.59 | -2.00 | 7.31 | 254.53 | 33.04 | 277.79 | 0.5479 | -1034.8 | 999999 | |
| 1.73 | -3.00 | 1.02 | -3.00 | 6.28 | 254.34 | 32.85 | 275.92 | 0.5441 | -974.6 | 999999 | |
| 1.18 | 3.54 | 0.70 | 2.09 | 8.06 | 254.16 | 32.67 | 279.22 | 0.5435 | -921.8 | -764.6 | |
| 2.27 | 3.91 | 1.33 | 2.29 | 6.14 | 253.78 | 32.29 | 275.73 | 0.5359 | -939.3 | -795.8 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 6.70 | 253.53 | 32.04 | 276.80 | 0.5327 | -785.0 | -579.3 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 6.92 | 252.40 | 30.90 | 277.38 | 0.5161 | -830.0 | -672.7 | |
| 0.00 | 3.54 | 0.00 | 2.05 | 8.27 | 252.43 | 30.94 | 279.97 | 0.5187 | 693.0 | 542.4 | |
| 0.00 | 2.27 | 0.00 | 1.31 | 8.37 | 252.12 | 30.63 | 280.24 | 0.5142 | 645.0 | 511.6 | |
| 0.00 | 3.72 | 0.00 | 2.14 | 8.44 | 251.87 | 30.38 | 280.44 | 0.5107 | 864.0 | 732.4 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 6.09 | 251.62 | 30.13 | 275.85 | 0.5038 | 634.0 | 458.5 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 9.24 | 251.84 | 30.35 | 282.00 | 0.5119 | 594.0 | 465.6 | |
| 0.73 | 3.18 | 0.42 | 1.83 | 8.63 | 251.68 | 30.19 | 280.86 | 0.5082 | 1044.9 | 793.3 | |
| 0.00 | 1.64 | 0.00 | 0.94 | 9.09 | 251.65 | 30.16 | 281.77 | 0.5087 | 887.0 | 688.3 | |
| 3.09 | 9.90 | 1.77 | 5.67 | 8.21 | 251.50 | 30.01 | 280.07 | 0.5047 | 911.5 | 755.9 | |
| 0.00 | 2.27 | 0.00 | 1.30 | 6.29 | 251.35 | 29.86 | 276.27 | 0.4999 | 777.0 | 556.6 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 8.82 | 251.55 | 30.06 | 281.26 | 0.5067 | 995.0 | 773.5 | |
| 18.35 | 47.78 | 10.46 | 27.24 | 6.94 | 251.11 | 29.62 | 277.61 | 0.4970 | 982.4 | 580.6 | |
| 1.82 | -20.00 | 1.03 | -20.00 | 6.70 | 250.85 | 29.36 | 277.17 | 0.4927 | 744.5 | 999999 | |
| 1.64 | -20.00 | 0.93 | -20.00 | 6.95 | 250.80 | 29.31 | 277.68 | 0.4922 | 1192.8 | 999999 | |
| 0.00 | 3.91 | 0.00 | 2.21 | 6.84 | 250.40 | 28.91 | 277.53 | 0.4861 | 834.0 | 771.1 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 6.90 | 250.23 | 28.74 | 277.69 | 0.4836 | 861.0 | 774.0 | |
| 0.00 | 2.09 | 0.00 | 1.18 | 6.85 | 250.02 | 28.53 | 277.62 | 0.4803 | 1055.0 | 881.4 | |
| 0.00 | 1.64 | 0.00 | 0.92 | 7.43 | 249.99 | 28.50 | 278.84 | 0.4807 | 766.0 | 653.1 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 3.32 | 248.74 | 27.25 | 270.15 | 0.4589 | 760.0 | 588.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
