SDO HMI 2014-07-08 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.21 | 368.03 | 53.58 | 280.07 | -12.17 | 267.98 | 47.04 | 250.52 | 0.7612 | 131.0 | -61.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

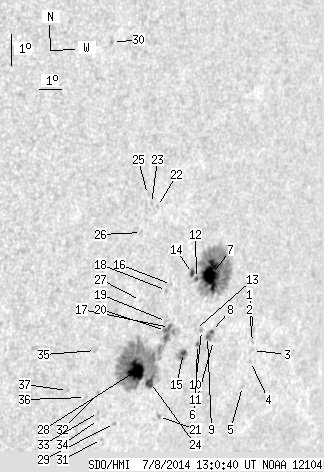

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 1.95 | -12.39 | 271.87 | 50.93 | 251.53 | 0.8017 | 276.0 | 336.7 | |
| 0.00 | 1.18 | 0.00 | 0.98 | -12.77 | 271.93 | 50.99 | 251.08 | 0.8032 | 582.0 | 512.7 | |
| 0.00 | 1.00 | 0.00 | 0.83 | -13.03 | 272.00 | 51.06 | 250.80 | 0.8046 | 658.0 | 571.8 | |
| 0.00 | 1.00 | 0.00 | 0.83 | -13.37 | 272.00 | 51.06 | 250.38 | 0.8056 | 511.0 | 469.0 | |
| 0.00 | 1.09 | 0.00 | 0.91 | -14.16 | 271.84 | 50.90 | 249.38 | 0.8061 | 377.0 | 360.2 | |
| 0.00 | 1.82 | 0.00 | 1.44 | -12.61 | 269.98 | 49.04 | 250.67 | 0.7832 | -101.0 | -58.5 | |
| 29.61 | 138.78 | 22.94 | 107.67 | -10.50 | 269.39 | 48.45 | 253.11 | 0.7713 | 951.0 | 204.2 | |
| 1.09 | 6.99 | 0.86 | 5.52 | -12.31 | 269.81 | 48.87 | 250.97 | 0.7806 | 712.8 | 497.0 | |
| 1.27 | -8.00 | 1.00 | -8.00 | -12.46 | 269.65 | 48.71 | 250.74 | 0.7795 | 655.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.13 | -12.26 | 269.32 | 48.38 | 250.88 | 0.7754 | 760.0 | 618.1 | |
| 1.00 | 2.27 | 0.78 | 1.78 | -12.70 | 269.24 | 48.30 | 250.31 | 0.7758 | 437.5 | 362.4 | |
| 1.09 | -7.00 | 0.83 | -7.00 | -10.59 | 268.71 | 47.77 | 252.79 | 0.7642 | 647.1 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.63 | -12.21 | 269.02 | 48.08 | 250.84 | 0.7722 | 356.0 | 384.2 | |
| 2.27 | -7.00 | 1.73 | -7.00 | -10.42 | 268.49 | 47.55 | 252.93 | 0.7614 | 896.3 | 999999 | |
| 2.45 | 9.08 | 1.90 | 7.02 | -12.92 | 268.64 | 47.70 | 249.82 | 0.7703 | 748.3 | 553.3 | |
| 0.00 | 0.82 | 0.00 | 0.61 | -10.72 | 267.59 | 46.65 | 252.25 | 0.7524 | 666.0 | 580.0 | |
| 1.18 | 180.75 | 0.89 | 135.10 | -12.09 | 267.79 | 46.85 | 250.58 | 0.7587 | 712.6 | -341.0 | |
| 0.00 | 1.27 | 0.00 | 0.95 | -10.90 | 267.40 | 46.46 | 251.96 | 0.7509 | 590.0 | 446.6 | |
| 0.00 | 1.09 | 0.00 | 0.82 | -11.89 | 267.61 | 46.67 | 250.76 | 0.7561 | 654.0 | 435.8 | |
| 0.73 | -17.00 | 0.55 | -17.00 | -12.17 | 267.63 | 46.69 | 250.41 | 0.7572 | 726.6 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.27 | -14.93 | 268.01 | 47.07 | 247.09 | 0.7703 | -462.0 | -406.1 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -8.24 | 266.53 | 45.59 | 255.18 | 0.7336 | 631.0 | 564.1 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -8.13 | 266.25 | 45.31 | 255.23 | 0.7301 | 604.0 | 574.7 | |
| 6.36 | -17.00 | 4.82 | -17.00 | -13.81 | 267.34 | 46.40 | 248.23 | 0.7595 | -608.9 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -7.84 | 266.03 | 45.09 | 255.56 | 0.7268 | 323.0 | 439.4 | |
| 0.00 | 1.45 | 0.00 | 1.05 | -9.02 | 265.95 | 45.01 | 253.95 | 0.7290 | 568.0 | 456.4 | |
| 0.00 | 1.09 | 0.00 | 0.80 | -11.16 | 266.28 | 45.35 | 251.23 | 0.7394 | 222.0 | 135.3 | |
| 23.16 | -17.00 | 17.28 | -17.00 | -13.39 | 266.60 | 45.66 | 248.47 | 0.7502 | -1028.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.15 | -15.06 | 266.04 | 45.10 | 246.13 | 0.7502 | -642.0 | -478.1 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -3.06 | 264.09 | 43.16 | 261.69 | 0.6925 | 596.0 | 544.5 | |
| 0.00 | 1.09 | 0.00 | 0.81 | -15.55 | 265.59 | 44.65 | 245.32 | 0.7474 | -579.0 | -488.2 | |
| 0.00 | 1.00 | 0.00 | 0.73 | -14.02 | 265.06 | 44.12 | 247.04 | 0.7358 | -617.0 | -502.5 | |
| 0.00 | 1.18 | 0.00 | 0.87 | -14.66 | 265.22 | 44.28 | 246.28 | 0.7401 | -559.0 | -485.9 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -14.89 | 265.28 | 44.34 | 246.02 | 0.7416 | -615.0 | -508.0 | |
| 0.00 | 1.73 | 0.00 | 1.24 | -12.66 | 264.62 | 43.68 | 248.63 | 0.7259 | -590.0 | -469.9 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -14.15 | 264.53 | 43.59 | 246.64 | 0.7305 | -487.0 | -459.3 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -13.89 | 263.69 | 42.75 | 246.61 | 0.7202 | -555.0 | -485.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
