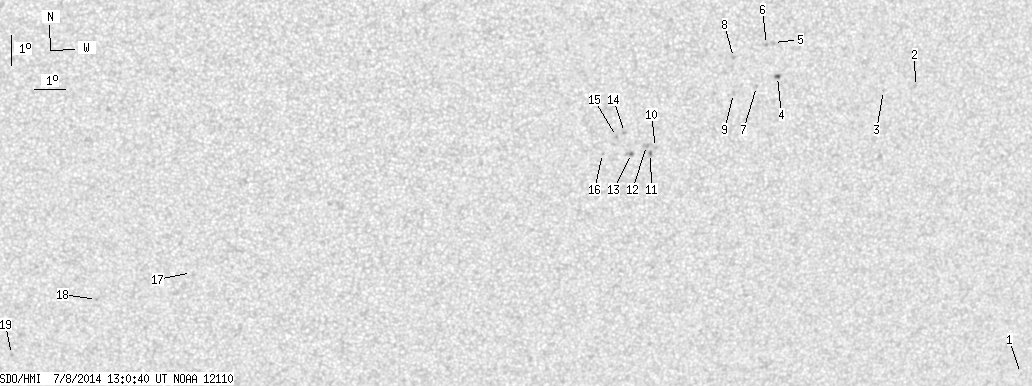

SDO HMI 2014-07-08 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.63 | 31.04 | 0.89 | 17.00 | -16.99 | 233.52 | 12.58 | 210.52 | 0.4237 | -99.9 | -128.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.35 | -25.28 | 247.25 | 26.31 | 219.99 | 0.6259 | -325.0 | -372.7 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -15.55 | 241.92 | 20.98 | 226.72 | 0.4757 | 612.0 | 440.8 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -15.65 | 240.85 | 19.91 | 225.09 | 0.4649 | 663.0 | 547.9 | |
| 1.09 | 2.82 | 0.59 | 1.54 | -15.12 | 237.27 | 16.33 | 220.37 | 0.4209 | 898.6 | 714.3 | |
| 0.00 | 2.00 | 0.00 | 1.08 | -14.03 | 237.06 | 16.12 | 221.80 | 0.4058 | 605.0 | 420.1 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -14.09 | 236.83 | 15.89 | 221.30 | 0.4041 | 878.0 | 677.1 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -15.43 | 236.61 | 15.67 | 218.72 | 0.4179 | 901.0 | 647.4 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -14.48 | 235.79 | 14.85 | 218.74 | 0.3981 | 904.0 | 661.0 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -15.64 | 235.87 | 14.93 | 217.07 | 0.4133 | 785.0 | 624.3 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -17.35 | 233.44 | 12.50 | 210.05 | 0.4142 | -574.0 | -471.4 | |
| 0.00 | 2.09 | 0.00 | 1.14 | -17.55 | 233.29 | 12.35 | 209.51 | 0.4157 | -853.0 | -702.3 | |
| 0.00 | 3.72 | 0.00 | 2.02 | -17.28 | 233.14 | 12.20 | 209.54 | 0.4109 | -749.0 | -596.7 | |
| 0.54 | 3.36 | 0.30 | 1.82 | -17.54 | 232.66 | 11.72 | 208.28 | 0.4107 | -950.0 | -715.4 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -16.85 | 232.39 | 11.45 | 208.57 | 0.3991 | -844.0 | -715.8 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -16.98 | 232.14 | 11.20 | 207.88 | 0.3989 | -925.0 | -771.8 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -17.53 | 231.72 | 10.78 | 206.34 | 0.4036 | -560.0 | -562.4 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -21.39 | 218.45 | -2.49 | 174.55 | 0.4269 | -207.0 | -344.0 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -22.31 | 215.30 | -5.64 | 168.26 | 0.4488 | -765.0 | -593.6 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -24.22 | 212.35 | -8.59 | 163.73 | 0.4882 | -728.0 | -590.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
