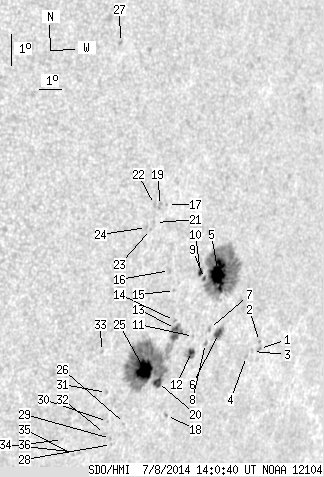

SDO HMI 2014-07-08 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.67 | 365.91 | 50.71 | 281.47 | -12.03 | 268.00 | 47.61 | 250.88 | 0.7669 | 165.0 | -42.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 1.83 | -12.99 | 271.99 | 51.60 | 251.00 | 0.8098 | 585.0 | 435.7 | |
| 0.00 | 1.00 | 0.00 | 0.84 | -12.77 | 271.92 | 51.53 | 251.25 | 0.8086 | 581.0 | 535.5 | |
| 0.00 | 1.45 | 0.00 | 1.21 | -13.07 | 271.66 | 51.27 | 250.81 | 0.8068 | 552.0 | 509.8 | |
| 0.00 | 1.82 | 0.00 | 1.51 | -13.21 | 271.40 | 51.01 | 250.55 | 0.8046 | 542.0 | 457.8 | |
| 27.79 | 141.40 | 21.77 | 111.07 | -10.52 | 269.36 | 48.97 | 253.24 | 0.7769 | 966.3 | 179.5 | |
| 4.00 | 9.54 | 3.19 | 7.62 | -12.40 | 269.80 | 49.41 | 251.04 | 0.7865 | 646.8 | 384.9 | |
| 0.00 | 1.45 | 0.00 | 1.15 | -12.22 | 269.32 | 48.94 | 251.11 | 0.7811 | 621.0 | 570.8 | |
| 0.00 | 1.63 | 0.00 | 1.29 | -12.69 | 269.25 | 48.86 | 250.50 | 0.7817 | 486.0 | 456.0 | |
| 0.91 | -5.00 | 0.70 | -5.00 | -10.62 | 268.72 | 48.33 | 252.92 | 0.7703 | 639.1 | 999999 | |
| 2.18 | 3.72 | 1.68 | 2.86 | -10.42 | 268.49 | 48.10 | 253.11 | 0.7673 | 815.2 | 676.5 | |
| 0.00 | 0.82 | 0.00 | 0.64 | -12.44 | 268.62 | 48.23 | 250.60 | 0.7744 | 558.0 | 474.0 | |
| 2.54 | 8.72 | 1.99 | 6.82 | -12.92 | 268.64 | 48.26 | 250.02 | 0.7761 | 767.8 | 577.5 | |
| 1.91 | 165.11 | 1.46 | 124.65 | -12.14 | 267.71 | 47.32 | 250.67 | 0.7639 | 762.7 | -358.4 | |
| 0.00 | 1.36 | 0.00 | 1.04 | -11.88 | 267.60 | 47.21 | 250.96 | 0.7620 | 543.0 | 486.9 | |
| 0.00 | 0.91 | 0.00 | 0.69 | -10.93 | 267.39 | 47.01 | 252.11 | 0.7569 | 635.0 | 497.5 | |
| 0.00 | 3.00 | 0.00 | 2.24 | -10.29 | 267.04 | 46.65 | 252.82 | 0.7512 | 319.0 | 261.2 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -8.20 | 266.59 | 46.21 | 255.40 | 0.7406 | 558.0 | 527.9 | |
| 0.00 | 1.18 | 0.00 | 0.92 | -14.92 | 268.02 | 47.63 | 247.31 | 0.7760 | -443.0 | -377.8 | |
| 0.00 | 2.72 | 0.00 | 1.99 | -8.22 | 266.28 | 45.90 | 255.29 | 0.7371 | 609.0 | 616.4 | |
| 5.09 | -13.00 | 3.90 | -13.00 | -13.83 | 267.30 | 46.91 | 248.39 | 0.7650 | -676.5 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -8.74 | 266.14 | 45.75 | 254.55 | 0.7368 | 562.0 | 586.1 | |
| 0.00 | 2.00 | 0.00 | 1.45 | -8.18 | 266.01 | 45.62 | 255.27 | 0.7338 | 608.0 | 554.8 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -8.95 | 265.95 | 45.57 | 254.22 | 0.7353 | 576.0 | 527.0 | |
| 0.00 | 1.36 | 0.00 | 0.99 | -8.88 | 265.76 | 45.38 | 254.25 | 0.7329 | 605.0 | 484.9 | |
| 21.25 | -13.00 | 16.02 | -13.00 | -13.39 | 266.59 | 46.20 | 248.69 | 0.7560 | -1016.7 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.69 | -15.09 | 266.12 | 45.74 | 246.36 | 0.7571 | -577.0 | -497.3 | |
| 0.00 | 1.73 | 0.00 | 1.19 | -3.09 | 264.05 | 43.66 | 261.77 | 0.6988 | 585.0 | 448.6 | |
| 0.00 | 0.82 | 0.00 | 0.62 | -15.74 | 265.72 | 45.33 | 245.37 | 0.7553 | -575.0 | -473.0 | |
| 0.00 | 1.09 | 0.00 | 0.82 | -15.54 | 265.62 | 45.23 | 245.57 | 0.7535 | -573.0 | -492.9 | |
| 0.00 | 0.82 | 0.00 | 0.61 | -14.98 | 265.33 | 44.94 | 246.16 | 0.7483 | -547.0 | -529.4 | |
| 0.00 | 1.18 | 0.00 | 0.87 | -14.04 | 265.04 | 44.66 | 247.23 | 0.7417 | -599.0 | -547.7 | |
| 0.00 | 1.18 | 0.00 | 0.88 | -15.37 | 265.30 | 44.91 | 245.66 | 0.7495 | -628.0 | -506.8 | |
| 0.00 | 1.18 | 0.00 | 0.85 | -12.72 | 264.51 | 44.13 | 248.74 | 0.7311 | -272.0 | -374.0 | |
| 0.00 | 1.63 | 0.00 | 1.20 | -15.93 | 264.30 | 43.91 | 244.50 | 0.7411 | -71.0 | -167.1 | |
| 0.00 | 1.18 | 0.00 | 0.87 | -15.99 | 264.09 | 43.70 | 244.34 | 0.7392 | -311.0 | -309.5 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -15.47 | 263.47 | 43.09 | 244.70 | 0.7304 | -574.0 | -553.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
