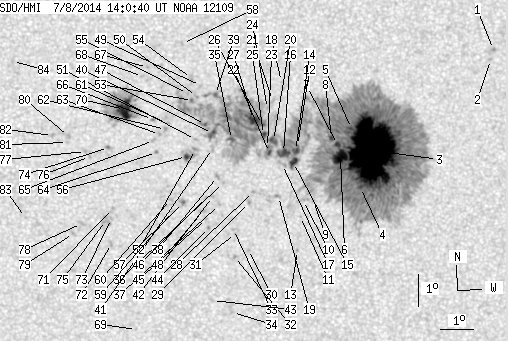

SDO HMI 2014-07-08 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 297.06 | 1802.64 | 150.30 | 912.29 | -7.83 | 220.74 | 0.35 | 181.74 | 0.2042 | 677.2 | 216.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 0.91 | -4.80 | 225.77 | 5.38 | 212.49 | 0.1748 | 1043.0 | 859.3 | |
| 0.00 | 1.63 | 0.00 | 0.82 | -5.11 | 225.68 | 5.29 | 211.13 | 0.1785 | 858.0 | 627.4 | |
| 209.52 | 1586.77 | 106.01 | 802.71 | -7.91 | 222.07 | 1.68 | 188.25 | 0.2034 | 1643.1 | 322.6 | |
| 1.18 | -3.00 | 0.60 | -3.00 | -9.06 | 221.70 | 1.31 | 185.87 | 0.2222 | 854.3 | 999999 | |
| 0.27 | -3.00 | 0.14 | -3.00 | -7.22 | 221.42 | 1.03 | 185.42 | 0.1904 | 1315.0 | 999999 | |
| 15.26 | -3.00 | 7.72 | -3.00 | -8.09 | 221.08 | 0.70 | 183.38 | 0.2048 | 1275.9 | 999999 | |
| 3.00 | -3.00 | 1.51 | -3.00 | -7.72 | 220.99 | 0.60 | 183.03 | 0.1983 | 1113.2 | 999999 | |
| 2.45 | -3.00 | 1.24 | -3.00 | -7.50 | 220.81 | 0.42 | 182.15 | 0.1945 | 987.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -9.46 | 220.25 | -0.14 | 179.40 | 0.2280 | 913.0 | 761.2 | |
| 0.00 | 4.63 | 0.00 | 2.36 | -9.46 | 219.94 | -0.45 | 178.06 | 0.2281 | 661.0 | 480.1 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -9.96 | 219.85 | -0.54 | 177.74 | 0.2367 | -587.0 | -418.6 | |
| 0.27 | -3.00 | 0.14 | -3.00 | -7.75 | 219.76 | -0.63 | 176.86 | 0.1989 | 959.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -11.03 | 219.75 | -0.64 | 177.54 | 0.2549 | -778.0 | -601.2 | |
| 3.81 | -3.00 | 1.93 | -3.00 | -7.90 | 219.70 | -0.69 | 176.60 | 0.2016 | 1372.7 | 999999 | |
| 5.36 | -3.00 | 2.71 | -3.00 | -8.28 | 219.64 | -0.75 | 176.41 | 0.2081 | 1115.8 | 999999 | |
| 7.99 | -3.00 | 4.04 | -3.00 | -7.97 | 219.33 | -1.06 | 174.81 | 0.2031 | 1125.2 | 999999 | |
| 0.00 | 3.91 | 0.00 | 1.98 | -8.34 | 219.30 | -1.09 | 174.82 | 0.2096 | 750.0 | 643.3 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -5.76 | 219.28 | -1.11 | 173.27 | 0.1655 | -608.0 | -444.9 | |
| 0.00 | 2.63 | 0.00 | 1.34 | -9.34 | 219.17 | -1.22 | 174.67 | 0.2268 | -780.0 | -649.7 | |
| 3.63 | -3.00 | 1.84 | -3.00 | -7.59 | 219.02 | -1.36 | 173.10 | 0.1973 | 1139.8 | 999999 | |
| 0.00 | 3.09 | 0.00 | 1.55 | -6.35 | 219.00 | -1.39 | 172.10 | 0.1762 | -6.0 | 115.0 | |
| 1.63 | -3.00 | 0.83 | -3.00 | -7.97 | 218.90 | -1.49 | 172.72 | 0.2039 | 1060.4 | 999999 | |
| 0.45 | -3.00 | 0.23 | -3.00 | -7.81 | 218.84 | -1.55 | 172.32 | 0.2014 | -207.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -6.60 | 218.84 | -1.54 | 171.45 | 0.1808 | 239.0 | 287.1 | |
| 2.36 | -3.00 | 1.19 | -3.00 | -7.41 | 218.72 | -1.67 | 171.43 | 0.1948 | 1059.4 | 999999 | |
| 1.27 | -3.00 | 0.64 | -3.00 | -7.10 | 218.69 | -1.70 | 171.03 | 0.1897 | 1272.5 | 999999 | |
| 7.45 | -3.00 | 3.76 | -3.00 | -6.94 | 218.41 | -1.97 | 169.46 | 0.1878 | 1152.0 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -9.18 | 218.40 | -1.99 | 171.23 | 0.2258 | -1010.0 | -792.5 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -9.53 | 218.24 | -2.15 | 170.80 | 0.2320 | -814.0 | -731.8 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -11.00 | 218.23 | -2.16 | 171.69 | 0.2568 | -765.0 | -765.4 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -10.50 | 217.83 | -2.56 | 169.83 | 0.2495 | -729.0 | -665.2 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -11.22 | 217.79 | -2.59 | 170.18 | 0.2617 | -888.0 | -716.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.37 | 217.77 | -2.62 | 169.50 | 0.2475 | -965.0 | -737.1 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -13.00 | 217.71 | -2.68 | 170.97 | 0.2913 | -672.0 | -586.1 | |
| 1.82 | -3.00 | 0.92 | -3.00 | -7.56 | 217.73 | -2.66 | 166.71 | 0.2007 | -878.7 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -8.90 | 217.47 | -2.91 | 166.99 | 0.2240 | -848.0 | -704.7 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.59 | 217.34 | -3.04 | 167.12 | 0.2360 | -824.0 | -632.2 | |
| 0.00 | 2.63 | 0.00 | 1.34 | -8.72 | 217.29 | -3.10 | 166.00 | 0.2217 | -945.0 | -803.0 | |
| 0.91 | -3.00 | 0.46 | -3.00 | -6.17 | 217.25 | -3.14 | 162.30 | 0.1798 | -1042.4 | 999999 | |
| 3.36 | -3.00 | 1.70 | -3.00 | -7.38 | 217.15 | -3.24 | 163.67 | 0.2002 | -1031.0 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.43 | -7.84 | 217.14 | -3.24 | 164.29 | 0.2079 | 37.0 | -16.7 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -9.34 | 217.13 | -3.26 | 165.99 | 0.2327 | -955.0 | -707.9 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -12.62 | 217.09 | -3.30 | 168.67 | 0.2869 | -770.0 | -512.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -10.31 | 216.99 | -3.39 | 166.43 | 0.2493 | -834.0 | -692.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.03 | 216.94 | -3.45 | 165.93 | 0.2449 | -853.0 | -689.0 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -9.37 | 216.94 | -3.44 | 165.26 | 0.2340 | -860.0 | -577.7 | |
| 0.91 | -3.00 | 0.46 | -3.00 | -7.10 | 216.94 | -3.45 | 162.24 | 0.1967 | -1077.3 | 999999 | |
| 0.00 | 3.27 | 0.00 | 1.67 | -9.81 | 216.82 | -3.57 | 165.22 | 0.2418 | -949.0 | -687.8 | |
| 0.00 | 1.82 | 0.00 | 0.91 | -5.89 | 216.79 | -3.59 | 159.37 | 0.1779 | -776.0 | -595.2 | |
| 0.00 | 2.00 | 0.00 | 1.01 | -6.23 | 216.67 | -3.72 | 159.39 | 0.1841 | -904.0 | -703.0 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -7.57 | 216.62 | -3.76 | 161.50 | 0.2059 | -961.0 | -778.9 | |
| 0.00 | 2.27 | 0.00 | 1.15 | -7.88 | 216.62 | -3.77 | 161.96 | 0.2110 | -1004.0 | -850.4 | |
| 0.00 | 2.18 | 0.00 | 1.10 | -6.36 | 216.54 | -3.84 | 159.01 | 0.1869 | -1227.0 | -1047.0 | |
| 0.00 | 3.09 | 0.00 | 1.55 | -5.68 | 216.52 | -3.87 | 157.48 | 0.1761 | -849.0 | -678.5 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -6.14 | 216.39 | -4.00 | 157.82 | 0.1844 | -980.0 | -804.2 | |
| 2.36 | 11.35 | 1.20 | 5.76 | -8.09 | 216.34 | -4.05 | 161.05 | 0.2161 | -1063.7 | -802.8 | |
| 0.64 | 3.09 | 0.32 | 1.58 | -9.53 | 216.23 | -4.16 | 162.59 | 0.2399 | -1073.7 | -869.3 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -4.60 | 216.25 | -4.14 | 153.36 | 0.1611 | -765.0 | -641.8 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -9.81 | 215.89 | -4.50 | 161.61 | 0.2463 | -675.0 | -453.4 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -9.44 | 215.83 | -4.56 | 160.89 | 0.2406 | -920.0 | -730.5 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -7.07 | 215.77 | -4.62 | 156.73 | 0.2033 | -795.0 | -636.8 | |
| 0.00 | 2.54 | 0.00 | 1.29 | -7.26 | 215.70 | -4.68 | 156.81 | 0.2066 | -955.0 | -768.1 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -7.41 | 215.52 | -4.87 | 156.29 | 0.2104 | -872.0 | -735.4 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -7.97 | 215.42 | -4.97 | 156.91 | 0.2198 | -1123.0 | -844.5 | |
| 0.00 | 2.00 | 0.00 | 1.01 | -7.60 | 215.33 | -5.06 | 155.85 | 0.2146 | -973.0 | -843.0 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -6.95 | 215.31 | -5.08 | 154.43 | 0.2046 | -836.0 | -647.3 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -5.34 | 215.17 | -5.22 | 149.89 | 0.1813 | -835.0 | -596.2 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -5.62 | 215.01 | -5.37 | 149.92 | 0.1868 | -927.0 | -688.5 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -13.55 | 214.69 | -5.70 | 161.90 | 0.3122 | -604.0 | -435.0 | |
| 21.16 | 91.45 | 10.71 | 46.30 | -6.64 | 214.45 | -5.94 | 150.05 | 0.2068 | -1245.3 | -489.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -9.73 | 214.02 | -6.36 | 154.70 | 0.2567 | -826.0 | -707.3 | |
| 0.00 | 2.18 | 0.00 | 1.12 | -10.83 | 213.97 | -6.42 | 156.26 | 0.2740 | -736.0 | -590.3 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -10.04 | 213.99 | -6.40 | 155.09 | 0.2618 | -900.0 | -733.2 | |
| 0.00 | 2.36 | 0.00 | 1.20 | -7.83 | 213.93 | -6.45 | 150.73 | 0.2287 | -1111.0 | -719.4 | |
| 0.00 | 5.63 | 0.00 | 2.89 | -10.11 | 213.80 | -6.59 | 154.55 | 0.2641 | -905.0 | -740.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -8.11 | 213.34 | -7.05 | 149.16 | 0.2380 | -847.0 | -693.9 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -7.96 | 213.22 | -7.17 | 148.38 | 0.2368 | -760.0 | -584.0 | |
| 0.00 | 3.27 | 0.00 | 1.68 | -10.21 | 213.05 | -7.34 | 152.25 | 0.2713 | -881.0 | -689.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -10.52 | 212.79 | -7.60 | 151.98 | 0.2780 | -807.0 | -649.1 | |
| 0.00 | 2.82 | 0.00 | 1.43 | -7.49 | 212.70 | -7.69 | 145.47 | 0.2350 | -856.0 | -771.7 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -7.68 | 212.67 | -7.72 | 145.81 | 0.2380 | -807.0 | -696.0 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -7.47 | 212.21 | -8.18 | 143.72 | 0.2395 | -785.0 | -659.6 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -10.03 | 211.30 | -9.09 | 146.59 | 0.2837 | -641.0 | -625.5 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -5.19 | 211.01 | -9.38 | 133.27 | 0.2240 | -775.0 | -544.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
