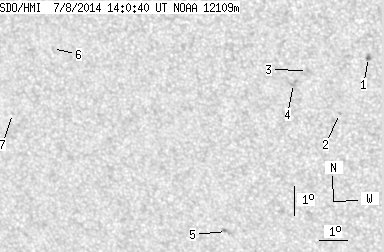

SDO HMI 2014-07-08 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.26 | 0.00 | 9.54 | -23.10 | 201.95 | -18.43 | 147.22 | 0.5360 | 6.4 | 106.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.72 | 0.00 | 1.53 | -20.92 | 206.01 | -14.37 | 150.75 | 0.4765 | 1023.0 | 781.1 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -22.83 | 204.82 | -15.57 | 150.87 | 0.5101 | -711.0 | -529.2 | |
| 0.00 | 2.27 | 0.00 | 1.30 | -21.39 | 203.89 | -16.49 | 147.87 | 0.4990 | 730.0 | 387.8 | |
| 0.00 | 4.18 | 0.00 | 2.40 | -21.84 | 203.36 | -17.03 | 147.57 | 0.5089 | 777.0 | 701.1 | |
| 0.00 | 4.18 | 0.00 | 2.57 | -27.02 | 200.18 | -20.20 | 148.73 | 0.5949 | -669.0 | -603.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -20.86 | 195.04 | -25.35 | 135.64 | 0.5744 | -559.0 | -439.7 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -23.11 | 193.11 | -27.27 | 136.48 | 0.6142 | -546.0 | -436.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
