SDO HMI 2014-07-08 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.88 | 116.79 | 38.77 | 203.73 | -19.29 | 149.91 | -70.48 | 111.46 | 0.9571 | 380.8 | -77.4 | |
|
previous
or next observation for the same group /

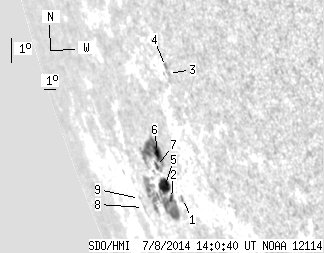

back to the solar disc SDO HMI 2014-07-08 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.27 | 0.00 | 3.64 | -20.00 | 151.11 | -69.28 | 112.42 | 0.9521 | 240.0 | 291.6 | |
| 2.27 | 68.57 | 3.86 | 122.30 | -20.07 | 149.99 | -70.40 | 112.28 | 0.9575 | 280.0 | -173.3 | |
| 0.00 | 0.91 | 0.00 | 1.26 | -15.81 | 153.32 | -67.06 | 108.46 | 0.9357 | 343.0 | 268.0 | |
| 0.00 | 2.45 | 0.00 | 3.41 | -15.59 | 153.22 | -67.16 | 108.21 | 0.9360 | 489.0 | 400.4 | |
| 11.99 | -2.00 | 20.53 | -2.00 | -19.70 | 149.69 | -70.70 | 111.84 | 0.9586 | 355.1 | 999999 | |
| 7.08 | 41.59 | 11.74 | 71.00 | -18.56 | 150.13 | -70.25 | 110.75 | 0.9554 | 596.1 | 38.0 | |
| 1.54 | -6.00 | 2.64 | -6.00 | -19.05 | 149.55 | -70.83 | 111.16 | 0.9586 | 338.5 | 999999 | |
| 0.00 | 0.73 | 0.00 | 1.54 | -20.60 | 146.34 | -74.05 | 112.21 | 0.9732 | -322.0 | -327.8 | |
| 0.00 | 0.27 | 0.00 | 0.58 | -20.31 | 146.25 | -74.14 | 111.90 | 0.9734 | -346.0 | -358.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
