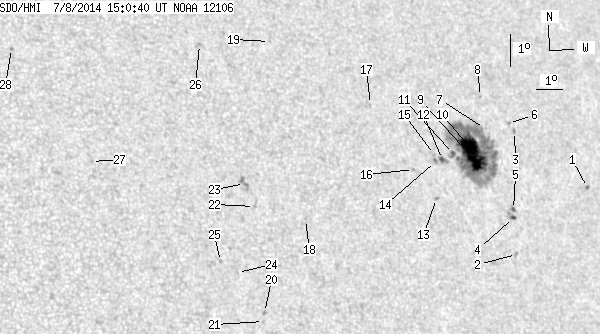

SDO HMI 2014-07-08 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.66 | 257.63 | 35.67 | 173.13 | 14.84 | 261.34 | 41.51 | 288.15 | 0.6759 | -545.8 | -245.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 1.73 | 0.40 | 1.26 | 13.68 | 266.69 | 46.86 | 285.27 | 0.7372 | -632.2 | -527.1 | |
| 0.00 | 2.27 | 0.00 | 1.55 | 11.76 | 263.10 | 43.27 | 283.25 | 0.6916 | -650.0 | -547.7 | |
| 0.00 | 2.00 | 0.00 | 1.40 | 15.55 | 263.90 | 44.07 | 288.44 | 0.7086 | 573.0 | 421.0 | |
| 1.18 | 4.63 | 0.81 | 3.18 | 12.90 | 263.21 | 43.38 | 284.86 | 0.6949 | -856.6 | -676.7 | |
| 0.64 | 1.63 | 0.44 | 1.12 | 13.15 | 263.26 | 43.43 | 285.20 | 0.6960 | -784.3 | -702.7 | |
| 0.00 | 1.27 | 0.00 | 0.89 | 15.81 | 263.71 | 43.88 | 288.85 | 0.7070 | 383.0 | 431.5 | |
| 0.00 | 1.00 | 0.00 | 0.69 | 15.70 | 262.63 | 42.80 | 288.99 | 0.6940 | -109.0 | -143.4 | |
| 0.00 | 0.91 | 0.00 | 0.63 | 16.70 | 262.73 | 42.90 | 290.37 | 0.6977 | 474.0 | 422.0 | |
| 20.70 | 213.85 | 14.03 | 144.87 | 14.70 | 262.03 | 42.20 | 287.71 | 0.6844 | -1023.8 | -302.3 | |
| 26.70 | -9.00 | 18.06 | -9.00 | 15.17 | 261.85 | 42.02 | 288.44 | 0.6833 | -1002.2 | 999999 | |
| 1.36 | -9.00 | 0.91 | -9.00 | 14.98 | 261.13 | 41.29 | 288.37 | 0.6740 | -821.1 | 999999 | |
| 1.54 | 4.18 | 1.02 | 2.77 | 14.82 | 260.63 | 40.79 | 288.27 | 0.6674 | -811.0 | -713.1 | |
| 0.00 | 1.45 | 0.00 | 0.95 | 13.62 | 260.12 | 40.28 | 286.64 | 0.6581 | -804.0 | -657.3 | |
| 0.00 | 2.00 | 0.00 | 1.32 | 14.77 | 260.32 | 40.49 | 288.29 | 0.6635 | -656.0 | -622.5 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 14.99 | 260.33 | 40.50 | 288.61 | 0.6642 | -675.0 | -521.0 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 14.56 | 259.37 | 39.54 | 288.26 | 0.6510 | -764.0 | -599.8 | |
| 0.00 | 0.73 | 0.00 | 0.47 | 16.64 | 258.09 | 38.26 | 291.85 | 0.6414 | 580.0 | 507.0 | |
| 0.00 | 0.64 | 0.00 | 0.39 | 13.18 | 254.83 | 35.00 | 287.55 | 0.5879 | 621.0 | 439.1 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 18.76 | 254.57 | 34.73 | 296.71 | 0.6061 | -512.0 | -460.6 | |
| 0.00 | 1.82 | 0.00 | 1.08 | 10.38 | 252.89 | 33.06 | 283.33 | 0.5535 | 723.0 | 549.0 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 10.10 | 252.82 | 32.99 | 282.86 | 0.5519 | 645.0 | 499.8 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 13.65 | 252.98 | 33.14 | 289.06 | 0.5643 | 745.0 | 592.5 | |
| 0.00 | 5.99 | 0.00 | 3.59 | 14.37 | 252.72 | 32.89 | 290.42 | 0.5634 | 760.0 | 655.3 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 11.64 | 252.05 | 32.22 | 285.87 | 0.5450 | 562.0 | 457.9 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 12.00 | 251.47 | 31.64 | 286.74 | 0.5379 | 697.0 | 601.5 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 18.76 | 251.86 | 32.03 | 298.25 | 0.5722 | 633.0 | 537.4 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 15.23 | 247.27 | 27.43 | 295.03 | 0.4926 | 690.0 | 595.0 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 18.85 | 244.97 | 25.14 | 303.66 | 0.4850 | 808.0 | 691.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
