SDO HMI 2014-07-08 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 305.38 | 1807.61 | 154.51 | 914.77 | -7.82 | 220.79 | 0.95 | 184.55 | 0.2042 | 736.9 | 228.9 | |
|
previous
or next observation for the same group /

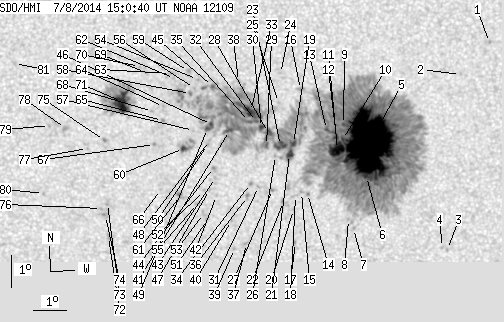

back to the solar disc SDO HMI 2014-07-08 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.59 | -4.83 | 225.74 | 5.90 | 214.83 | 0.1802 | 989.0 | 887.0 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -5.81 | 224.85 | 5.02 | 207.92 | 0.1868 | 785.0 | 657.1 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -11.27 | 224.51 | 4.68 | 197.27 | 0.2707 | 773.0 | 596.1 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -11.20 | 224.36 | 4.52 | 196.80 | 0.2689 | 821.0 | 627.5 | |
| 205.14 | 1617.65 | 103.82 | 818.45 | -7.91 | 222.07 | 2.23 | 190.91 | 0.2050 | 1661.2 | 319.6 | |
| 0.27 | -5.00 | 0.14 | -5.00 | -8.96 | 221.98 | 2.15 | 189.61 | 0.2226 | 1217.7 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -10.59 | 221.59 | 1.75 | 186.96 | 0.2490 | -277.0 | -284.6 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -10.31 | 221.43 | 1.60 | 186.48 | 0.2440 | 360.0 | 224.7 | |
| 1.27 | -5.00 | 0.64 | -5.00 | -7.34 | 221.27 | 1.43 | 187.41 | 0.1933 | 1121.6 | 999999 | |
| 2.54 | -5.00 | 1.29 | -5.00 | -7.81 | 221.24 | 1.40 | 186.96 | 0.2011 | 1235.2 | 999999 | |
| 15.44 | -5.00 | 7.81 | -5.00 | -8.12 | 221.08 | 1.25 | 186.04 | 0.2061 | 1281.1 | 999999 | |
| 1.82 | -5.00 | 0.92 | -5.00 | -7.75 | 221.05 | 1.22 | 186.08 | 0.1997 | 1136.2 | 999999 | |
| 1.27 | -5.00 | 0.64 | -5.00 | -7.50 | 220.74 | 0.91 | 184.66 | 0.1950 | 1039.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -9.49 | 220.16 | 0.33 | 181.41 | 0.2285 | 891.0 | 777.3 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -9.46 | 219.97 | 0.14 | 180.61 | 0.2280 | 806.0 | 587.3 | |
| 0.00 | 4.09 | 0.00 | 2.06 | -6.26 | 219.95 | 0.11 | 180.65 | 0.1729 | 236.0 | 136.0 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -11.03 | 219.79 | -0.05 | 179.82 | 0.2546 | -819.0 | -583.3 | |
| 0.00 | 2.27 | 0.00 | 1.16 | -9.55 | 219.79 | -0.04 | 179.81 | 0.2295 | 487.0 | 418.8 | |
| 3.72 | -5.00 | 1.88 | -5.00 | -7.93 | 219.73 | -0.10 | 179.49 | 0.2018 | 1389.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.99 | 219.73 | -0.11 | 179.55 | 0.2370 | -616.0 | -340.1 | |
| 5.27 | -5.00 | 2.67 | -5.00 | -8.27 | 219.61 | -0.23 | 178.91 | 0.2077 | 1144.3 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -9.74 | 219.42 | -0.42 | 178.23 | 0.2328 | -742.0 | -522.5 | |
| 7.81 | -5.00 | 3.95 | -5.00 | -7.99 | 219.33 | -0.50 | 177.53 | 0.2030 | 1135.8 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.27 | -5.76 | 219.33 | -0.50 | 176.97 | 0.1646 | -866.0 | -655.3 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -6.66 | 219.27 | -0.56 | 176.88 | 0.1801 | 203.0 | 216.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.30 | 219.18 | -0.66 | 176.86 | 0.2085 | 779.0 | 641.9 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -9.37 | 219.08 | -0.75 | 176.70 | 0.2267 | -788.0 | -657.8 | |
| 3.18 | -5.00 | 1.61 | -5.00 | -7.59 | 218.96 | -0.87 | 175.58 | 0.1965 | 1122.7 | 999999 | |
| 1.36 | -5.00 | 0.69 | -5.00 | -7.99 | 218.90 | -0.93 | 175.43 | 0.2035 | 1137.9 | 999999 | |
| 2.72 | -5.00 | 1.38 | -5.00 | -7.43 | 218.75 | -1.09 | 174.42 | 0.1941 | 1068.5 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -9.27 | 218.65 | -1.19 | 174.78 | 0.2256 | -755.0 | -596.8 | |
| 1.18 | -5.00 | 0.60 | -5.00 | -7.25 | 218.59 | -1.24 | 173.53 | 0.1912 | 756.3 | 999999 | |
| 16.98 | -5.00 | 8.56 | -5.00 | -6.94 | 218.41 | -1.42 | 172.36 | 0.1863 | 1059.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -9.18 | 218.40 | -1.43 | 173.66 | 0.2245 | -977.0 | -823.3 | |
| 1.09 | -5.00 | 0.55 | -5.00 | -7.25 | 218.38 | -1.45 | 172.42 | 0.1917 | 150.1 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.29 | -9.58 | 218.31 | -1.53 | 173.45 | 0.2316 | -843.0 | -663.1 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -11.06 | 218.27 | -1.57 | 173.96 | 0.2566 | -1004.0 | -697.7 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -6.01 | 218.05 | -1.79 | 169.54 | 0.1715 | -840.0 | -636.9 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -11.22 | 217.89 | -1.94 | 172.62 | 0.2600 | -920.0 | -743.3 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -10.34 | 217.81 | -2.03 | 171.81 | 0.2454 | -839.0 | -681.7 | |
| 3.63 | -5.00 | 1.84 | -5.00 | -7.53 | 217.76 | -2.07 | 169.53 | 0.1981 | -704.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.55 | 217.35 | -2.49 | 169.40 | 0.2335 | -861.0 | -679.6 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -8.99 | 217.32 | -2.51 | 168.81 | 0.2241 | -762.0 | -545.3 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -8.68 | 217.26 | -2.57 | 168.27 | 0.2191 | -1093.0 | -818.6 | |
| 0.82 | -5.00 | 0.41 | -5.00 | -6.16 | 217.25 | -2.58 | 165.27 | 0.1771 | -1053.7 | 999999 | |
| 1.36 | -5.00 | 0.69 | -5.00 | -7.34 | 217.21 | -2.62 | 166.61 | 0.1969 | -1083.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.37 | 217.13 | -2.70 | 168.34 | 0.2310 | -961.0 | -769.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.84 | 217.15 | -2.69 | 166.87 | 0.2055 | -51.0 | -108.2 | |
| 2.27 | -5.00 | 1.15 | -5.00 | -7.47 | 217.09 | -2.75 | 166.16 | 0.1995 | -912.6 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -7.96 | 217.08 | -2.75 | 166.72 | 0.2078 | 287.0 | 127.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -10.31 | 217.06 | -2.77 | 168.84 | 0.2470 | -749.0 | -629.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -9.40 | 216.98 | -2.86 | 167.72 | 0.2321 | -853.0 | -681.8 | |
| 0.00 | 2.36 | 0.00 | 1.21 | -10.12 | 216.94 | -2.89 | 168.21 | 0.2442 | -639.0 | -672.5 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -5.95 | 216.79 | -3.04 | 162.43 | 0.1757 | -913.0 | -740.4 | |
| 0.00 | 2.54 | 0.00 | 1.30 | -9.81 | 216.76 | -3.08 | 167.20 | 0.2397 | -813.0 | -624.7 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -6.23 | 216.70 | -3.14 | 162.40 | 0.1808 | -927.0 | -716.5 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -7.53 | 216.66 | -3.18 | 164.17 | 0.2024 | -625.0 | -614.2 | |
| 0.00 | 2.27 | 0.00 | 1.14 | -6.38 | 216.57 | -3.26 | 162.02 | 0.1840 | -1328.0 | -1021.2 | |
| 0.00 | 2.18 | 0.00 | 1.10 | -5.70 | 216.52 | -3.32 | 160.49 | 0.1732 | -953.0 | -806.6 | |
| 2.45 | 13.44 | 1.24 | 6.81 | -8.09 | 216.34 | -3.49 | 163.49 | 0.2131 | -1020.9 | -830.9 | |
| 0.00 | 3.90 | 0.00 | 1.99 | -9.56 | 216.23 | -3.60 | 164.83 | 0.2377 | -1077.0 | -866.1 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -5.92 | 216.09 | -3.75 | 158.63 | 0.1793 | -715.0 | -646.2 | |
| 0.00 | 3.81 | 0.00 | 1.92 | -5.77 | 215.96 | -3.87 | 157.68 | 0.1776 | -852.0 | -611.4 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -6.79 | 215.74 | -4.09 | 158.62 | 0.1954 | -1088.0 | -888.7 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -7.22 | 215.70 | -4.13 | 159.25 | 0.2025 | -1066.0 | -886.2 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -9.37 | 215.62 | -4.22 | 162.15 | 0.2377 | -803.0 | -694.9 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -7.97 | 215.45 | -4.38 | 159.39 | 0.2160 | -1117.0 | -834.6 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -6.94 | 215.40 | -4.43 | 157.33 | 0.2000 | -844.0 | -586.4 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -5.74 | 215.20 | -4.64 | 153.73 | 0.1826 | -952.0 | -781.1 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -5.55 | 215.01 | -4.82 | 152.38 | 0.1812 | -841.0 | -731.4 | |
| 23.79 | 81.73 | 12.03 | 41.33 | -6.64 | 214.45 | -5.39 | 152.41 | 0.2022 | -1227.7 | -524.4 | |
| 0.00 | 2.27 | 0.00 | 1.17 | -10.85 | 213.98 | -5.86 | 158.17 | 0.2707 | -846.0 | -711.2 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -9.82 | 213.97 | -5.87 | 156.59 | 0.2547 | -827.0 | -812.8 | |
| 0.00 | 2.54 | 0.00 | 1.30 | -10.19 | 213.90 | -5.94 | 156.93 | 0.2610 | -786.0 | -748.8 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -7.85 | 213.91 | -5.93 | 152.81 | 0.2249 | -1111.0 | -900.1 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -9.97 | 213.78 | -6.06 | 156.17 | 0.2584 | -751.0 | -611.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.10 | 213.38 | -6.46 | 151.30 | 0.2329 | -856.0 | -708.1 | |
| 0.00 | 3.00 | 0.00 | 1.53 | -7.49 | 212.71 | -7.13 | 147.45 | 0.2297 | -1014.0 | -828.4 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.40 | 212.21 | -7.62 | 145.47 | 0.2331 | -703.0 | -652.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -9.52 | 211.98 | -7.85 | 149.34 | 0.2654 | -813.0 | -628.2 | |
| 0.00 | 2.27 | 0.00 | 1.15 | -5.48 | 211.16 | -8.67 | 136.49 | 0.2190 | -819.0 | -645.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
