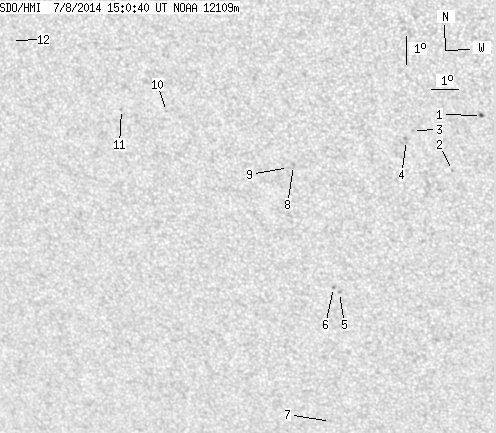

SDO HMI 2014-07-08 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.82 | 15.90 | 0.46 | 9.41 | -23.36 | 200.41 | -19.43 | 146.10 | 0.5483 | 3.1 | 100.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.82 | 1.73 | 0.46 | 0.97 | -20.94 | 206.06 | -13.77 | 151.80 | 0.4723 | 807.7 | 717.5 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -22.82 | 204.88 | -14.95 | 151.82 | 0.5055 | -517.0 | -479.1 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -21.48 | 203.67 | -16.16 | 148.49 | 0.4975 | 744.0 | 601.2 | |
| 0.00 | 2.91 | 0.00 | 1.66 | -21.83 | 203.43 | -16.41 | 148.49 | 0.5038 | 710.0 | 664.2 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -27.14 | 200.26 | -19.57 | 149.64 | 0.5918 | -619.0 | -571.6 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -26.97 | 200.08 | -19.76 | 149.24 | 0.5912 | -694.0 | -628.6 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -31.87 | 198.93 | -20.90 | 152.32 | 0.6545 | -148.0 | -108.2 | |
| 0.00 | 2.54 | 0.00 | 1.50 | -22.75 | 199.37 | -20.46 | 143.84 | 0.5485 | 801.0 | 680.2 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -22.83 | 199.18 | -20.65 | 143.68 | 0.5509 | 612.0 | 529.0 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -21.04 | 195.14 | -24.70 | 136.60 | 0.5697 | -692.0 | -539.2 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -21.01 | 193.51 | -26.32 | 134.81 | 0.5857 | -770.0 | -605.7 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -18.83 | 189.89 | -29.95 | 128.40 | 0.6051 | -567.0 | -489.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
