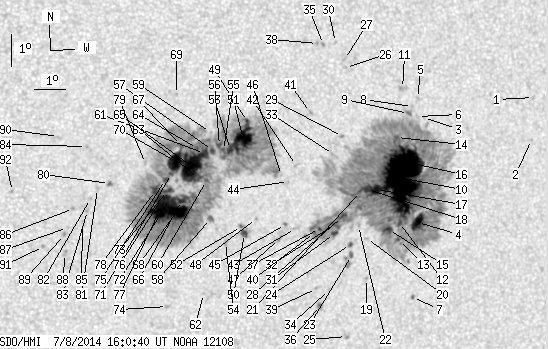

SDO HMI 2014-07-08 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 456.60 | 2287.73 | 246.75 | 1236.61 | -6.85 | 240.16 | 20.88 | 242.80 | 0.3982 | 101.9 | 77.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.78 | -4.46 | 247.80 | 28.52 | 254.34 | 0.4963 | 680.0 | 571.4 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -5.75 | 247.79 | 28.51 | 251.84 | 0.5018 | 566.0 | 494.6 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -4.96 | 244.05 | 24.77 | 250.97 | 0.4434 | 368.0 | 431.5 | |
| 13.89 | 1166.67 | 7.75 | 643.57 | -8.21 | 244.02 | 24.74 | 244.24 | 0.4617 | 1086.4 | 443.4 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -4.37 | 243.83 | 24.55 | 252.09 | 0.4371 | -442.0 | -313.6 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -4.92 | 243.85 | 24.57 | 250.90 | 0.4402 | 558.0 | 426.0 | |
| 0.54 | 1.63 | 0.31 | 0.92 | -10.55 | 244.02 | 24.74 | 239.77 | 0.4781 | -786.8 | -626.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -4.61 | 243.67 | 24.39 | 251.45 | 0.4359 | 565.0 | 352.1 | |
| 0.91 | 3.18 | 0.50 | 1.75 | -4.82 | 243.54 | 24.26 | 250.89 | 0.4351 | 913.6 | 681.6 | |
| 174.97 | -4.00 | 96.71 | -4.00 | -6.83 | 243.46 | 24.18 | 246.55 | 0.4452 | 1480.0 | 999999 | |
| 0.00 | 3.72 | 0.00 | 2.04 | -4.04 | 243.31 | 24.03 | 252.44 | 0.4279 | -255.0 | -337.6 | |
| 2.72 | -4.00 | 1.51 | -4.00 | -8.19 | 243.41 | 24.13 | 243.72 | 0.4531 | 874.7 | 999999 | |
| 1.63 | -4.00 | 0.91 | -4.00 | -8.72 | 243.41 | 24.13 | 242.66 | 0.4567 | 755.6 | 999999 | |
| 1.54 | -4.00 | 0.85 | -4.00 | -5.55 | 243.17 | 23.89 | 249.01 | 0.4334 | 972.5 | 999999 | |
| 4.81 | -4.00 | 2.67 | -4.00 | -8.40 | 243.05 | 23.77 | 242.96 | 0.4495 | 918.1 | 999999 | |
| 1.09 | -4.00 | 0.60 | -4.00 | -6.16 | 242.86 | 23.58 | 247.44 | 0.4324 | 1372.2 | 999999 | |
| 10.35 | -4.00 | 5.69 | -4.00 | -7.14 | 242.57 | 23.29 | 245.09 | 0.4344 | 1457.4 | 999999 | |
| 4.99 | -4.00 | 2.74 | -4.00 | -7.13 | 242.27 | 22.99 | 244.82 | 0.4300 | 1395.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -9.91 | 242.41 | 23.13 | 239.32 | 0.4518 | 720.0 | 495.8 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -8.66 | 242.33 | 23.05 | 241.71 | 0.4413 | 686.0 | 500.2 | |
| 0.27 | -4.00 | 0.15 | -4.00 | -7.19 | 242.04 | 22.76 | 244.47 | 0.4271 | 1248.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -8.25 | 242.03 | 22.75 | 242.25 | 0.4343 | 87.0 | 85.3 | |
| 1.18 | 9.35 | 0.65 | 5.15 | -9.18 | 241.86 | 22.58 | 240.17 | 0.4387 | 965.8 | 782.4 | |
| 1.27 | 2.27 | 0.70 | 1.25 | -8.83 | 241.80 | 22.52 | 240.81 | 0.4354 | 1057.8 | 910.1 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -11.72 | 241.88 | 22.60 | 235.32 | 0.4595 | 833.0 | 784.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -3.35 | 241.40 | 22.12 | 252.67 | 0.3955 | 810.0 | 654.8 | |
| 0.00 | 2.09 | 0.00 | 1.12 | -3.10 | 241.36 | 22.08 | 253.24 | 0.3937 | 897.0 | 620.4 | |
| 4.00 | -4.00 | 2.18 | -4.00 | -7.95 | 241.48 | 22.20 | 242.29 | 0.4245 | 1109.4 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -5.47 | 241.37 | 22.09 | 247.63 | 0.4064 | 889.0 | 744.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -2.57 | 241.06 | 21.78 | 254.32 | 0.3866 | 646.0 | 492.2 | |
| 2.72 | -4.00 | 1.49 | -4.00 | -8.47 | 241.25 | 21.97 | 240.94 | 0.4250 | 1010.5 | 999999 | |
| 5.54 | -4.00 | 3.03 | -4.00 | -8.19 | 241.23 | 21.95 | 241.51 | 0.4227 | -123.0 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.18 | -6.02 | 241.09 | 21.81 | 246.12 | 0.4058 | 322.0 | 374.2 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -10.22 | 241.19 | 21.91 | 237.34 | 0.4381 | 755.0 | 538.8 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -2.63 | 240.66 | 21.38 | 253.91 | 0.3807 | 936.0 | 782.3 | |
| 0.73 | 3.72 | 0.40 | 2.05 | -10.72 | 240.93 | 21.65 | 236.07 | 0.4387 | 1142.9 | 848.3 | |
| 1.36 | -4.00 | 0.74 | -4.00 | -8.31 | 240.74 | 21.46 | 240.72 | 0.4167 | -557.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -2.59 | 240.47 | 21.19 | 253.85 | 0.3775 | 968.0 | 718.4 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -10.18 | 240.76 | 21.48 | 236.91 | 0.4319 | 786.0 | 575.5 | |
| 0.82 | -4.00 | 0.44 | -4.00 | -8.43 | 240.58 | 21.30 | 240.29 | 0.4155 | -751.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -4.70 | 240.29 | 21.01 | 248.43 | 0.3858 | 882.0 | 818.5 | |
| 0.00 | 2.09 | 0.00 | 1.12 | -6.33 | 239.89 | 20.61 | 244.16 | 0.3903 | -591.0 | -399.3 | |
| 0.00 | 3.36 | 0.00 | 1.82 | -8.29 | 239.94 | 20.67 | 239.84 | 0.4056 | -413.0 | -128.6 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -6.82 | 239.64 | 20.36 | 242.76 | 0.3903 | -590.0 | -352.8 | |
| 0.00 | 1.91 | 0.00 | 1.03 | -8.15 | 239.61 | 20.33 | 239.72 | 0.3999 | -777.0 | -604.7 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -6.63 | 239.41 | 20.13 | 242.93 | 0.3855 | 871.0 | 667.2 | |
| 0.00 | 2.81 | 0.00 | 1.52 | -8.59 | 239.43 | 20.16 | 238.57 | 0.4010 | 858.0 | 690.9 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -7.94 | 238.65 | 19.37 | 238.97 | 0.3849 | -537.0 | -319.0 | |
| 2.09 | 1021.67 | 1.11 | 539.39 | -4.93 | 238.24 | 18.96 | 245.73 | 0.3566 | 602.0 | -361.7 | |
| 3.45 | 6.90 | 1.85 | 3.70 | -8.40 | 238.28 | 19.00 | 237.46 | 0.3837 | -922.7 | -660.1 | |
| 36.50 | -49.00 | 19.36 | -49.00 | -5.49 | 238.13 | 18.85 | 244.19 | 0.3588 | -1100.5 | 999999 | |
| 0.54 | -50.00 | 0.29 | -50.00 | -8.18 | 238.17 | 18.89 | 237.80 | 0.3803 | -890.7 | 999999 | |
| 5.63 | -49.00 | 2.98 | -49.00 | -5.79 | 237.72 | 18.44 | 242.93 | 0.3549 | -1154.4 | 999999 | |
| 0.00 | 3.54 | 0.00 | 1.89 | -8.67 | 237.68 | 18.40 | 236.01 | 0.3778 | -773.0 | -560.3 | |
| 2.18 | -49.00 | 1.15 | -49.00 | -5.81 | 237.49 | 18.21 | 242.57 | 0.3518 | -1046.4 | 999999 | |
| 2.36 | -49.00 | 1.25 | -49.00 | -5.65 | 237.36 | 18.08 | 242.80 | 0.3487 | -997.7 | 999999 | |
| 2.54 | -49.00 | 1.34 | -49.00 | -5.80 | 237.14 | 17.86 | 242.13 | 0.3466 | -933.6 | 999999 | |
| 1.63 | -49.00 | 0.87 | -49.00 | -7.91 | 237.15 | 17.87 | 236.99 | 0.3641 | -741.8 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -5.25 | 237.06 | 17.78 | 243.47 | 0.3413 | -354.0 | -416.5 | |
| 1.36 | -49.00 | 0.72 | -49.00 | -6.73 | 236.98 | 17.70 | 239.57 | 0.3516 | -750.1 | 999999 | |
| 6.17 | -49.00 | 3.26 | -49.00 | -5.89 | 236.88 | 17.60 | 241.56 | 0.3436 | -957.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -10.25 | 237.04 | 17.76 | 231.66 | 0.3844 | -614.0 | -481.3 | |
| 4.36 | -49.00 | 2.30 | -49.00 | -6.66 | 236.72 | 17.44 | 239.37 | 0.3474 | -787.4 | 999999 | |
| 1.73 | -49.00 | 0.91 | -49.00 | -5.73 | 236.65 | 17.37 | 241.65 | 0.3391 | -881.3 | 999999 | |
| 42.58 | -49.00 | 22.43 | -49.00 | -6.29 | 236.48 | 17.20 | 239.98 | 0.3409 | -1210.8 | 999999 | |
| 3.81 | -49.00 | 2.01 | -49.00 | -7.33 | 236.19 | 16.92 | 236.93 | 0.3459 | -1064.9 | 999999 | |
| 2.36 | -49.00 | 1.24 | -49.00 | -5.63 | 236.14 | 16.86 | 241.20 | 0.3308 | -1095.1 | 999999 | |
| 28.60 | -49.00 | 15.10 | -49.00 | -7.67 | 236.05 | 16.77 | 235.87 | 0.3469 | -1311.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -4.05 | 235.94 | 16.66 | 245.30 | 0.3162 | -804.0 | -570.1 | |
| 22.79 | -49.00 | 11.97 | -49.00 | -6.12 | 235.96 | 16.68 | 239.64 | 0.3322 | -1409.7 | 999999 | |
| 1.54 | -49.00 | 0.81 | -49.00 | -6.49 | 235.84 | 16.56 | 238.50 | 0.3337 | -1310.4 | 999999 | |
| 6.36 | -49.00 | 3.35 | -49.00 | -7.29 | 235.81 | 16.53 | 236.41 | 0.3402 | -1288.2 | 999999 | |
| 4.00 | -49.00 | 2.10 | -49.00 | -7.01 | 235.73 | 16.45 | 237.00 | 0.3367 | -1138.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -10.64 | 235.90 | 16.62 | 229.00 | 0.3740 | -892.0 | -743.4 | |
| 3.00 | -49.00 | 1.57 | -49.00 | -6.67 | 235.66 | 16.38 | 237.74 | 0.3326 | -1214.5 | 999999 | |
| 5.90 | -49.00 | 3.10 | -49.00 | -7.26 | 235.55 | 16.27 | 236.09 | 0.3364 | -1567.0 | 999999 | |
| 23.79 | -49.00 | 12.52 | -49.00 | -7.63 | 235.50 | 16.22 | 235.09 | 0.3391 | -1410.4 | 999999 | |
| 5.36 | -49.00 | 2.81 | -49.00 | -7.01 | 235.35 | 16.07 | 236.39 | 0.3313 | -1348.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -6.16 | 235.00 | 15.72 | 238.02 | 0.3190 | -1023.0 | -772.7 | |
| 0.64 | 2.72 | 0.33 | 1.42 | -6.76 | 233.88 | 14.60 | 234.45 | 0.3090 | -1121.3 | -851.6 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -6.91 | 233.50 | 14.22 | 233.35 | 0.3053 | -957.0 | -804.7 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -7.22 | 233.29 | 14.01 | 232.13 | 0.3056 | -891.0 | -755.8 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -7.59 | 233.21 | 13.93 | 231.00 | 0.3083 | -662.0 | -592.7 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -5.60 | 233.12 | 13.84 | 236.24 | 0.2876 | -797.0 | -744.5 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -7.93 | 233.06 | 13.78 | 229.85 | 0.3100 | -992.0 | -817.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -7.52 | 232.76 | 13.48 | 230.27 | 0.3019 | -987.0 | -823.8 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -8.11 | 232.59 | 13.31 | 228.42 | 0.3060 | -773.0 | -601.2 | |
| 0.00 | 2.54 | 0.00 | 1.33 | -8.92 | 232.55 | 13.27 | 226.40 | 0.3146 | -726.0 | -673.5 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -8.32 | 232.50 | 13.22 | 227.70 | 0.3073 | -1071.0 | -922.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -5.28 | 232.23 | 12.95 | 235.43 | 0.2722 | -668.0 | -413.1 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -8.69 | 231.85 | 12.57 | 225.38 | 0.3036 | -903.0 | -721.9 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -6.96 | 230.83 | 11.55 | 227.35 | 0.2713 | -865.0 | -715.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
