SDO HMI 2014-07-08 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 20.25 | 0.00 | 11.25 | -17.68 | 232.43 | 13.15 | 211.32 | 0.4473 | -22.2 | -84.8 | |
|
previous
or next observation for the same group /

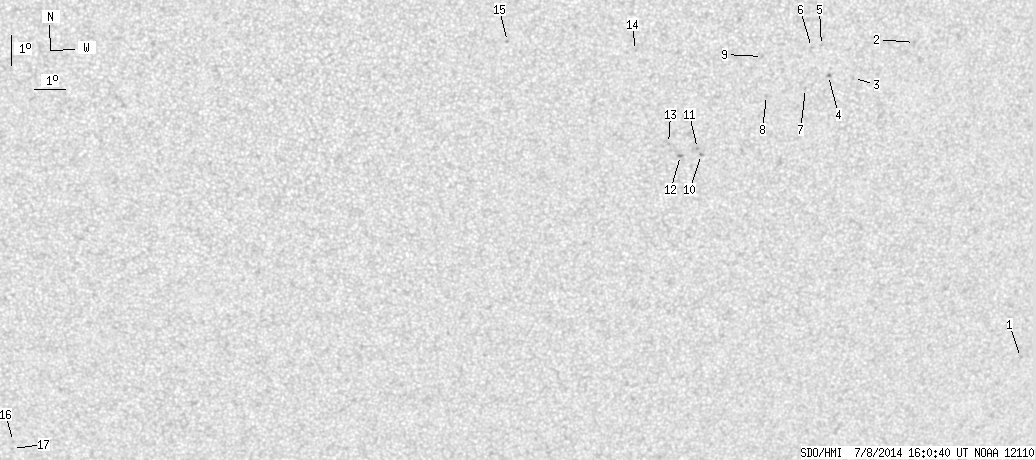

back to the solar disc SDO HMI 2014-07-08 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.80 | -24.64 | 245.48 | 26.20 | 220.60 | 0.6188 | -571.0 | -425.2 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -14.06 | 240.11 | 20.83 | 228.96 | 0.4592 | 842.0 | 591.5 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -15.17 | 238.17 | 18.89 | 224.37 | 0.4486 | 603.0 | 421.2 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -15.05 | 237.32 | 18.04 | 223.27 | 0.4382 | 892.0 | 729.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -14.08 | 237.01 | 17.73 | 224.39 | 0.4241 | 739.0 | 523.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -14.14 | 236.69 | 17.41 | 223.77 | 0.4211 | 767.0 | 585.0 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -15.45 | 236.59 | 17.32 | 221.46 | 0.4350 | 724.0 | 510.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -15.65 | 235.32 | 16.04 | 219.02 | 0.4244 | 645.0 | 535.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -14.40 | 235.10 | 15.82 | 220.64 | 0.4071 | 764.0 | 560.8 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -17.53 | 233.33 | 14.05 | 212.77 | 0.4295 | -787.0 | -687.1 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -17.34 | 233.18 | 13.90 | 212.76 | 0.4257 | -848.0 | -712.3 | |
| 0.00 | 2.09 | 0.00 | 1.14 | -17.55 | 232.64 | 13.36 | 211.45 | 0.4240 | -900.0 | -742.6 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -17.16 | 232.22 | 12.94 | 211.16 | 0.4152 | -704.0 | -590.5 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -14.13 | 230.97 | 11.69 | 212.84 | 0.3637 | -655.0 | -595.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -13.80 | 226.88 | 7.60 | 203.21 | 0.3272 | -904.0 | -761.8 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -27.18 | 210.57 | -8.71 | 165.27 | 0.5315 | -547.0 | -497.0 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -27.43 | 210.52 | -8.76 | 165.31 | 0.5352 | -437.0 | -365.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
