SDO HMI 2014-07-08 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.09 | 0.00 | 8.67 | 17.40 | 200.25 | -19.03 | 52.20 | 0.3952 | -671.0 | -581.6 | |
|
previous
or next observation for the same group /

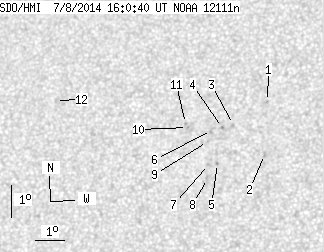

back to the solar disc SDO HMI 2014-07-08 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.54 | 18.66 | 201.96 | -17.32 | 47.15 | 0.3863 | -735.0 | -562.0 | |
| 0.00 | 2.36 | 0.00 | 1.26 | 17.00 | 202.03 | -17.25 | 50.55 | 0.3689 | -775.0 | -516.9 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 17.92 | 200.89 | -18.39 | 50.27 | 0.3919 | -778.0 | -536.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 17.82 | 200.53 | -18.75 | 51.00 | 0.3954 | -968.0 | -834.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 16.69 | 200.48 | -18.80 | 53.47 | 0.3858 | -876.0 | -722.6 | |
| 0.00 | 3.00 | 0.00 | 1.62 | 17.72 | 200.17 | -19.11 | 51.70 | 0.3990 | -671.0 | -665.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 16.65 | 200.18 | -19.10 | 53.95 | 0.3893 | -839.0 | -656.3 | |
| 0.00 | 2.09 | 0.00 | 1.12 | 16.21 | 200.19 | -19.09 | 54.90 | 0.3854 | -708.0 | -695.9 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 17.37 | 200.07 | -19.21 | 52.56 | 0.3971 | -809.0 | -577.9 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 17.79 | 199.35 | -19.93 | 52.64 | 0.4101 | -864.0 | -759.5 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 17.92 | 199.26 | -20.02 | 52.49 | 0.4123 | -700.0 | -604.6 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 18.54 | 194.67 | -24.61 | 56.40 | 0.4760 | 671.0 | 567.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
