SDO HMI 2014-07-08 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.38 | 178.88 | 52.37 | 150.61 | 9.35 | 165.25 | -54.03 | 81.09 | 0.8101 | -163.1 | -114.3 | |
|
previous
or next observation for the same group /

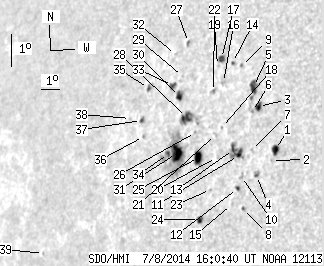

back to the solar disc SDO HMI 2014-07-08 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.54 | 6.36 | 3.50 | 4.90 | 9.12 | 169.17 | -50.11 | 81.17 | 0.7689 | -711.0 | -518.5 | |
| 0.00 | 0.82 | 0.00 | 0.63 | 8.77 | 169.04 | -50.24 | 81.63 | 0.7702 | -559.0 | -494.6 | |
| 3.18 | 5.08 | 2.51 | 4.02 | 10.39 | 168.07 | -51.21 | 79.61 | 0.7817 | -652.5 | -500.2 | |
| 0.64 | 3.36 | 0.50 | 2.63 | 8.28 | 168.40 | -50.88 | 82.30 | 0.7770 | -523.6 | -362.0 | |
| 5.36 | 10.35 | 4.28 | 8.26 | 10.99 | 167.68 | -51.60 | 78.88 | 0.7863 | -625.6 | -486.3 | |
| 0.00 | 1.27 | 0.00 | 1.01 | 10.22 | 167.81 | -51.47 | 79.84 | 0.7844 | -462.0 | -407.4 | |
| 0.00 | 0.91 | 0.00 | 0.72 | 9.06 | 168.00 | -51.28 | 81.31 | 0.7816 | -559.0 | -424.0 | |
| 0.45 | 1.45 | 0.36 | 1.15 | 7.24 | 167.93 | -51.35 | 83.64 | 0.7818 | 552.4 | 509.4 | |
| 0.00 | 1.54 | 0.00 | 1.25 | 11.60 | 166.91 | -52.37 | 78.17 | 0.7948 | -500.0 | -423.0 | |
| 0.00 | 2.54 | 0.00 | 2.02 | 8.21 | 167.67 | -51.61 | 82.41 | 0.7849 | -527.0 | -383.4 | |
| 1.91 | 15.07 | 1.53 | 12.11 | 8.85 | 167.40 | -51.88 | 81.62 | 0.7880 | -660.1 | -315.1 | |
| 0.82 | 1.63 | 0.65 | 1.30 | 7.84 | 167.53 | -51.75 | 82.90 | 0.7862 | -346.3 | -303.6 | |
| 1.36 | -11.00 | 1.10 | -11.00 | 9.02 | 167.11 | -52.17 | 81.42 | 0.7911 | -417.1 | 999999 | |
| 0.36 | 1.09 | 0.30 | 0.89 | 11.67 | 166.43 | -52.85 | 78.13 | 0.7998 | -447.8 | -471.2 | |
| 0.00 | 1.00 | 0.00 | 0.80 | 7.34 | 167.32 | -51.96 | 83.54 | 0.7884 | -384.0 | -267.5 | |
| 0.00 | 2.27 | 0.00 | 1.88 | 11.03 | 166.13 | -53.15 | 78.95 | 0.8024 | -58.0 | -138.2 | |
| 2.54 | 4.27 | 2.12 | 3.55 | 11.76 | 165.83 | -53.45 | 78.07 | 0.8060 | -557.0 | -363.7 | |
| 0.00 | 1.00 | 0.00 | 0.82 | 9.66 | 166.36 | -52.92 | 80.65 | 0.7993 | -299.0 | -205.5 | |
| 0.00 | 0.36 | 0.00 | 0.30 | 11.54 | 165.68 | -53.60 | 78.36 | 0.8074 | -313.0 | -244.2 | |
| 0.00 | 0.64 | 0.00 | 0.52 | 8.73 | 166.30 | -52.98 | 81.82 | 0.7995 | 356.0 | 329.6 | |
| 0.00 | 0.82 | 0.00 | 0.67 | 9.43 | 166.10 | -53.18 | 80.95 | 0.8018 | 525.0 | 439.2 | |
| 0.00 | 2.09 | 0.00 | 1.74 | 10.73 | 165.69 | -53.59 | 79.35 | 0.8068 | -561.0 | -357.7 | |
| 0.00 | 0.73 | 0.00 | 0.60 | 7.74 | 166.18 | -53.10 | 83.06 | 0.8004 | 576.0 | 414.9 | |
| 2.36 | 4.00 | 1.96 | 3.31 | 6.80 | 165.77 | -53.51 | 84.24 | 0.8045 | 566.0 | 414.7 | |
| 6.45 | 11.62 | 5.41 | 9.75 | 8.68 | 165.37 | -53.91 | 81.91 | 0.8090 | -514.3 | -362.9 | |
| 0.00 | 0.91 | 0.00 | 0.77 | 9.44 | 165.05 | -54.23 | 81.00 | 0.8126 | 587.0 | 513.2 | |
| 0.54 | 1.91 | 0.48 | 1.66 | 12.16 | 163.93 | -55.35 | 77.74 | 0.8250 | 501.8 | 437.2 | |
| 7.63 | 15.98 | 6.54 | 13.67 | 9.87 | 164.46 | -54.82 | 80.49 | 0.8186 | 717.5 | 513.7 | |
| 0.00 | 0.27 | 0.00 | 0.24 | 11.11 | 163.92 | -55.36 | 79.02 | 0.8246 | 606.0 | 532.0 | |
| 4.09 | 6.99 | 3.56 | 6.08 | 10.49 | 163.92 | -55.36 | 79.77 | 0.8242 | 643.9 | 499.1 | |
| 13.98 | 59.65 | 12.07 | 51.60 | 8.75 | 164.18 | -55.10 | 81.88 | 0.8209 | -782.8 | -210.8 | |
| 0.00 | 1.18 | 0.00 | 1.04 | 11.76 | 163.34 | -55.94 | 78.27 | 0.8305 | 591.0 | 508.5 | |
| 2.36 | 4.00 | 2.08 | 3.52 | 10.81 | 163.45 | -55.83 | 79.41 | 0.8289 | 609.8 | 453.5 | |
| 1.45 | -31.00 | 1.27 | -31.00 | 8.73 | 163.75 | -55.53 | 81.92 | 0.8252 | -383.8 | 999999 | |
| 1.27 | 2.54 | 1.16 | 2.32 | 10.65 | 162.14 | -57.14 | 79.68 | 0.8412 | 448.0 | 303.4 | |
| 0.00 | 1.09 | 0.00 | 0.99 | 9.17 | 162.25 | -57.03 | 81.43 | 0.8397 | 615.0 | 538.8 | |
| 1.09 | 2.27 | 0.99 | 2.07 | 9.65 | 162.01 | -57.27 | 80.87 | 0.8420 | 533.1 | 436.8 | |
| 0.00 | 0.82 | 0.00 | 0.76 | 9.68 | 161.36 | -57.92 | 80.86 | 0.8480 | -381.0 | -355.3 | |
| 0.00 | 1.00 | 0.00 | 1.06 | 5.29 | 156.94 | -62.34 | 85.95 | 0.8860 | 313.0 | 334.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
