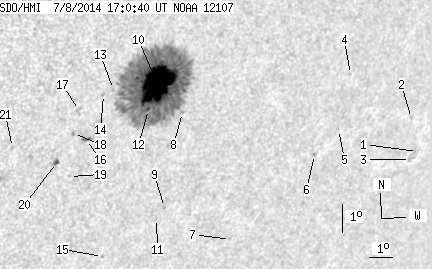

SDO HMI 2014-07-08 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.99 | 471.03 | 51.38 | 315.16 | -19.18 | 254.84 | 36.12 | 235.91 | 0.6743 | 930.8 | 318.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.84 | -21.86 | 267.18 | 48.45 | 239.40 | 0.8092 | 471.0 | 448.6 | |
| 0.00 | 1.36 | 0.00 | 1.11 | -20.72 | 266.39 | 47.66 | 240.37 | 0.7976 | 297.0 | 302.0 | |
| 0.00 | 2.09 | 0.00 | 1.75 | -22.11 | 266.95 | 48.22 | 239.00 | 0.8082 | 445.0 | 345.9 | |
| 0.00 | 0.73 | 0.00 | 0.55 | -19.09 | 262.92 | 44.20 | 240.70 | 0.7577 | 617.0 | 487.5 | |
| 0.00 | 0.73 | 0.00 | 0.56 | -20.92 | 263.02 | 44.30 | 238.55 | 0.7670 | 611.0 | 540.1 | |
| 0.00 | 1.18 | 0.00 | 0.90 | -21.71 | 262.23 | 43.51 | 237.19 | 0.7632 | 604.0 | 519.5 | |
| 0.00 | 0.64 | 0.00 | 0.48 | -24.47 | 259.53 | 40.80 | 232.43 | 0.7526 | -510.0 | -457.0 | |
| 0.00 | 1.91 | 0.00 | 1.30 | -20.04 | 256.01 | 37.29 | 235.60 | 0.6920 | -254.0 | -257.3 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -23.24 | 256.24 | 37.51 | 231.80 | 0.7143 | -703.0 | -578.6 | |
| 73.00 | 443.24 | 48.73 | 295.71 | -19.03 | 254.73 | 36.01 | 236.05 | 0.6723 | 1270.6 | 337.5 | |
| 0.00 | 0.54 | 0.00 | 0.38 | -23.60 | 256.02 | 37.30 | 231.22 | 0.7146 | -478.0 | -459.5 | |
| 1.63 | -10.00 | 1.10 | -10.00 | -19.88 | 254.59 | 35.87 | 234.84 | 0.6762 | 591.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -19.16 | 253.02 | 34.30 | 234.67 | 0.6548 | 789.0 | 691.6 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -19.31 | 252.67 | 33.94 | 234.21 | 0.6520 | 483.0 | 398.2 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -24.83 | 254.18 | 35.46 | 228.47 | 0.7056 | -634.0 | -483.2 | |
| 1.09 | 3.45 | 0.72 | 2.27 | -20.79 | 252.37 | 33.64 | 232.05 | 0.6591 | 787.3 | 646.2 | |
| 0.00 | 3.99 | 0.00 | 2.59 | -19.81 | 251.85 | 33.13 | 232.93 | 0.6467 | -484.0 | -419.3 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -20.57 | 251.80 | 33.08 | 231.90 | 0.6516 | 791.0 | 682.5 | |
| 0.00 | 0.64 | 0.00 | 0.42 | -22.02 | 252.02 | 33.29 | 230.22 | 0.6644 | -523.0 | -456.6 | |
| 1.27 | 2.81 | 0.83 | 1.84 | -21.52 | 251.38 | 32.65 | 230.34 | 0.6543 | -756.0 | -525.4 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -20.95 | 249.55 | 30.82 | 229.54 | 0.6311 | -382.0 | -338.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
