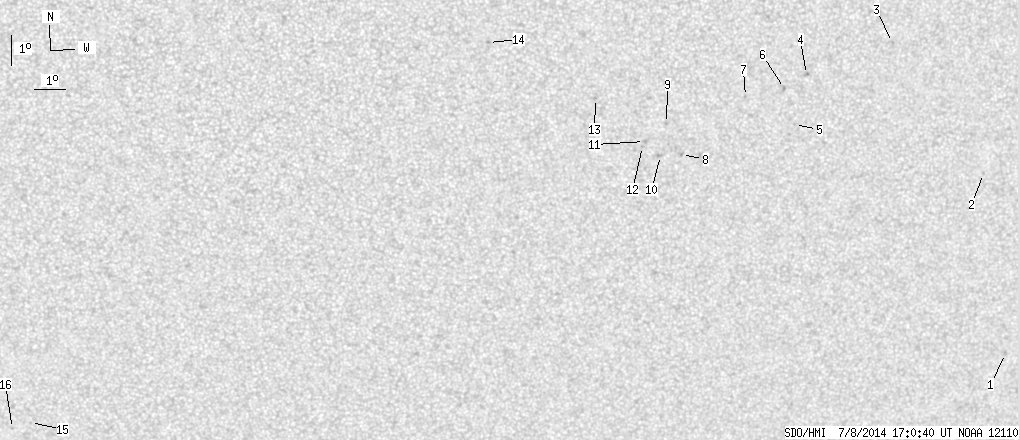

SDO HMI 2014-07-08 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.89 | 0.00 | 12.19 | -17.76 | 233.33 | 14.61 | 213.07 | 0.4529 | -198.9 | -213.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.98 | -24.53 | 245.76 | 27.03 | 221.58 | 0.6252 | -663.0 | -604.4 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -18.41 | 243.78 | 25.05 | 227.35 | 0.5484 | 610.0 | 406.3 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -14.07 | 240.09 | 21.36 | 229.64 | 0.4656 | 795.0 | 582.5 | |
| 0.00 | 2.00 | 0.00 | 1.10 | -15.03 | 237.30 | 18.57 | 224.11 | 0.4437 | 881.0 | 701.9 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -16.64 | 237.05 | 18.32 | 221.22 | 0.4590 | 627.0 | 537.1 | |
| 0.00 | 1.91 | 0.00 | 1.05 | -15.46 | 236.60 | 17.88 | 222.34 | 0.4411 | 776.0 | 476.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -15.70 | 235.33 | 16.61 | 219.91 | 0.4306 | 821.0 | 599.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -17.54 | 233.37 | 14.64 | 213.83 | 0.4348 | -756.0 | -668.4 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -16.52 | 232.80 | 14.07 | 214.18 | 0.4166 | -743.0 | -528.7 | |
| 0.00 | 2.18 | 0.00 | 1.19 | -17.56 | 232.68 | 13.95 | 212.54 | 0.4291 | -743.0 | -705.4 | |
| 0.00 | 2.00 | 0.00 | 1.09 | -17.10 | 232.12 | 13.39 | 212.11 | 0.4182 | -959.0 | -772.9 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -17.26 | 232.06 | 13.34 | 211.79 | 0.4199 | -843.0 | -678.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -15.67 | 230.43 | 11.70 | 210.63 | 0.3850 | -749.0 | -532.6 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -13.83 | 226.92 | 8.20 | 204.78 | 0.3318 | -870.0 | -731.2 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -26.49 | 211.96 | -6.76 | 168.14 | 0.5149 | -646.0 | -522.4 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -26.71 | 211.33 | -7.39 | 167.18 | 0.5201 | -721.0 | -611.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
