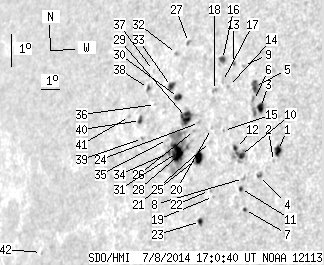

SDO HMI 2014-07-08 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.83 | 196.10 | 56.22 | 163.09 | 9.37 | 165.26 | -53.46 | 81.03 | 0.8044 | -134.3 | -59.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.72 | 6.63 | 3.60 | 5.05 | 9.08 | 169.20 | -49.53 | 81.18 | 0.7624 | -742.1 | -525.5 | |
| 0.00 | 1.00 | 0.00 | 0.76 | 8.74 | 169.07 | -49.65 | 81.64 | 0.7637 | -504.0 | -400.3 | |
| 4.18 | 10.89 | 3.26 | 8.53 | 10.36 | 168.12 | -50.61 | 79.60 | 0.7752 | -630.2 | -313.6 | |
| 0.91 | 2.91 | 0.70 | 2.25 | 8.28 | 168.48 | -50.25 | 82.27 | 0.7700 | -512.5 | -364.3 | |
| 3.81 | 9.08 | 3.01 | 7.15 | 10.98 | 167.68 | -51.05 | 78.83 | 0.7804 | -650.4 | -575.2 | |
| 0.00 | 2.54 | 0.00 | 2.00 | 10.55 | 167.73 | -51.00 | 79.38 | 0.7795 | -438.0 | -358.2 | |
| 0.73 | 1.73 | 0.57 | 1.35 | 7.21 | 167.92 | -50.80 | 83.68 | 0.7758 | 462.1 | 396.0 | |
| 0.00 | 2.09 | 0.00 | 1.64 | 8.15 | 167.72 | -51.01 | 82.47 | 0.7783 | -577.0 | -406.1 | |
| 0.00 | 0.91 | 0.00 | 0.73 | 11.60 | 166.97 | -51.75 | 78.12 | 0.7884 | -667.0 | -542.3 | |
| 3.45 | 14.98 | 2.73 | 11.87 | 8.84 | 167.44 | -51.28 | 81.59 | 0.7816 | -740.8 | -250.9 | |
| 1.09 | 2.27 | 0.86 | 1.79 | 7.84 | 167.63 | -51.10 | 82.87 | 0.7792 | -332.2 | -304.9 | |
| 1.36 | -10.00 | 1.08 | -10.00 | 9.05 | 167.15 | -51.57 | 81.35 | 0.7848 | -499.5 | 999999 | |
| 0.36 | 1.63 | 0.29 | 1.32 | 11.63 | 166.45 | -52.27 | 78.12 | 0.7938 | -445.5 | -402.9 | |
| 0.00 | 1.45 | 0.00 | 1.18 | 10.92 | 166.38 | -52.34 | 79.03 | 0.7940 | 453.0 | 355.9 | |
| 0.00 | 0.82 | 0.00 | 0.66 | 9.57 | 166.44 | -52.28 | 80.73 | 0.7926 | -306.0 | -261.2 | |
| 2.27 | 3.90 | 1.87 | 3.21 | 11.73 | 165.86 | -52.86 | 78.06 | 0.8000 | -609.9 | -417.3 | |
| 0.00 | 1.45 | 0.00 | 1.19 | 11.06 | 166.04 | -52.69 | 78.88 | 0.7977 | -392.0 | -280.6 | |
| 0.00 | 2.45 | 0.00 | 2.02 | 10.76 | 165.70 | -53.03 | 79.28 | 0.8010 | -580.0 | -439.1 | |
| 0.00 | 0.82 | 0.00 | 0.66 | 7.53 | 166.33 | -52.40 | 83.31 | 0.7930 | 624.0 | 506.9 | |
| 0.00 | 0.82 | 0.00 | 0.67 | 9.60 | 165.82 | -52.90 | 80.73 | 0.7991 | -274.0 | -226.4 | |
| 0.00 | 1.18 | 0.00 | 0.97 | 9.20 | 165.86 | -52.87 | 81.23 | 0.7985 | 512.0 | 354.4 | |
| 0.00 | 0.73 | 0.00 | 0.59 | 7.70 | 166.10 | -52.63 | 83.10 | 0.7955 | 444.0 | 472.0 | |
| 1.91 | 3.54 | 1.56 | 2.90 | 6.74 | 165.80 | -52.93 | 84.32 | 0.7985 | 553.5 | 408.2 | |
| 0.00 | 1.54 | 0.00 | 1.29 | 9.75 | 165.16 | -53.56 | 80.58 | 0.8059 | 452.0 | 455.1 | |
| 6.54 | 10.44 | 5.41 | 8.65 | 8.68 | 165.34 | -53.38 | 81.90 | 0.8036 | -536.3 | -376.4 | |
| 0.00 | 1.36 | 0.00 | 1.14 | 9.49 | 164.96 | -53.77 | 80.91 | 0.8079 | 704.0 | 604.9 | |
| 0.00 | 1.82 | 0.00 | 1.56 | 12.16 | 163.93 | -54.79 | 77.70 | 0.8197 | 508.0 | 437.5 | |
| 0.54 | 69.00 | 0.46 | 58.79 | 8.96 | 164.71 | -54.02 | 81.58 | 0.8102 | 471.7 | -77.1 | |
| 9.17 | 15.53 | 7.77 | 13.15 | 9.87 | 164.45 | -54.28 | 80.47 | 0.8132 | 820.1 | 529.7 | |
| 3.27 | 5.08 | 2.81 | 4.37 | 10.45 | 163.87 | -54.85 | 79.78 | 0.8192 | 663.7 | 512.2 | |
| 15.80 | -28.00 | 13.45 | -28.00 | 8.78 | 164.22 | -54.51 | 81.82 | 0.8151 | -760.3 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.42 | 11.79 | 163.38 | -55.34 | 78.19 | 0.8247 | 628.0 | 484.9 | |
| 3.18 | 4.81 | 2.76 | 4.19 | 10.77 | 163.40 | -55.32 | 79.43 | 0.8240 | 598.0 | 377.9 | |
| 1.36 | -28.00 | 1.17 | -28.00 | 8.76 | 163.79 | -54.93 | 81.87 | 0.8193 | -382.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.94 | 9.15 | 163.60 | -55.13 | 81.40 | 0.8214 | 174.0 | 173.6 | |
| 0.00 | 0.27 | 0.00 | 0.24 | 10.18 | 162.68 | -56.05 | 80.19 | 0.8307 | -248.0 | -219.0 | |
| 0.00 | 0.27 | 0.00 | 0.24 | 11.21 | 162.28 | -56.45 | 78.97 | 0.8350 | 287.0 | 291.3 | |
| 1.09 | 2.54 | 0.98 | 2.28 | 10.64 | 162.16 | -56.57 | 79.65 | 0.8359 | 437.0 | 302.2 | |
| 0.00 | 1.27 | 0.00 | 1.14 | 9.11 | 162.22 | -56.50 | 81.50 | 0.8347 | 652.0 | 541.8 | |
| 2.09 | 3.63 | 1.88 | 3.27 | 9.65 | 161.97 | -56.75 | 80.86 | 0.8372 | 481.2 | 371.6 | |
| 0.00 | 1.27 | 0.00 | 1.17 | 9.74 | 161.32 | -57.41 | 80.78 | 0.8433 | -528.0 | -434.9 | |
| 0.00 | 0.73 | 0.00 | 0.76 | 5.32 | 156.91 | -61.81 | 85.93 | 0.8817 | 444.0 | 365.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
