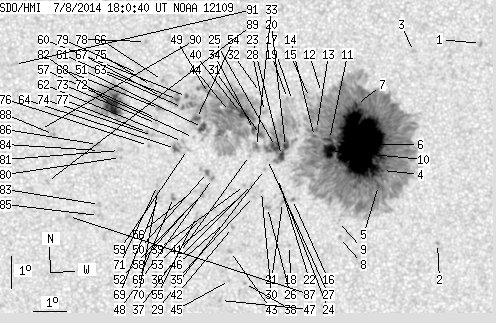

SDO HMI 2014-07-08 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 299.77 | 1766.80 | 151.86 | 894.85 | -7.76 | 220.37 | 2.20 | 190.33 | 0.2068 | 733.3 | 230.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.01 | -4.83 | 225.70 | 7.54 | 221.58 | 0.1978 | 1090.0 | 859.6 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -11.05 | 224.47 | 6.30 | 203.01 | 0.2767 | 918.0 | 779.6 | |
| 0.00 | 2.09 | 0.00 | 1.05 | -5.06 | 223.64 | 5.48 | 212.11 | 0.1796 | -813.0 | -639.8 | |
| 0.27 | 1129.10 | 0.14 | 572.69 | -8.74 | 222.72 | 4.55 | 200.08 | 0.2297 | 1057.7 | 464.4 | |
| 1.82 | -4.00 | 0.93 | -4.00 | -9.21 | 222.61 | 4.44 | 198.92 | 0.2365 | 614.0 | 999999 | |
| 212.35 | -4.00 | 107.65 | -4.00 | -7.93 | 222.04 | 3.87 | 198.40 | 0.2127 | 1753.9 | 999999 | |
| 1.18 | -4.00 | 0.60 | -4.00 | -6.69 | 221.91 | 3.74 | 199.81 | 0.1918 | 1381.9 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -10.84 | 221.41 | 3.24 | 192.52 | 0.2576 | -587.0 | -412.7 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -10.33 | 221.38 | 3.21 | 192.83 | 0.2491 | 565.0 | 482.0 | |
| 13.16 | -4.00 | 6.67 | -4.00 | -8.11 | 221.08 | 2.91 | 193.85 | 0.2111 | 1362.4 | 999999 | |
| 1.72 | -4.00 | 0.87 | -4.00 | -7.77 | 221.08 | 2.91 | 194.25 | 0.2054 | 1176.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -6.31 | 220.83 | 2.66 | 194.91 | 0.1801 | 78.0 | 23.0 | |
| 1.00 | -4.00 | 0.50 | -4.00 | -7.46 | 220.68 | 2.51 | 192.69 | 0.1986 | 958.9 | 999999 | |
| 1.00 | -4.00 | 0.51 | -4.00 | -7.68 | 220.62 | 2.45 | 192.16 | 0.2020 | 889.6 | 999999 | |
| 0.00 | 4.18 | 0.00 | 2.10 | -6.47 | 220.46 | 2.29 | 192.73 | 0.1811 | 179.0 | 194.9 | |
| 0.00 | 2.18 | 0.00 | 1.11 | -9.64 | 219.95 | 1.78 | 187.58 | 0.2332 | 964.0 | 726.0 | |
| 0.00 | 1.82 | 0.00 | 0.91 | -6.56 | 219.94 | 1.77 | 189.81 | 0.1809 | 214.0 | 194.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -11.08 | 219.86 | 1.69 | 186.50 | 0.2573 | -869.0 | -591.8 | |
| 0.00 | 0.64 | 0.00 | 0.32 | -6.49 | 219.79 | 1.62 | 189.03 | 0.1794 | 178.0 | 102.0 | |
| 3.00 | 106.22 | 1.52 | 53.69 | -7.98 | 219.73 | 1.56 | 187.60 | 0.2046 | 1391.8 | 543.9 | |
| 0.00 | 3.81 | 0.00 | 1.94 | -9.73 | 219.64 | 1.47 | 186.23 | 0.2341 | 635.0 | 390.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.42 | 219.64 | 1.47 | 186.38 | 0.2288 | 740.0 | 622.5 | |
| 5.27 | -20.00 | 2.67 | -20.00 | -8.26 | 219.61 | 1.44 | 186.84 | 0.2091 | 1202.6 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -8.98 | 219.48 | 1.31 | 185.91 | 0.2211 | -744.0 | -442.9 | |
| 7.26 | -20.00 | 3.67 | -20.00 | -7.98 | 219.42 | 1.25 | 186.11 | 0.2040 | 1140.6 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.30 | -9.89 | 219.18 | 1.01 | 184.23 | 0.2360 | -805.0 | -576.3 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -8.39 | 219.17 | 1.01 | 184.75 | 0.2105 | 784.0 | 646.1 | |
| 0.00 | 2.00 | 0.00 | 1.01 | -6.89 | 219.08 | 0.91 | 184.92 | 0.1848 | 715.0 | 596.4 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -8.70 | 219.08 | 0.91 | 184.21 | 0.2157 | 900.0 | 676.0 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -9.38 | 218.99 | 0.82 | 183.58 | 0.2273 | -830.0 | -628.1 | |
| 1.54 | 309.31 | 0.78 | 156.00 | -7.61 | 218.96 | 0.79 | 183.99 | 0.1969 | 1183.8 | -94.3 | |
| 0.00 | 2.00 | 0.00 | 1.00 | -6.31 | 218.96 | 0.79 | 184.52 | 0.1745 | 377.0 | 293.5 | |
| 1.00 | -20.00 | 0.51 | -20.00 | -7.98 | 218.84 | 0.67 | 183.26 | 0.2031 | 1038.3 | 999999 | |
| 2.45 | -31.00 | 1.24 | -31.00 | -7.45 | 218.74 | 0.57 | 182.95 | 0.1940 | 1071.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -9.54 | 218.74 | 0.57 | 182.48 | 0.2297 | -646.0 | -488.9 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -9.17 | 218.68 | 0.51 | 182.28 | 0.2233 | -762.0 | -623.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.26 | 218.62 | 0.45 | 182.16 | 0.2077 | -153.0 | 8.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -12.28 | 218.47 | 0.30 | 181.05 | 0.2760 | -740.0 | -585.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -9.20 | 218.47 | 0.30 | 181.31 | 0.2237 | -902.0 | -725.7 | |
| 12.35 | -31.00 | 6.22 | -31.00 | -6.92 | 218.34 | 0.17 | 180.94 | 0.1847 | 1043.8 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.32 | -9.54 | 218.34 | 0.17 | 180.75 | 0.2295 | -848.0 | -624.6 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -10.51 | 218.09 | -0.08 | 179.70 | 0.2460 | -856.0 | -690.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -11.27 | 218.03 | -0.14 | 179.47 | 0.2589 | -789.0 | -691.2 | |
| 2.45 | -31.00 | 1.24 | -31.00 | -6.89 | 218.01 | -0.16 | 179.12 | 0.1841 | 614.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -12.18 | 218.00 | -0.17 | 179.39 | 0.2744 | -702.0 | -504.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.32 | 217.91 | -0.26 | 178.94 | 0.2429 | -895.0 | -548.2 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -12.82 | 217.72 | -0.45 | 178.44 | 0.2851 | -858.0 | -732.7 | |
| 0.00 | 2.27 | 0.00 | 1.15 | -8.98 | 217.48 | -0.69 | 176.89 | 0.2202 | -952.0 | -697.1 | |
| 0.54 | -31.00 | 0.27 | -31.00 | -6.33 | 217.36 | -0.81 | 175.40 | 0.1750 | -742.0 | 999999 | |
| 0.91 | 4.45 | 0.46 | 2.26 | -8.79 | 217.33 | -0.84 | 176.14 | 0.2171 | -1048.9 | -737.2 | |
| 4.18 | -31.00 | 2.11 | -31.00 | -7.39 | 217.18 | -0.99 | 174.88 | 0.1934 | -1051.8 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.39 | -9.45 | 217.17 | -1.00 | 175.66 | 0.2285 | -1027.0 | -795.8 | |
| 0.00 | 2.72 | 0.00 | 1.39 | -10.23 | 217.10 | -1.07 | 175.64 | 0.2419 | -817.0 | -644.5 | |
| 2.45 | -31.00 | 1.24 | -31.00 | -7.11 | 216.99 | -1.18 | 173.78 | 0.1889 | -1077.0 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.16 | -10.17 | 216.98 | -1.19 | 175.12 | 0.2410 | -748.0 | -594.0 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -9.32 | 216.92 | -1.25 | 174.54 | 0.2267 | -175.0 | -371.7 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -7.70 | 216.90 | -1.27 | 173.64 | 0.1992 | -769.0 | -597.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -9.79 | 216.83 | -1.34 | 174.34 | 0.2349 | -893.0 | -697.9 | |
| 0.00 | 2.09 | 0.00 | 1.06 | -8.07 | 216.71 | -1.46 | 172.95 | 0.2059 | -737.0 | -603.3 | |
| 0.73 | -31.00 | 0.37 | -31.00 | -6.43 | 216.69 | -1.48 | 171.67 | 0.1779 | -1204.6 | 999999 | |
| 0.54 | -31.00 | 0.27 | -31.00 | -6.77 | 216.57 | -1.60 | 171.27 | 0.1840 | -994.7 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -7.82 | 216.56 | -1.61 | 172.05 | 0.2020 | -1075.0 | -832.8 | |
| 1.09 | 9.99 | 0.55 | 5.03 | -6.52 | 216.41 | -1.76 | 170.23 | 0.1803 | -1272.0 | -952.8 | |
| 1.45 | 6.81 | 0.74 | 3.45 | -8.04 | 216.34 | -1.83 | 171.16 | 0.2063 | -1090.1 | -934.0 | |
| 0.00 | 3.09 | 0.00 | 1.57 | -9.57 | 216.27 | -1.90 | 171.88 | 0.2323 | -1063.0 | -879.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -5.93 | 215.96 | -2.21 | 167.02 | 0.1719 | -871.0 | -795.9 | |
| 0.00 | 3.45 | 0.00 | 1.74 | -6.43 | 215.92 | -2.25 | 167.47 | 0.1803 | -802.0 | -854.7 | |
| 0.00 | 3.90 | 0.00 | 1.97 | -6.80 | 215.86 | -2.31 | 167.57 | 0.1868 | -1267.0 | -900.4 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -9.57 | 215.81 | -2.36 | 169.94 | 0.2336 | -744.0 | -604.5 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -9.38 | 215.78 | -2.39 | 169.67 | 0.2305 | -971.0 | -806.1 | |
| 0.00 | 2.18 | 0.00 | 1.11 | -9.20 | 215.78 | -2.39 | 169.53 | 0.2273 | -876.0 | -759.0 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -7.11 | 215.76 | -2.40 | 167.44 | 0.1924 | -901.0 | -786.4 | |
| 0.00 | 1.72 | 0.00 | 0.87 | -7.27 | 215.76 | -2.41 | 167.61 | 0.1950 | -932.0 | -718.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.64 | 215.64 | -2.53 | 167.41 | 0.2017 | -972.0 | -796.3 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -6.09 | 215.62 | -2.55 | 165.35 | 0.1759 | -982.0 | -711.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.95 | 215.51 | -2.66 | 167.15 | 0.2074 | -954.0 | -801.7 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -7.55 | 215.49 | -2.68 | 166.57 | 0.2007 | -1129.0 | -898.1 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -4.73 | 215.44 | -2.73 | 162.00 | 0.1542 | -919.0 | -832.6 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -5.72 | 215.22 | -2.95 | 162.57 | 0.1716 | -934.0 | -728.9 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -8.32 | 214.65 | -3.52 | 163.68 | 0.2173 | -758.0 | -611.3 | |
| 0.00 | 3.09 | 0.00 | 1.57 | -8.11 | 214.62 | -3.55 | 163.26 | 0.2139 | -703.0 | -620.2 | |
| 20.06 | 85.61 | 10.13 | 43.20 | -6.71 | 214.42 | -3.75 | 160.14 | 0.1922 | -1266.3 | -551.6 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -9.80 | 213.98 | -4.19 | 162.80 | 0.2446 | -955.0 | -784.8 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -8.11 | 214.00 | -4.17 | 160.56 | 0.2172 | -884.0 | -718.9 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -10.14 | 213.94 | -4.23 | 163.08 | 0.2504 | -838.0 | -750.6 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -7.92 | 213.94 | -4.23 | 160.01 | 0.2145 | -1083.0 | -911.5 | |
| 0.00 | 2.27 | 0.00 | 1.16 | -10.18 | 213.01 | -5.16 | 159.68 | 0.2560 | -892.0 | -676.4 | |
| 0.00 | 2.36 | 0.00 | 1.20 | -7.62 | 212.59 | -5.58 | 153.74 | 0.2188 | -911.0 | -770.4 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -9.08 | 212.38 | -5.79 | 155.67 | 0.2429 | -830.0 | -620.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.46 | 212.19 | -5.98 | 151.80 | 0.2196 | -770.0 | -544.4 | |
| 0.00 | 3.18 | 0.00 | 1.61 | -5.46 | 211.41 | -6.76 | 143.48 | 0.1977 | -703.0 | -591.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
