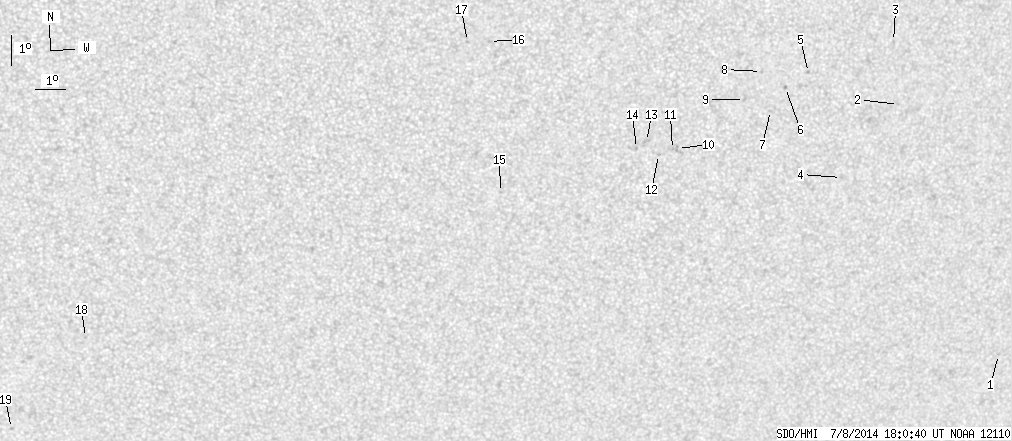

SDO HMI 2014-07-08 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 23.16 | 0.00 | 12.85 | -17.67 | 232.36 | 14.19 | 212.33 | 0.4473 | -135.2 | -198.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.75 | -24.60 | 245.56 | 27.39 | 221.85 | 0.6292 | -633.0 | -457.2 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -16.11 | 240.50 | 22.34 | 227.56 | 0.4967 | 691.0 | 563.1 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -14.08 | 240.11 | 21.94 | 230.36 | 0.4726 | 856.0 | 640.0 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -18.45 | 238.83 | 20.66 | 221.93 | 0.5029 | 662.0 | 505.2 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -15.00 | 237.34 | 19.17 | 225.05 | 0.4501 | 872.0 | 733.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -15.47 | 236.62 | 18.45 | 223.21 | 0.4473 | 750.0 | 547.9 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -16.20 | 236.18 | 18.01 | 221.40 | 0.4509 | 560.0 | 412.1 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -14.94 | 235.77 | 17.60 | 222.75 | 0.4323 | 556.0 | 529.6 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -15.83 | 235.28 | 17.12 | 220.54 | 0.4374 | 736.0 | 534.0 | |
| 0.00 | 2.27 | 0.00 | 1.25 | -17.38 | 233.20 | 15.03 | 214.73 | 0.4362 | -727.0 | -576.3 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -17.41 | 233.04 | 14.87 | 214.40 | 0.4351 | -761.0 | -632.6 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -17.56 | 232.59 | 14.42 | 213.38 | 0.4332 | -636.0 | -580.4 | |
| 0.00 | 2.81 | 0.00 | 1.54 | -17.13 | 232.16 | 13.99 | 213.18 | 0.4238 | -735.0 | -683.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -17.35 | 231.84 | 13.68 | 212.30 | 0.4241 | -839.0 | -657.2 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -18.73 | 227.49 | 9.32 | 201.95 | 0.4117 | -766.0 | -583.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -13.83 | 226.91 | 8.74 | 206.19 | 0.3357 | -967.0 | -734.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -13.82 | 226.21 | 8.04 | 204.36 | 0.3307 | -783.0 | -563.6 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -23.55 | 213.95 | -4.22 | 171.60 | 0.4640 | -697.0 | -558.7 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -26.73 | 211.29 | -6.88 | 168.06 | 0.5188 | -708.0 | -512.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
