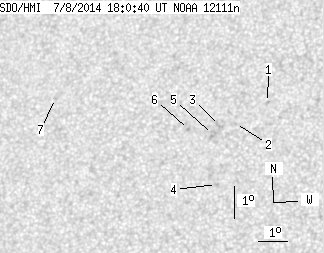

SDO HMI 2014-07-08 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.88 | 0.00 | 8.54 | 17.75 | 200.03 | -18.14 | 50.18 | 0.3875 | -575.7 | -563.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.07 | 18.62 | 201.93 | -16.24 | 45.48 | 0.3732 | -768.0 | -529.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 17.95 | 200.93 | -17.24 | 48.51 | 0.3781 | -887.0 | -586.0 | |
| 0.00 | 3.63 | 0.00 | 1.95 | 17.87 | 200.40 | -17.77 | 49.48 | 0.3838 | -858.0 | -693.2 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 16.03 | 200.47 | -17.70 | 53.40 | 0.3654 | -797.0 | -607.2 | |
| 0.00 | 4.72 | 0.00 | 2.53 | 17.59 | 200.19 | -17.98 | 50.39 | 0.3836 | -652.0 | -732.9 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 17.73 | 199.37 | -18.80 | 51.27 | 0.3952 | -862.0 | -642.0 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 18.61 | 194.68 | -23.49 | 55.17 | 0.4621 | 794.0 | 598.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
