SDO HMI 2014-07-08 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.87 | 139.72 | 36.35 | 220.01 | -19.38 | 149.69 | -68.48 | 111.93 | 0.9473 | 423.2 | -57.2 | |
|
previous
or next observation for the same group /

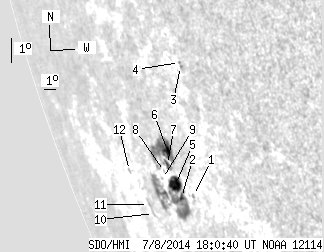

back to the solar disc SDO HMI 2014-07-08 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 2.10 | -19.99 | 151.05 | -67.12 | 112.83 | 0.9409 | 284.0 | 318.1 | |
| 2.09 | 80.07 | 3.18 | 127.31 | -20.13 | 149.89 | -68.28 | 112.74 | 0.9472 | 387.9 | -137.2 | |
| 0.00 | 1.09 | 0.00 | 1.39 | -15.68 | 153.19 | -64.98 | 108.72 | 0.9228 | 546.0 | 446.8 | |
| 0.00 | 0.91 | 0.00 | 1.16 | -15.55 | 153.19 | -64.98 | 108.59 | 0.9227 | 437.0 | 416.3 | |
| 14.25 | -2.00 | 21.83 | -2.00 | -19.71 | 149.74 | -68.43 | 112.28 | 0.9475 | 447.4 | 999999 | |
| 5.17 | 49.48 | 7.73 | 75.98 | -18.58 | 150.04 | -68.13 | 111.16 | 0.9447 | 746.0 | 65.4 | |
| 2.36 | -6.00 | 3.61 | -6.00 | -19.06 | 149.62 | -68.55 | 111.59 | 0.9475 | 423.6 | 999999 | |
| 0.00 | 0.82 | 0.00 | 1.28 | -19.32 | 149.11 | -69.06 | 111.76 | 0.9503 | 124.0 | 89.2 | |
| 0.00 | 1.00 | 0.00 | 1.61 | -19.58 | 148.68 | -69.49 | 111.94 | 0.9527 | 90.0 | 65.5 | |
| 0.00 | 2.18 | 0.00 | 4.01 | -20.87 | 146.41 | -71.76 | 112.87 | 0.9643 | -246.0 | -224.0 | |
| 0.00 | 1.09 | 0.00 | 2.02 | -20.59 | 146.21 | -71.96 | 112.54 | 0.9649 | -339.0 | -357.0 | |
| 0.00 | 1.63 | 0.00 | 3.15 | -19.52 | 145.39 | -72.78 | 111.32 | 0.9675 | -424.0 | -338.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
