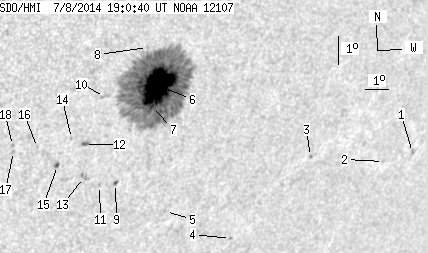

SDO HMI 2014-07-08 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.18 | 462.27 | 45.46 | 313.40 | -19.18 | 254.71 | 37.10 | 236.55 | 0.6848 | 959.2 | 339.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.27 | 0.00 | 1.95 | -21.83 | 267.11 | 49.50 | 239.86 | 0.8183 | 580.0 | 465.2 | |
| 0.00 | 1.09 | 0.00 | 0.91 | -22.07 | 265.77 | 48.15 | 239.02 | 0.8074 | 157.0 | 173.0 | |
| 0.00 | 1.27 | 0.00 | 0.99 | -21.72 | 262.13 | 44.52 | 237.70 | 0.7728 | 404.0 | 404.6 | |
| 0.00 | 1.27 | 0.00 | 0.97 | -24.38 | 259.54 | 41.93 | 233.20 | 0.7624 | -529.0 | -473.6 | |
| 0.00 | 0.73 | 0.00 | 0.52 | -23.31 | 256.29 | 38.68 | 232.48 | 0.7260 | -701.0 | -621.9 | |
| 64.09 | 435.48 | 43.39 | 294.67 | -19.03 | 254.67 | 37.06 | 236.74 | 0.6836 | 1308.7 | 359.5 | |
| 0.27 | -6.00 | 0.19 | -6.00 | -19.72 | 254.65 | 37.04 | 235.83 | 0.6875 | 744.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -17.75 | 253.95 | 36.34 | 237.94 | 0.6681 | 328.0 | 250.1 | |
| 0.82 | 2.36 | 0.56 | 1.62 | -22.26 | 253.87 | 36.25 | 232.12 | 0.6957 | -543.4 | -398.2 | |
| 0.00 | 3.63 | 0.00 | 2.40 | -19.31 | 252.62 | 35.01 | 234.98 | 0.6634 | 534.0 | 403.1 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -22.30 | 253.23 | 35.61 | 231.61 | 0.6896 | 467.0 | 391.9 | |
| 0.91 | 3.00 | 0.60 | 1.99 | -20.88 | 252.23 | 34.61 | 232.65 | 0.6699 | 778.7 | 693.3 | |
| 0.00 | 2.45 | 0.00 | 1.65 | -22.00 | 252.49 | 34.88 | 231.45 | 0.6803 | -770.0 | -509.6 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -20.66 | 251.66 | 34.04 | 232.51 | 0.6624 | 814.0 | 647.5 | |
| 1.09 | 2.27 | 0.72 | 1.50 | -21.55 | 251.34 | 33.72 | 231.13 | 0.6654 | -685.7 | -590.5 | |
| 0.00 | 0.64 | 0.00 | 0.41 | -20.91 | 250.39 | 32.78 | 231.20 | 0.6511 | -365.0 | -380.7 | |
| 0.00 | 1.54 | 0.00 | 1.00 | -21.01 | 249.48 | 31.87 | 230.34 | 0.6425 | -583.0 | -444.1 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -20.81 | 249.40 | 31.78 | 230.53 | 0.6400 | -639.0 | -498.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
