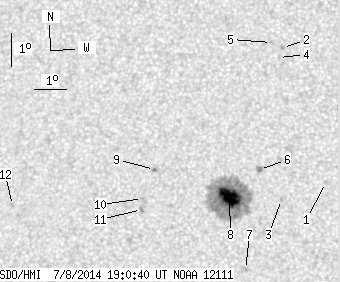

SDO HMI 2014-07-08 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.05 | 172.49 | 13.25 | 87.80 | 6.39 | 204.63 | -12.98 | 77.56 | 0.2299 | -952.1 | -417.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.55 | 6.75 | 207.70 | -9.92 | 72.30 | 0.1804 | -804.0 | -582.1 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 10.86 | 206.23 | -11.38 | 56.89 | 0.2324 | -887.0 | -685.5 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 6.21 | 206.33 | -11.28 | 76.80 | 0.2006 | -914.0 | -674.5 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 10.55 | 206.12 | -11.50 | 58.29 | 0.2314 | -695.0 | -433.3 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 11.01 | 205.88 | -11.74 | 57.12 | 0.2388 | -851.0 | -594.6 | |
| 0.00 | 3.63 | 0.00 | 1.84 | 7.12 | 205.62 | -11.99 | 73.37 | 0.2161 | -1240.0 | -951.2 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 4.07 | 205.25 | -12.37 | 87.75 | 0.2148 | -872.0 | -713.9 | |
| 26.05 | 153.88 | 13.25 | 78.29 | 6.29 | 204.70 | -12.91 | 78.00 | 0.2281 | -1408.1 | -428.2 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 7.08 | 202.31 | -15.31 | 76.76 | 0.2703 | -1041.0 | -853.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 6.19 | 201.95 | -15.66 | 80.23 | 0.2735 | 910.0 | 670.4 | |
| 0.00 | 2.18 | 0.00 | 1.12 | 5.85 | 201.93 | -15.68 | 81.46 | 0.2731 | 1063.0 | 777.2 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 5.90 | 197.78 | -19.84 | 82.81 | 0.3417 | 900.0 | 695.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
