SDO HMI 2014-07-08 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.07 | 200.92 | 52.90 | 163.54 | 9.40 | 165.10 | -52.51 | 80.95 | 0.7945 | -156.6 | -29.2 | |
|
previous
or next observation for the same group /

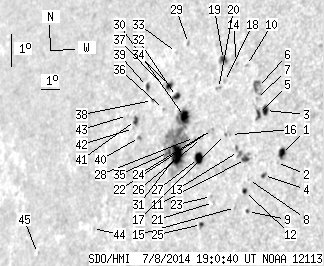

back to the solar disc SDO HMI 2014-07-08 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.54 | 6.90 | 3.38 | 5.13 | 8.99 | 169.29 | -48.32 | 81.22 | 0.7487 | -723.8 | -509.9 | |
| 0.00 | 0.73 | 0.00 | 0.54 | 8.71 | 169.11 | -48.51 | 81.61 | 0.7507 | -531.0 | -436.2 | |
| 3.72 | 5.81 | 2.83 | 4.42 | 10.27 | 168.29 | -49.32 | 79.61 | 0.7610 | -771.7 | -550.7 | |
| 1.00 | 2.63 | 0.75 | 1.99 | 8.28 | 168.57 | -49.05 | 82.21 | 0.7566 | -588.2 | -504.9 | |
| 2.18 | 5.45 | 1.67 | 4.17 | 10.13 | 167.98 | -49.63 | 79.82 | 0.7643 | -458.4 | -314.9 | |
| 0.00 | 8.99 | 0.00 | 6.92 | 10.95 | 167.76 | -49.86 | 78.76 | 0.7675 | -647.0 | -558.8 | |
| 0.00 | 1.09 | 0.00 | 0.84 | 10.62 | 167.78 | -49.83 | 79.20 | 0.7669 | -423.0 | -434.7 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 8.13 | 167.88 | -49.73 | 82.45 | 0.7642 | -586.0 | -503.3 | |
| 0.54 | 1.45 | 0.42 | 1.11 | 7.15 | 167.99 | -49.63 | 83.73 | 0.7627 | 494.0 | 414.5 | |
| 0.00 | 1.00 | 0.00 | 0.78 | 11.60 | 167.06 | -50.55 | 78.00 | 0.7756 | -525.0 | -443.2 | |
| 2.54 | 5.72 | 1.96 | 4.40 | 8.73 | 167.63 | -49.98 | 81.67 | 0.7673 | -735.2 | -548.0 | |
| 1.36 | 3.09 | 1.04 | 2.37 | 7.75 | 167.75 | -49.86 | 82.95 | 0.7655 | -296.6 | -218.1 | |
| 0.00 | 4.36 | 0.00 | 3.38 | 8.96 | 167.25 | -50.36 | 81.40 | 0.7716 | -702.0 | -430.3 | |
| 0.00 | 1.18 | 0.00 | 0.93 | 11.64 | 166.56 | -51.05 | 78.00 | 0.7810 | -587.0 | -409.2 | |
| 0.00 | 1.72 | 0.00 | 1.33 | 7.25 | 167.40 | -50.22 | 83.62 | 0.7693 | -258.0 | -206.6 | |
| 0.00 | 0.64 | 0.00 | 0.50 | 9.46 | 166.76 | -50.85 | 80.78 | 0.7772 | -304.0 | -226.4 | |
| 0.00 | 1.00 | 0.00 | 0.79 | 9.45 | 166.52 | -51.10 | 80.82 | 0.7799 | -443.0 | -382.9 | |
| 0.00 | 1.36 | 0.00 | 1.08 | 11.06 | 166.10 | -51.51 | 78.78 | 0.7854 | -295.0 | -183.1 | |
| 3.00 | 5.90 | 2.40 | 4.73 | 11.73 | 165.88 | -51.73 | 77.95 | 0.7882 | -618.0 | -335.6 | |
| 0.00 | 2.09 | 0.00 | 1.67 | 10.83 | 165.86 | -51.76 | 79.09 | 0.7878 | -641.0 | -431.3 | |
| 0.00 | 1.00 | 0.00 | 0.79 | 7.35 | 166.31 | -51.31 | 83.52 | 0.7813 | 581.0 | 422.8 | |
| 0.00 | 0.91 | 0.00 | 0.73 | 9.57 | 165.84 | -51.77 | 80.70 | 0.7871 | -393.0 | -271.6 | |
| 0.00 | 1.09 | 0.00 | 0.86 | 7.53 | 166.18 | -51.43 | 83.30 | 0.7827 | 626.0 | 483.8 | |
| 0.00 | 1.00 | 0.00 | 0.80 | 9.50 | 165.66 | -51.96 | 80.81 | 0.7891 | 349.0 | 284.5 | |
| 1.18 | 2.91 | 0.94 | 2.32 | 6.65 | 165.82 | -51.80 | 84.42 | 0.7865 | 542.4 | 390.2 | |
| 0.00 | 1.09 | 0.00 | 0.88 | 9.27 | 165.35 | -52.26 | 81.12 | 0.7922 | 381.0 | 362.2 | |
| 6.17 | 9.53 | 4.99 | 7.70 | 8.65 | 165.33 | -52.29 | 81.90 | 0.7922 | -555.8 | -356.1 | |
| 0.00 | 1.00 | 0.00 | 0.81 | 9.28 | 164.99 | -52.62 | 81.12 | 0.7960 | 662.0 | 536.6 | |
| 0.00 | 1.63 | 0.00 | 1.37 | 12.13 | 163.96 | -53.65 | 77.63 | 0.8083 | 424.0 | 427.6 | |
| 9.26 | 94.41 | 7.66 | 78.41 | 9.89 | 164.34 | -53.27 | 80.39 | 0.8030 | 923.7 | 92.1 | |
| 16.52 | -30.00 | 13.69 | -30.00 | 8.72 | 164.23 | -53.38 | 81.86 | 0.8036 | -842.4 | 999999 | |
| 3.09 | 4.81 | 2.59 | 4.04 | 10.48 | 163.78 | -53.84 | 79.69 | 0.8091 | 698.6 | 501.9 | |
| 0.00 | 1.18 | 0.00 | 1.00 | 11.83 | 163.41 | -54.20 | 78.06 | 0.8136 | 599.0 | 432.6 | |
| 2.81 | 5.45 | 2.39 | 4.62 | 10.80 | 163.32 | -54.29 | 79.33 | 0.8138 | 600.6 | 404.4 | |
| 2.36 | -30.00 | 1.98 | -30.00 | 8.76 | 163.76 | -53.86 | 81.83 | 0.8085 | -398.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.85 | 10.05 | 163.19 | -54.42 | 80.26 | 0.8147 | -312.0 | -238.6 | |
| 0.00 | 0.45 | 0.00 | 0.39 | 10.81 | 162.94 | -54.67 | 79.34 | 0.8176 | 237.0 | 275.2 | |
| 0.00 | 1.09 | 0.00 | 0.94 | 10.30 | 162.54 | -55.08 | 80.00 | 0.8213 | -283.0 | -191.6 | |
| 1.63 | 3.18 | 1.42 | 2.77 | 10.71 | 162.15 | -55.46 | 79.52 | 0.8253 | 482.4 | 492.1 | |
| 0.54 | 1.27 | 0.47 | 1.11 | 9.13 | 162.11 | -55.50 | 81.43 | 0.8250 | 685.0 | 601.5 | |
| 2.63 | 4.36 | 2.32 | 3.83 | 9.64 | 161.77 | -55.84 | 80.83 | 0.8285 | 527.8 | 343.6 | |
| 0.00 | 0.73 | 0.00 | 0.64 | 9.39 | 161.72 | -55.89 | 81.14 | 0.8289 | 401.0 | 342.5 | |
| 0.00 | 0.27 | 0.00 | 0.24 | 9.77 | 161.29 | -56.32 | 80.70 | 0.8331 | -530.0 | -470.0 | |
| 0.00 | 0.36 | 0.00 | 0.33 | 6.23 | 160.06 | -57.55 | 84.95 | 0.8442 | -313.0 | -330.5 | |
| 0.00 | 0.82 | 0.00 | 0.82 | 5.30 | 156.91 | -60.70 | 85.99 | 0.8725 | 405.0 | 381.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
