SDO HMI 2014-07-08 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.61 | 462.36 | 50.20 | 315.85 | -19.23 | 254.71 | 37.65 | 236.84 | 0.6911 | 919.9 | 325.6 | |
|
previous
or next observation for the same group /

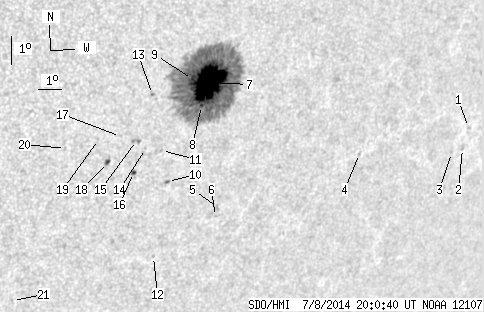

back to the solar disc SDO HMI 2014-07-08 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 1.25 | -21.13 | 267.15 | 50.09 | 240.91 | 0.8209 | 530.0 | 479.1 | |
| 0.00 | 1.18 | 0.00 | 1.03 | -21.83 | 267.17 | 50.11 | 240.12 | 0.8237 | 481.0 | 443.2 | |
| 0.00 | 0.54 | 0.00 | 0.47 | -21.94 | 266.66 | 49.60 | 239.78 | 0.8196 | 537.0 | 516.0 | |
| 0.00 | 1.36 | 0.00 | 1.07 | -21.74 | 262.10 | 45.04 | 237.93 | 0.7778 | 554.0 | 386.2 | |
| 0.00 | 2.18 | 0.00 | 1.58 | -23.30 | 256.34 | 39.28 | 232.86 | 0.7317 | -785.0 | -594.7 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -23.61 | 256.36 | 39.30 | 232.51 | 0.7337 | -463.0 | -420.1 | |
| 69.08 | 435.66 | 47.13 | 296.97 | -19.05 | 254.69 | 37.63 | 237.08 | 0.6899 | 1274.3 | 346.9 | |
| 1.18 | -7.00 | 0.81 | -7.00 | -19.80 | 254.57 | 37.51 | 236.03 | 0.6931 | 710.2 | 999999 | |
| 0.27 | -7.00 | 0.18 | -7.00 | -18.92 | 253.97 | 36.91 | 236.78 | 0.6814 | 1330.7 | 999999 | |
| 0.45 | 1.91 | 0.31 | 1.32 | -22.31 | 253.91 | 36.85 | 232.45 | 0.7020 | -558.6 | -458.1 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -21.25 | 253.34 | 36.28 | 233.38 | 0.6895 | 217.0 | 261.1 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -24.89 | 254.17 | 37.11 | 229.57 | 0.7213 | -571.0 | -447.0 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -19.35 | 252.47 | 35.42 | 235.20 | 0.6681 | 627.0 | 456.2 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -21.15 | 252.67 | 35.61 | 233.03 | 0.6820 | 585.0 | 479.0 | |
| 0.00 | 3.36 | 0.00 | 2.25 | -20.87 | 252.23 | 35.17 | 233.07 | 0.6756 | 825.0 | 694.6 | |
| 1.18 | 3.00 | 0.80 | 2.03 | -21.95 | 252.41 | 35.35 | 231.85 | 0.6847 | -660.1 | -498.4 | |
| 0.00 | 0.73 | 0.00 | 0.48 | -20.71 | 251.55 | 34.49 | 232.78 | 0.6675 | 665.0 | 537.2 | |
| 1.45 | 3.45 | 0.97 | 2.30 | -21.57 | 251.26 | 34.20 | 231.48 | 0.6705 | -626.5 | -410.9 | |
| 0.00 | 0.64 | 0.00 | 0.42 | -20.78 | 250.70 | 33.64 | 232.05 | 0.6591 | -506.0 | -374.7 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -21.03 | 249.48 | 32.42 | 230.76 | 0.6483 | -587.0 | -477.4 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -26.20 | 248.81 | 31.75 | 223.96 | 0.6825 | -631.0 | -489.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
