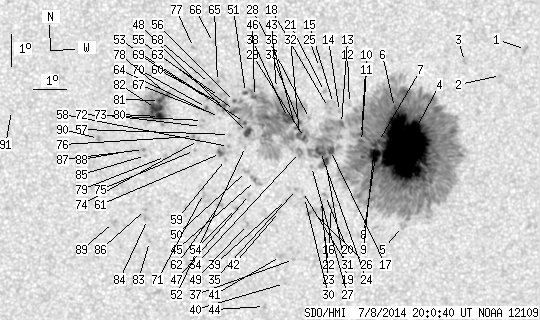

SDO HMI 2014-07-08 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 291.43 | 1760.42 | 147.74 | 892.55 | -7.78 | 220.73 | 3.67 | 197.12 | 0.2129 | 796.5 | 245.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.27 | 0.00 | 1.66 | -4.90 | 225.71 | 8.65 | 225.28 | 0.2118 | 971.0 | 720.5 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -5.69 | 224.95 | 7.89 | 220.09 | 0.2130 | 969.0 | 771.3 | |
| 0.00 | 2.72 | 0.00 | 1.38 | -5.25 | 223.83 | 6.77 | 217.19 | 0.1951 | -718.0 | -542.3 | |
| 206.80 | 1526.22 | 104.99 | 774.04 | -7.90 | 222.04 | 4.98 | 203.22 | 0.2191 | 1807.9 | 366.8 | |
| 0.00 | 3.63 | 0.00 | 1.86 | -10.37 | 221.98 | 4.92 | 199.18 | 0.2578 | -255.0 | -135.8 | |
| 0.82 | -4.00 | 0.41 | -4.00 | -6.65 | 221.69 | 4.63 | 204.11 | 0.1971 | 1266.2 | 999999 | |
| 2.00 | -4.00 | 1.01 | -4.00 | -7.71 | 221.20 | 4.15 | 199.96 | 0.2108 | 1184.0 | 999999 | |
| 11.44 | -4.00 | 5.80 | -4.00 | -8.14 | 221.12 | 4.06 | 198.89 | 0.2173 | 1415.7 | 999999 | |
| 2.54 | -4.00 | 1.29 | -4.00 | -7.83 | 221.08 | 4.02 | 199.22 | 0.2121 | 1219.6 | 999999 | |
| 1.27 | -4.00 | 0.64 | -4.00 | -7.49 | 220.68 | 3.62 | 197.93 | 0.2043 | 856.7 | 999999 | |
| 1.82 | -4.00 | 0.92 | -4.00 | -7.70 | 220.68 | 3.62 | 197.61 | 0.2078 | 739.3 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.37 | -6.52 | 220.30 | 3.25 | 197.63 | 0.1865 | 668.0 | 523.6 | |
| 1.45 | -4.00 | 0.73 | -4.00 | -7.14 | 220.06 | 3.00 | 195.48 | 0.1956 | 578.4 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -6.77 | 220.00 | 2.94 | 195.69 | 0.1891 | 804.0 | 574.4 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -6.52 | 219.81 | 2.75 | 195.10 | 0.1841 | 134.0 | 161.6 | |
| 0.00 | 3.81 | 0.00 | 1.94 | -9.69 | 219.77 | 2.71 | 191.40 | 0.2369 | 340.0 | 370.5 | |
| 4.27 | -4.00 | 2.16 | -4.00 | -7.98 | 219.73 | 2.67 | 192.86 | 0.2081 | 1312.3 | 999999 | |
| 0.00 | 7.53 | 0.00 | 3.80 | -6.64 | 219.66 | 2.60 | 194.13 | 0.1855 | 367.0 | 204.9 | |
| 4.45 | -4.00 | 2.26 | -4.00 | -8.32 | 219.58 | 2.52 | 191.81 | 0.2133 | 1133.3 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.48 | -9.38 | 219.58 | 2.52 | 190.88 | 0.2311 | 734.0 | 500.3 | |
| 0.00 | 2.09 | 0.00 | 1.05 | -6.15 | 219.54 | 2.48 | 194.13 | 0.1767 | -124.0 | -142.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.82 | 219.46 | 2.40 | 190.03 | 0.2380 | 572.0 | 470.8 | |
| 0.00 | 2.45 | 0.00 | 1.25 | -9.57 | 219.46 | 2.40 | 190.22 | 0.2338 | 198.0 | 169.7 | |
| 5.36 | -4.00 | 2.71 | -4.00 | -8.01 | 219.42 | 2.36 | 191.39 | 0.2075 | 1209.7 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -5.41 | 219.38 | 2.32 | 194.33 | 0.1636 | -554.0 | -472.7 | |
| 0.00 | 5.08 | 0.00 | 2.59 | -9.88 | 219.15 | 2.09 | 188.73 | 0.2382 | -638.0 | -488.9 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -8.47 | 219.14 | 2.09 | 189.71 | 0.2145 | 838.0 | 674.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -6.98 | 219.08 | 2.02 | 190.71 | 0.1891 | 842.0 | 724.9 | |
| 1.63 | -4.00 | 0.83 | -4.00 | -7.57 | 218.93 | 1.87 | 189.40 | 0.1986 | 1143.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.44 | 218.93 | 1.87 | 188.09 | 0.2302 | -834.0 | -606.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -9.25 | 218.87 | 1.81 | 187.94 | 0.2269 | -695.0 | -512.2 | |
| 3.27 | -4.00 | 1.65 | -4.00 | -7.48 | 218.77 | 1.71 | 188.71 | 0.1966 | 1084.8 | 999999 | |
| 1.18 | -4.00 | 0.60 | -4.00 | -7.10 | 218.77 | 1.71 | 189.01 | 0.1902 | 1155.7 | 999999 | |
| 0.00 | 5.36 | 0.00 | 2.71 | -8.04 | 218.77 | 1.71 | 188.30 | 0.2061 | 570.0 | 636.8 | |
| 0.00 | 2.09 | 0.00 | 1.06 | -9.19 | 218.68 | 1.63 | 187.17 | 0.2254 | -787.0 | -673.5 | |
| 0.54 | -4.00 | 0.27 | -4.00 | -7.26 | 218.65 | 1.59 | 188.25 | 0.1926 | 969.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -11.39 | 218.60 | 1.54 | 185.79 | 0.2624 | -736.0 | -585.9 | |
| 9.44 | -4.00 | 4.76 | -4.00 | -6.95 | 218.40 | 1.34 | 187.19 | 0.1867 | 1089.1 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -9.50 | 218.38 | 1.32 | 185.68 | 0.2301 | -669.0 | -569.4 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -12.15 | 218.32 | 1.26 | 184.52 | 0.2747 | -762.0 | -587.6 | |
| 0.00 | 4.27 | 0.00 | 2.19 | -11.29 | 218.20 | 1.14 | 184.31 | 0.2602 | -691.0 | -591.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.88 | 218.16 | 1.10 | 184.62 | 0.2362 | -747.0 | -525.0 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -6.05 | 218.06 | 1.01 | 185.89 | 0.1706 | -816.0 | -681.8 | |
| 0.00 | 2.00 | 0.00 | 1.03 | -12.87 | 217.70 | 0.64 | 182.20 | 0.2863 | -897.0 | -740.6 | |
| 0.00 | 5.63 | 0.00 | 2.86 | -8.91 | 217.42 | 0.36 | 181.63 | 0.2189 | -956.0 | -767.2 | |
| 1.36 | -4.00 | 0.69 | -4.00 | -6.30 | 217.39 | 0.33 | 181.90 | 0.1741 | -822.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -9.34 | 217.23 | 0.18 | 180.77 | 0.2263 | -928.0 | -739.4 | |
| 4.54 | -4.00 | 2.29 | -4.00 | -7.41 | 217.17 | 0.12 | 180.59 | 0.1932 | -1008.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -10.28 | 217.17 | 0.11 | 180.46 | 0.2423 | -853.0 | -699.6 | |
| 0.00 | 3.27 | 0.00 | 1.66 | -8.62 | 217.14 | 0.08 | 180.39 | 0.2140 | -838.0 | -700.8 | |
| 1.00 | -4.00 | 0.50 | -4.00 | -6.17 | 217.11 | 0.06 | 180.32 | 0.1718 | -1105.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -7.85 | 217.11 | 0.05 | 180.27 | 0.2007 | -206.0 | -233.7 | |
| 1.00 | -4.00 | 0.50 | -4.00 | -7.10 | 217.08 | 0.02 | 180.13 | 0.1879 | -973.4 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -9.78 | 216.83 | -0.23 | 179.04 | 0.2338 | -885.0 | -681.9 | |
| 3.18 | -4.00 | 1.60 | -4.00 | -6.73 | 216.78 | -0.28 | 178.45 | 0.1815 | -1091.9 | 999999 | |
| 0.64 | -4.00 | 0.32 | -4.00 | -6.45 | 216.78 | -0.28 | 178.41 | 0.1767 | -1191.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -7.47 | 216.62 | -0.44 | 177.76 | 0.1944 | -789.0 | -567.1 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -7.85 | 216.59 | -0.47 | 177.67 | 0.2008 | -974.0 | -894.6 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -8.25 | 216.50 | -0.56 | 177.31 | 0.2078 | -255.0 | -292.0 | |
| 1.36 | 9.90 | 0.69 | 4.98 | -6.57 | 216.47 | -0.59 | 176.72 | 0.1791 | -1172.8 | -870.4 | |
| 1.82 | 7.26 | 0.92 | 3.67 | -8.06 | 216.34 | -0.72 | 176.52 | 0.2048 | -1047.5 | -842.2 | |
| 0.00 | 3.00 | 0.00 | 1.53 | -9.66 | 216.31 | -0.75 | 176.79 | 0.2320 | -891.0 | -776.3 | |
| 0.00 | 7.17 | 0.00 | 3.61 | -6.30 | 216.32 | -0.74 | 175.75 | 0.1744 | -671.0 | -865.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -6.95 | 216.32 | -0.74 | 176.00 | 0.1856 | -547.0 | -416.0 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -5.83 | 216.26 | -0.80 | 175.18 | 0.1665 | -996.0 | -824.9 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -4.63 | 216.14 | -0.92 | 173.67 | 0.1460 | -921.0 | -736.1 | |
| 0.00 | 2.00 | 0.00 | 1.01 | -6.82 | 216.07 | -0.99 | 174.63 | 0.1838 | -740.0 | -742.8 | |
| 0.00 | 2.09 | 0.00 | 1.05 | -5.89 | 216.01 | -1.05 | 173.76 | 0.1680 | -842.0 | -739.9 | |
| 0.00 | 1.72 | 0.00 | 0.87 | -6.36 | 215.95 | -1.11 | 173.70 | 0.1761 | -1164.0 | -902.5 | |
| 0.64 | 1.63 | 0.32 | 0.82 | -6.64 | 215.92 | -1.14 | 173.69 | 0.1809 | -1149.4 | -949.2 | |
| 0.00 | 3.63 | 0.00 | 1.85 | -9.31 | 215.81 | -1.24 | 174.55 | 0.2268 | -813.0 | -759.8 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -7.04 | 215.79 | -1.27 | 173.28 | 0.1881 | -925.0 | -855.8 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -7.22 | 215.76 | -1.30 | 173.23 | 0.1913 | -927.0 | -695.9 | |
| 0.00 | 2.27 | 0.00 | 1.15 | -7.66 | 215.67 | -1.39 | 173.02 | 0.1989 | -1051.0 | -744.7 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -7.97 | 215.54 | -1.52 | 172.61 | 0.2045 | -928.0 | -743.3 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -7.53 | 215.51 | -1.54 | 172.18 | 0.1971 | -1030.0 | -841.7 | |
| 0.00 | 1.72 | 0.00 | 0.86 | -4.78 | 215.53 | -1.53 | 169.73 | 0.1502 | -965.0 | -726.0 | |
| 1.00 | 76.89 | 0.50 | 38.76 | -6.23 | 214.72 | -2.34 | 166.75 | 0.1776 | -972.4 | -626.5 | |
| 0.00 | 2.63 | 0.00 | 1.33 | -8.16 | 214.65 | -2.41 | 168.53 | 0.2102 | -720.0 | -552.0 | |
| 5.17 | -78.00 | 2.61 | -78.00 | -6.92 | 214.47 | -2.59 | 166.31 | 0.1900 | -1180.9 | 999999 | |
| 2.18 | -78.00 | 1.10 | -78.00 | -6.42 | 214.48 | -2.58 | 165.67 | 0.1817 | -1281.0 | 999999 | |
| 9.26 | -78.00 | 4.67 | -78.00 | -6.67 | 214.35 | -2.71 | 165.36 | 0.1864 | -1326.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -10.82 | 214.13 | -2.93 | 168.66 | 0.2564 | -789.0 | -584.3 | |
| 0.00 | 3.09 | 0.00 | 1.58 | -10.13 | 214.08 | -2.98 | 167.88 | 0.2451 | -716.0 | -580.0 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -8.13 | 214.03 | -3.03 | 165.67 | 0.2120 | -900.0 | -720.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -9.81 | 214.02 | -3.04 | 167.36 | 0.2401 | -1011.0 | -790.5 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -7.94 | 213.97 | -3.09 | 165.17 | 0.2092 | -1100.0 | -946.4 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -7.97 | 213.60 | -3.46 | 163.53 | 0.2114 | -857.0 | -657.2 | |
| 0.00 | 4.09 | 0.00 | 2.09 | -10.22 | 213.02 | -4.04 | 163.90 | 0.2510 | -807.0 | -647.9 | |
| 0.00 | 2.72 | 0.00 | 1.38 | -7.60 | 212.59 | -4.47 | 158.44 | 0.2111 | -995.0 | -825.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -6.75 | 209.92 | -7.14 | 145.63 | 0.2197 | -892.0 | -651.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
