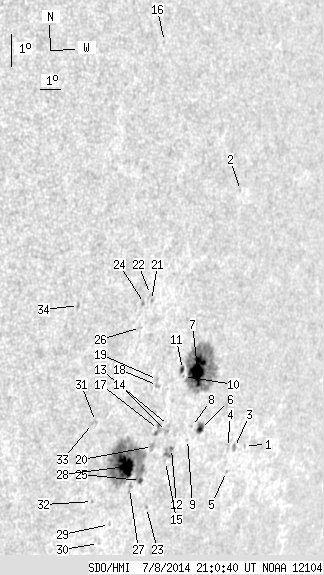

SDO HMI 2014-07-08 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.11 | 306.89 | 44.53 | 256.29 | -12.00 | 268.04 | 51.53 | 252.12 | 0.8068 | 176.1 | -56.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 1.02 | -13.09 | 272.61 | 56.10 | 252.12 | 0.8516 | 344.0 | 318.0 | |
| 0.00 | 0.82 | 0.00 | 0.70 | -5.02 | 270.54 | 54.04 | 261.19 | 0.8181 | 528.0 | 417.7 | |
| 0.00 | 3.09 | 0.00 | 2.86 | -13.12 | 272.06 | 55.55 | 251.94 | 0.8468 | 568.0 | 469.7 | |
| 0.00 | 2.27 | 0.00 | 2.08 | -13.10 | 271.66 | 55.16 | 251.86 | 0.8433 | 451.0 | 482.5 | |
| 0.00 | 1.09 | 0.00 | 1.01 | -13.87 | 271.87 | 55.37 | 251.03 | 0.8468 | 550.0 | 461.1 | |
| 3.36 | 6.72 | 2.94 | 5.88 | -12.44 | 269.99 | 53.49 | 252.18 | 0.8266 | 557.7 | 466.2 | |
| 26.42 | 118.65 | 22.53 | 101.55 | -10.51 | 269.32 | 52.81 | 254.29 | 0.8158 | 893.2 | 169.5 | |
| 0.00 | 0.91 | 0.00 | 0.78 | -12.31 | 269.49 | 52.98 | 252.19 | 0.8215 | 638.0 | 565.3 | |
| 0.00 | 1.09 | 0.00 | 0.94 | -12.72 | 269.40 | 52.89 | 251.68 | 0.8216 | 370.0 | 329.0 | |
| 0.00 | 0.64 | 0.00 | 0.53 | -10.70 | 268.64 | 52.14 | 253.90 | 0.8097 | 649.0 | 612.3 | |
| 1.72 | 3.09 | 1.44 | 2.58 | -10.47 | 268.54 | 52.04 | 254.14 | 0.8081 | 766.8 | 650.1 | |
| 0.64 | 7.90 | 0.54 | 6.71 | -12.96 | 268.64 | 52.14 | 251.17 | 0.8150 | 640.9 | 451.6 | |
| 0.00 | 1.36 | 0.00 | 1.14 | -12.22 | 268.28 | 51.77 | 251.96 | 0.8097 | 531.0 | 459.9 | |
| 0.00 | 2.00 | 0.00 | 1.68 | -12.41 | 268.23 | 51.72 | 251.72 | 0.8096 | 635.0 | 541.5 | |
| 0.00 | 0.73 | 0.00 | 0.62 | -13.37 | 268.46 | 51.95 | 250.64 | 0.8143 | -344.0 | -236.9 | |
| 0.00 | 1.09 | 0.00 | 0.84 | -0.24 | 266.48 | 49.97 | 266.60 | 0.7693 | 512.0 | 352.5 | |
| 0.00 | 5.99 | 0.00 | 4.98 | -12.32 | 267.80 | 51.30 | 251.70 | 0.8052 | 724.0 | 462.9 | |
| 0.00 | 2.09 | 0.00 | 1.71 | -10.91 | 267.39 | 50.89 | 253.29 | 0.7977 | 613.0 | 495.3 | |
| 0.00 | 1.63 | 0.00 | 1.33 | -10.72 | 267.35 | 50.84 | 253.51 | 0.7968 | 537.0 | 369.8 | |
| 0.00 | 4.36 | 0.00 | 3.62 | -12.85 | 267.65 | 51.14 | 251.01 | 0.8051 | 107.0 | -26.3 | |
| 0.00 | 1.09 | 0.00 | 0.86 | -8.22 | 266.55 | 50.04 | 256.41 | 0.7828 | 584.0 | 533.8 | |
| 0.00 | 0.36 | 0.00 | 0.29 | -8.02 | 266.47 | 49.96 | 256.63 | 0.7815 | 548.0 | 641.0 | |
| 0.00 | 1.00 | 0.00 | 0.85 | -14.81 | 267.95 | 51.44 | 248.77 | 0.8133 | -469.0 | -401.5 | |
| 0.00 | 0.91 | 0.00 | 0.71 | -8.29 | 266.23 | 49.72 | 256.23 | 0.7795 | 686.0 | 648.4 | |
| 1.45 | 126.19 | 1.21 | 102.52 | -13.91 | 267.36 | 50.86 | 249.64 | 0.8052 | -571.9 | -438.2 | |
| 0.00 | 0.64 | 0.00 | 0.50 | -9.04 | 266.17 | 49.66 | 255.28 | 0.7806 | 472.0 | 447.3 | |
| 0.00 | 3.18 | 0.00 | 2.62 | -14.14 | 266.88 | 50.38 | 249.21 | 0.8011 | -512.0 | -382.7 | |
| 19.52 | -25.00 | 15.87 | -25.00 | -13.42 | 266.52 | 50.02 | 249.96 | 0.7956 | -962.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.82 | -15.26 | 266.25 | 49.74 | 247.65 | 0.7983 | -465.0 | -423.3 | |
| 0.00 | 0.91 | 0.00 | 0.74 | -15.85 | 265.90 | 49.40 | 246.81 | 0.7967 | -506.0 | -439.2 | |
| 0.00 | 1.82 | 0.00 | 1.41 | -11.91 | 264.64 | 48.14 | 251.22 | 0.7720 | -605.0 | -493.0 | |
| 0.00 | 0.91 | 0.00 | 0.72 | -14.47 | 265.18 | 48.67 | 248.23 | 0.7852 | -469.0 | -359.0 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -11.96 | 264.51 | 48.01 | 251.10 | 0.7708 | -631.0 | -537.0 | |
| 0.00 | 2.00 | 0.00 | 1.48 | -8.20 | 263.15 | 46.64 | 255.51 | 0.7456 | -519.0 | -461.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
