SDO HMI 2014-07-08 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.05 | 0.00 | 12.26 | -23.04 | 199.33 | -17.18 | 148.88 | 0.5270 | 171.4 | 45.1 | |
|
previous
or next observation for the same group /

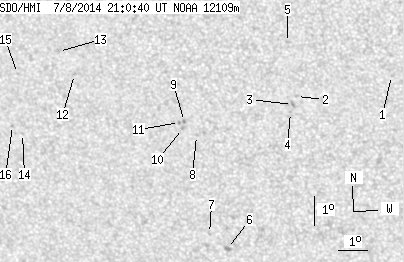

back to the solar disc SDO HMI 2014-07-08 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.30 | -20.96 | 206.44 | -10.06 | 158.59 | 0.4488 | 864.0 | 657.8 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -21.71 | 203.20 | -13.30 | 153.42 | 0.4797 | 945.0 | 762.7 | |
| 0.00 | 2.36 | 0.00 | 1.33 | -21.98 | 203.04 | -13.46 | 153.42 | 0.4844 | 834.0 | 697.9 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -22.26 | 202.95 | -13.56 | 153.53 | 0.4887 | 622.0 | 524.2 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -19.90 | 203.07 | -13.44 | 151.26 | 0.4563 | 719.0 | 476.2 | |
| 0.00 | 3.45 | 0.00 | 2.07 | -27.01 | 200.17 | -16.34 | 153.75 | 0.5688 | -833.0 | -642.3 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -26.49 | 199.60 | -16.90 | 152.52 | 0.5659 | -666.0 | -597.2 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -23.09 | 199.63 | -16.87 | 149.21 | 0.5236 | 621.0 | 546.2 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -22.62 | 199.28 | -17.23 | 148.18 | 0.5205 | 957.0 | 809.9 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -22.86 | 199.18 | -17.33 | 148.29 | 0.5242 | 735.0 | 652.1 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -22.66 | 199.10 | -17.40 | 147.96 | 0.5223 | 832.0 | 727.2 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -21.11 | 195.66 | -20.84 | 141.38 | 0.5338 | -589.0 | -457.4 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -20.35 | 195.22 | -21.29 | 139.83 | 0.5297 | -377.0 | -312.3 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -23.16 | 193.48 | -23.03 | 141.18 | 0.5758 | -600.0 | -522.0 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -21.13 | 193.65 | -22.85 | 138.88 | 0.5529 | -721.0 | -581.8 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -22.90 | 193.17 | -23.34 | 140.49 | 0.5758 | -601.0 | -506.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
