SDO HMI 2014-07-08 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.91 | 205.63 | 46.18 | 163.96 | 9.43 | 164.95 | -51.55 | 80.86 | 0.7843 | -137.6 | -47.6 | |
|
previous
or next observation for the same group /

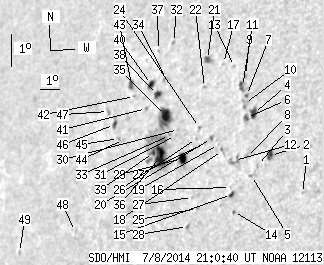

back to the solar disc SDO HMI 2014-07-08 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.58 | 7.84 | 171.03 | -45.47 | 82.62 | 0.7144 | -486.0 | -425.4 | |
| 3.27 | 5.36 | 2.38 | 3.90 | 8.94 | 169.43 | -47.07 | 81.22 | 0.7342 | -827.2 | -592.4 | |
| 0.00 | 1.27 | 0.00 | 0.93 | 8.60 | 168.89 | -47.61 | 81.71 | 0.7403 | -711.0 | -603.4 | |
| 4.36 | 6.72 | 3.23 | 4.99 | 10.18 | 168.42 | -48.08 | 79.62 | 0.7468 | -776.6 | -563.1 | |
| 0.00 | 1.18 | 0.00 | 0.87 | 8.29 | 168.67 | -47.83 | 82.15 | 0.7427 | -643.0 | -559.4 | |
| 1.63 | 3.99 | 1.22 | 2.98 | 10.04 | 168.12 | -48.38 | 79.83 | 0.7501 | -547.6 | -366.3 | |
| 0.54 | 1.72 | 0.41 | 1.29 | 10.72 | 167.98 | -48.52 | 78.95 | 0.7523 | -687.2 | -610.9 | |
| 0.00 | 1.45 | 0.00 | 1.08 | 8.82 | 168.35 | -48.15 | 81.45 | 0.7467 | -665.0 | -603.9 | |
| 0.00 | 1.27 | 0.00 | 0.96 | 11.32 | 167.80 | -48.70 | 78.16 | 0.7549 | -642.0 | -528.8 | |
| 0.00 | 5.54 | 0.00 | 4.15 | 10.47 | 167.94 | -48.56 | 79.29 | 0.7525 | -522.0 | -428.6 | |
| 0.00 | 5.45 | 0.00 | 4.10 | 10.98 | 167.74 | -48.77 | 78.62 | 0.7553 | -767.0 | -562.0 | |
| 0.00 | 5.45 | 0.00 | 4.09 | 8.71 | 167.81 | -48.69 | 81.64 | 0.7528 | -409.0 | -565.8 | |
| 0.00 | 1.00 | 0.00 | 0.76 | 11.58 | 167.22 | -49.28 | 77.90 | 0.7617 | -535.0 | -488.9 | |
| 0.36 | 1.18 | 0.27 | 0.88 | 7.15 | 168.01 | -48.50 | 83.70 | 0.7499 | 427.8 | 421.0 | |
| 1.54 | 2.91 | 1.16 | 2.17 | 7.66 | 167.84 | -48.67 | 83.03 | 0.7520 | -294.1 | -158.0 | |
| 0.00 | 0.64 | 0.00 | 0.48 | 7.88 | 167.76 | -48.75 | 82.75 | 0.7530 | -387.0 | -341.9 | |
| 0.00 | 1.18 | 0.00 | 0.91 | 11.64 | 166.67 | -49.83 | 77.87 | 0.7677 | -446.0 | -339.3 | |
| 0.00 | 2.00 | 0.00 | 1.52 | 8.98 | 167.19 | -49.31 | 81.31 | 0.7599 | -220.0 | -373.3 | |
| 0.00 | 0.91 | 0.00 | 0.69 | 9.16 | 166.97 | -49.53 | 81.10 | 0.7625 | -371.0 | -324.2 | |
| 0.00 | 1.91 | 0.00 | 1.46 | 9.33 | 166.60 | -49.90 | 80.90 | 0.7667 | -463.0 | -374.3 | |
| 2.27 | 5.08 | 1.78 | 3.98 | 11.73 | 165.87 | -50.63 | 77.85 | 0.7765 | -662.2 | -523.8 | |
| 0.00 | 1.36 | 0.00 | 1.06 | 10.87 | 165.93 | -50.57 | 78.96 | 0.7751 | -532.0 | -444.5 | |
| 0.00 | 1.00 | 0.00 | 0.77 | 9.16 | 166.30 | -50.21 | 81.14 | 0.7700 | 435.0 | 355.3 | |
| 0.00 | 1.18 | 0.00 | 0.92 | 9.63 | 165.96 | -50.55 | 80.55 | 0.7740 | -451.0 | -355.7 | |
| 0.00 | 1.18 | 0.00 | 0.91 | 7.16 | 166.30 | -50.20 | 83.74 | 0.7692 | 511.0 | 421.1 | |
| 0.00 | 0.82 | 0.00 | 0.64 | 9.29 | 165.88 | -50.62 | 81.00 | 0.7746 | 679.0 | 604.1 | |
| 0.00 | 0.91 | 0.00 | 0.71 | 7.48 | 166.01 | -50.50 | 83.33 | 0.7725 | 596.0 | 516.1 | |
| 0.00 | 1.72 | 0.00 | 1.34 | 6.59 | 165.90 | -50.61 | 84.49 | 0.7735 | 480.0 | 415.0 | |
| 5.63 | 10.44 | 4.44 | 8.23 | 8.65 | 165.32 | -51.19 | 81.86 | 0.7804 | -594.9 | -348.0 | |
| 0.00 | 1.18 | 0.00 | 0.94 | 9.52 | 164.94 | -51.56 | 80.76 | 0.7849 | 298.0 | 364.8 | |
| 0.00 | 0.54 | 0.00 | 0.43 | 9.33 | 164.83 | -51.67 | 81.01 | 0.7859 | 651.0 | 565.0 | |
| 0.00 | 1.36 | 0.00 | 1.11 | 12.17 | 164.04 | -52.46 | 77.49 | 0.7962 | 526.0 | 448.5 | |
| 0.00 | 0.64 | 0.00 | 0.51 | 9.32 | 164.53 | -51.97 | 81.04 | 0.7891 | 654.0 | 590.7 | |
| 0.00 | 3.81 | 0.00 | 3.11 | 11.02 | 163.99 | -52.51 | 78.93 | 0.7959 | 506.0 | 423.1 | |
| 9.71 | 91.33 | 7.86 | 74.07 | 9.92 | 164.20 | -52.30 | 80.30 | 0.7929 | 899.8 | 71.6 | |
| 16.07 | -35.00 | 12.99 | -35.00 | 8.66 | 164.21 | -52.29 | 81.90 | 0.7922 | -861.2 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.75 | 11.88 | 163.34 | -53.16 | 77.91 | 0.8031 | 512.0 | 447.8 | |
| 3.27 | 4.99 | 2.68 | 4.09 | 10.54 | 163.65 | -52.86 | 79.56 | 0.7991 | 744.6 | 536.5 | |
| 1.54 | -35.00 | 1.26 | -35.00 | 8.76 | 163.84 | -52.67 | 81.78 | 0.7962 | -479.4 | 999999 | |
| 3.00 | 5.27 | 2.48 | 4.36 | 10.83 | 163.26 | -53.24 | 79.23 | 0.8032 | 510.2 | 345.7 | |
| 0.00 | 1.18 | 0.00 | 0.98 | 10.08 | 163.18 | -53.32 | 80.16 | 0.8036 | -338.0 | -268.5 | |
| 0.00 | 1.27 | 0.00 | 1.07 | 10.42 | 162.47 | -54.03 | 79.79 | 0.8110 | -285.0 | -151.1 | |
| 2.72 | 4.63 | 2.31 | 3.93 | 10.77 | 162.22 | -54.29 | 79.37 | 0.8137 | 605.7 | 417.0 | |
| 0.00 | 1.00 | 0.00 | 0.85 | 9.08 | 162.20 | -54.30 | 81.46 | 0.8131 | 546.0 | 448.5 | |
| 0.00 | 1.63 | 0.00 | 1.39 | 9.10 | 161.93 | -54.57 | 81.45 | 0.8158 | 603.0 | 568.8 | |
| 2.00 | 4.99 | 1.71 | 4.29 | 9.51 | 161.62 | -54.88 | 80.95 | 0.8190 | 550.5 | 434.6 | |
| 0.00 | 2.81 | 0.00 | 2.44 | 9.89 | 161.20 | -55.30 | 80.51 | 0.8233 | -580.0 | -481.1 | |
| 0.00 | 1.09 | 0.00 | 0.97 | 6.15 | 160.15 | -56.35 | 85.06 | 0.8328 | -420.0 | -282.8 | |
| 0.00 | 1.36 | 0.00 | 1.32 | 5.34 | 157.03 | -59.47 | 85.98 | 0.8618 | 416.0 | 342.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
