SDO HMI 2014-07-08 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.10 | 446.23 | 45.77 | 310.10 | -19.19 | 254.80 | 38.85 | 237.63 | 0.7035 | 868.6 | 344.1 | |
|
previous
or next observation for the same group /

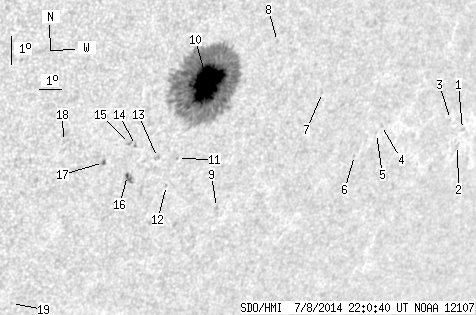

back to the solar disc SDO HMI 2014-07-08 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.77 | -21.18 | 267.21 | 51.26 | 241.30 | 0.8313 | 463.0 | 380.9 | |
| 0.00 | 1.63 | 0.00 | 1.46 | -21.72 | 267.21 | 51.26 | 240.70 | 0.8331 | 495.0 | 424.8 | |
| 0.00 | 1.09 | 0.00 | 0.95 | -20.81 | 266.41 | 50.46 | 241.41 | 0.8231 | 430.0 | 342.5 | |
| 0.00 | 1.27 | 0.00 | 1.03 | -20.83 | 262.99 | 47.04 | 239.94 | 0.7925 | 530.0 | 466.8 | |
| 0.00 | 1.00 | 0.00 | 0.81 | -21.09 | 262.85 | 46.90 | 239.57 | 0.7923 | 494.0 | 408.5 | |
| 0.00 | 0.91 | 0.00 | 0.73 | -21.79 | 262.09 | 46.14 | 238.41 | 0.7883 | 426.0 | 326.0 | |
| 0.00 | 0.82 | 0.00 | 0.62 | -19.58 | 259.78 | 43.83 | 239.90 | 0.7564 | -558.0 | -397.3 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -17.79 | 257.25 | 41.30 | 240.82 | 0.7220 | -405.0 | -377.2 | |
| 0.00 | 1.63 | 0.00 | 1.20 | -23.27 | 256.39 | 40.44 | 233.60 | 0.7426 | -622.0 | -494.7 | |
| 64.37 | 418.17 | 44.59 | 289.37 | -19.02 | 254.64 | 38.69 | 237.77 | 0.7010 | 1214.2 | 367.7 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -21.52 | 254.13 | 38.18 | 234.31 | 0.7104 | 330.0 | 274.7 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -22.42 | 253.96 | 38.01 | 233.09 | 0.7142 | -582.0 | -503.2 | |
| 0.00 | 2.54 | 0.00 | 1.76 | -21.45 | 253.28 | 37.33 | 233.83 | 0.7014 | 457.0 | 425.7 | |
| 0.00 | 1.72 | 0.00 | 1.17 | -21.01 | 252.25 | 36.30 | 233.69 | 0.6881 | 755.0 | 591.7 | |
| 0.00 | 1.54 | 0.00 | 1.05 | -20.93 | 251.98 | 36.03 | 233.60 | 0.6849 | 682.0 | 553.2 | |
| 1.09 | 5.45 | 0.75 | 3.75 | -22.01 | 252.21 | 36.26 | 232.41 | 0.6943 | -693.3 | -520.7 | |
| 0.64 | 1.82 | 0.43 | 1.22 | -21.53 | 251.10 | 35.15 | 232.22 | 0.6799 | -616.6 | -488.0 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -20.76 | 249.31 | 33.36 | 231.85 | 0.6562 | -569.0 | -488.9 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -26.27 | 248.81 | 32.86 | 224.79 | 0.6930 | -541.0 | -476.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
