SDO HMI 2014-07-08 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.25 | 0.00 | 9.95 | -23.05 | 200.46 | -15.49 | 151.40 | 0.5142 | 195.2 | 100.1 | |
|
previous
or next observation for the same group /

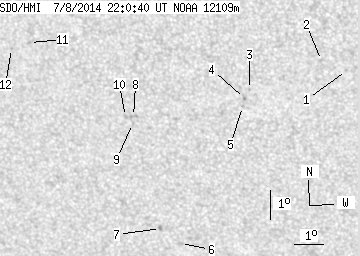

back to the solar disc SDO HMI 2014-07-08 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.60 | -20.98 | 206.51 | -9.43 | 159.83 | 0.4457 | 760.0 | 564.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -20.66 | 205.71 | -10.24 | 157.98 | 0.4455 | 91.0 | 101.9 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -21.66 | 203.23 | -12.72 | 154.38 | 0.4752 | 984.0 | 795.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -21.97 | 203.03 | -12.92 | 154.34 | 0.4807 | 838.0 | 708.4 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -22.24 | 202.94 | -13.01 | 154.44 | 0.4850 | 690.0 | 555.3 | |
| 0.00 | 2.36 | 0.00 | 1.42 | -27.03 | 200.22 | -15.73 | 154.60 | 0.5653 | -787.0 | -638.2 | |
| 0.00 | 2.00 | 0.00 | 1.19 | -26.51 | 199.58 | -16.37 | 153.27 | 0.5628 | -833.0 | -688.8 | |
| 0.00 | 3.00 | 0.00 | 1.73 | -22.64 | 199.17 | -16.78 | 148.87 | 0.5173 | 778.0 | 724.2 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -22.88 | 199.11 | -16.84 | 149.03 | 0.5208 | 704.0 | 552.6 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -22.65 | 198.89 | -17.05 | 148.46 | 0.5195 | 626.0 | 555.4 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -20.22 | 195.90 | -20.05 | 141.31 | 0.5166 | -797.0 | -573.0 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -20.43 | 195.25 | -20.70 | 140.71 | 0.5252 | -711.0 | -551.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
