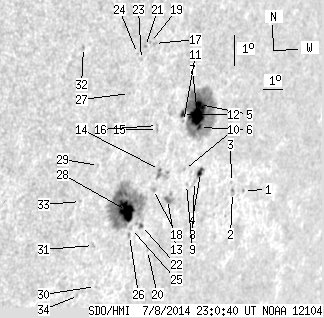

SDO HMI 2014-07-08 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.93 | 288.94 | 46.32 | 247.29 | -11.95 | 267.98 | 52.59 | 252.48 | 0.8170 | 112.3 | -51.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.97 | -13.11 | 272.67 | 57.27 | 252.37 | 0.8617 | 350.0 | 294.0 | |
| 0.00 | 2.27 | 0.00 | 2.16 | -13.14 | 272.04 | 56.65 | 252.18 | 0.8564 | 613.0 | 456.4 | |
| 0.00 | 0.91 | 0.00 | 0.86 | -12.82 | 271.87 | 56.47 | 252.51 | 0.8543 | 489.0 | 399.6 | |
| 3.36 | 5.36 | 3.02 | 4.82 | -12.40 | 270.01 | 54.61 | 252.52 | 0.8369 | 479.9 | 382.6 | |
| 5.08 | 123.75 | 4.45 | 108.68 | -10.22 | 269.35 | 53.95 | 254.91 | 0.8262 | 789.3 | 180.6 | |
| 1.09 | -5.00 | 0.96 | -5.00 | -10.95 | 269.54 | 54.14 | 254.10 | 0.8295 | 542.2 | 999999 | |
| 18.52 | -5.00 | 16.22 | -5.00 | -10.57 | 269.33 | 53.94 | 254.50 | 0.8268 | 823.2 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.57 | -12.67 | 269.77 | 54.37 | 252.14 | 0.8353 | 422.0 | 353.7 | |
| 0.00 | 1.09 | 0.00 | 0.97 | -12.74 | 269.36 | 53.97 | 251.95 | 0.8317 | 427.0 | 373.8 | |
| 0.00 | 0.91 | 0.00 | 0.80 | -12.25 | 269.11 | 53.71 | 252.45 | 0.8283 | 501.0 | 431.3 | |
| 0.00 | 1.00 | 0.00 | 0.86 | -10.72 | 268.63 | 53.24 | 254.15 | 0.8204 | 670.0 | 569.1 | |
| 1.73 | -5.00 | 1.48 | -5.00 | -10.49 | 268.53 | 53.13 | 254.39 | 0.8189 | 696.1 | 999999 | |
| 1.45 | 6.54 | 1.27 | 5.71 | -13.17 | 268.49 | 53.09 | 251.20 | 0.8246 | 424.6 | 357.1 | |
| 0.36 | 8.08 | 0.31 | 6.92 | -12.18 | 267.78 | 52.39 | 252.17 | 0.8155 | 614.5 | 447.3 | |
| 0.00 | 1.54 | 0.00 | 1.29 | -10.90 | 267.34 | 51.95 | 253.59 | 0.8083 | 617.0 | 488.2 | |
| 0.00 | 0.64 | 0.00 | 0.53 | -10.77 | 267.31 | 51.92 | 253.73 | 0.8077 | 559.0 | 432.9 | |
| 0.00 | 1.54 | 0.00 | 1.26 | -8.18 | 266.62 | 51.22 | 256.73 | 0.7950 | 686.0 | 579.8 | |
| 0.00 | 2.00 | 0.00 | 1.70 | -12.81 | 267.65 | 52.26 | 251.39 | 0.8158 | 58.0 | 62.1 | |
| 0.00 | 0.91 | 0.00 | 0.73 | -8.13 | 266.41 | 51.01 | 256.74 | 0.7928 | 673.0 | 575.0 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -14.76 | 267.97 | 52.57 | 249.17 | 0.8238 | -309.0 | -312.3 | |
| 0.00 | 1.18 | 0.00 | 0.95 | -8.25 | 266.19 | 50.79 | 256.54 | 0.7907 | 672.0 | 604.0 | |
| 0.82 | 118.49 | 0.70 | 98.50 | -13.94 | 267.38 | 51.99 | 249.96 | 0.8161 | -538.8 | -428.3 | |
| 0.00 | 0.91 | 0.00 | 0.73 | -8.65 | 266.06 | 50.67 | 256.02 | 0.7902 | 383.0 | 381.4 | |
| 0.00 | 0.36 | 0.00 | 0.29 | -8.45 | 265.83 | 50.43 | 256.20 | 0.7874 | 353.0 | 459.8 | |
| 0.00 | 0.82 | 0.00 | 0.69 | -14.00 | 266.90 | 51.50 | 249.73 | 0.8117 | -538.0 | -490.9 | |
| 0.00 | 2.09 | 0.00 | 1.76 | -14.23 | 266.86 | 51.47 | 249.45 | 0.8120 | -522.0 | -312.7 | |
| 0.00 | 0.73 | 0.00 | 0.58 | -9.69 | 265.68 | 50.28 | 254.62 | 0.7886 | 475.0 | 432.2 | |
| 21.52 | -22.00 | 17.91 | -22.00 | -13.41 | 266.46 | 51.07 | 250.30 | 0.8059 | -904.8 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.51 | -11.89 | 264.68 | 49.28 | 251.59 | 0.7839 | -576.0 | -507.6 | |
| 0.00 | 0.91 | 0.00 | 0.76 | -15.80 | 265.67 | 50.28 | 247.19 | 0.8051 | -278.0 | -394.4 | |
| 0.00 | 1.45 | 0.00 | 1.18 | -14.46 | 265.14 | 49.74 | 248.61 | 0.7959 | -513.0 | -484.8 | |
| 0.00 | 1.27 | 0.00 | 0.96 | -8.13 | 263.22 | 47.83 | 255.92 | 0.7586 | -612.0 | -502.4 | |
| 0.00 | 1.00 | 0.00 | 0.79 | -13.00 | 264.10 | 48.70 | 250.03 | 0.7811 | -666.0 | -555.8 | |
| 0.00 | 0.64 | 0.00 | 0.52 | -16.05 | 264.92 | 49.52 | 246.62 | 0.7986 | -442.0 | -356.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
