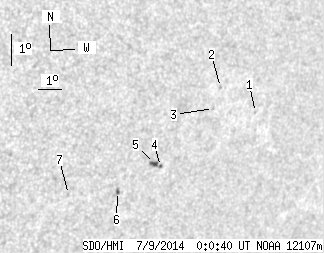

SDO HMI 2014-07-09 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.81 | 13.44 | 2.66 | 9.42 | -14.17 | 256.50 | 41.66 | 245.64 | 0.7096 | 388.6 | 157.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.68 | -12.82 | 260.59 | 45.75 | 249.20 | 0.7494 | 564.0 | 432.3 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -11.94 | 258.85 | 44.01 | 249.66 | 0.7272 | 733.0 | 569.3 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -12.60 | 258.68 | 43.84 | 248.73 | 0.7277 | 551.0 | 483.1 | |
| 0.54 | 6.17 | 0.38 | 4.34 | -14.36 | 256.80 | 41.96 | 245.59 | 0.7136 | 534.2 | 552.6 | |
| 2.45 | -4.00 | 1.72 | -4.00 | -14.25 | 256.52 | 41.68 | 245.60 | 0.7100 | 768.2 | 999999 | |
| 0.82 | 3.00 | 0.56 | 2.07 | -15.08 | 255.16 | 40.32 | 243.81 | 0.6985 | -660.7 | -532.0 | |
| 0.00 | 1.54 | 0.00 | 1.03 | -15.09 | 253.16 | 38.31 | 242.71 | 0.6758 | -560.0 | -341.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
