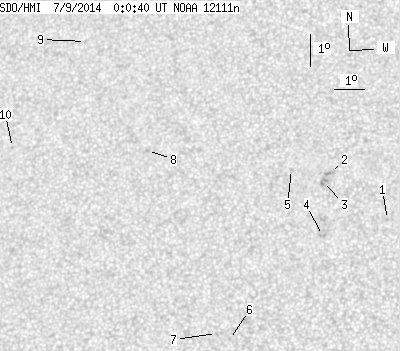

SDO HMI 2014-07-09 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.06 | 0.00 | 10.12 | 17.22 | 198.67 | -16.17 | 48.10 | 0.3585 | -326.0 | -481.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.71 | 16.58 | 202.47 | -12.37 | 42.48 | 0.3054 | -632.0 | -549.9 | |
| 0.00 | 3.81 | 0.00 | 2.01 | 18.00 | 200.50 | -14.35 | 43.45 | 0.3442 | -898.0 | -768.5 | |
| 0.00 | 4.36 | 0.00 | 2.30 | 17.74 | 200.28 | -14.56 | 44.39 | 0.3437 | -755.0 | -851.5 | |
| 0.00 | 2.63 | 0.00 | 1.38 | 16.05 | 200.38 | -14.46 | 48.03 | 0.3241 | -843.0 | -710.3 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 18.10 | 199.19 | -15.65 | 45.62 | 0.3603 | -704.0 | -477.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 12.78 | 197.57 | -17.27 | 60.99 | 0.3325 | -763.0 | -609.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 12.96 | 197.14 | -17.71 | 61.08 | 0.3401 | -685.0 | -533.5 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 18.61 | 194.27 | -20.57 | 51.90 | 0.4250 | 820.0 | 688.2 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 22.03 | 191.59 | -23.26 | 48.90 | 0.4876 | 630.0 | 535.7 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 18.60 | 189.55 | -25.29 | 57.01 | 0.4847 | 570.0 | 453.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
